Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3277 |

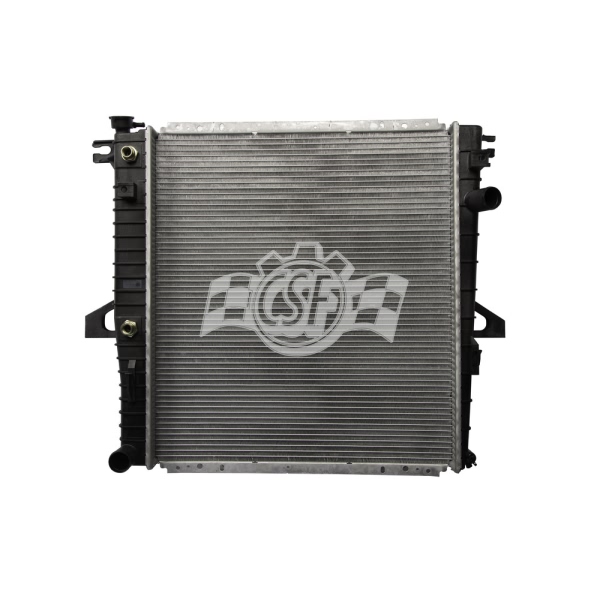

| Part Description | Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 7 |
| Box Length (in) | 33 |
| Box Weight (lbs) | 17 |
| Box Width (in) | 28 |
| Core Length | 20 11/16 |
| Core Material | Aluminum |
| Core Thickness | 15/16 |
| Core Width | 23 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 23 5/8 |
| Inlet Width (in) | 2 3/4 |
| No. Of Rows | 1 |
| UPC | 710353032770 |
| OE Part Number | 2173, 6L5Z 8005 DA, F87H 8005 FA, 1L5H 8005 NA, 1L5Z 8005 NA, ZZP2-15-200 B, 1F91-15-200, 5L54 8005 DA, XL2H 8005 BA, XL2H 8005 BABX, CU2310, 6L54 8005 DB, XL2H 8005 LA, 5L5Z 8005 A, F87Z 8005 FA, XL2Z 8005 LA, 5L54 8005 CA, ZZP1-15-200 B, 8012173, 6L54 8 |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Length(in) | 23 5/8 |
| Outlet Width | 2 3/4 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1998-2001 Ford Explorer | All Trims | 6 Cyl 4.0L |
| 2003-2005 Ford Explorer | All Trims | 6 Cyl 4.0L |
| 2001-2003 Ford Explorer Sport | All Trims | 6 Cyl 4.0L |
| 2001-2005 Ford Explorer Sport Trac | All Trims | 6 Cyl 4.0L |
| 1998-2002 Ford Ranger | All Trims | All Engines |
| 1998-2008 Ford Ranger | All Trims | 6 Cyl 3.0L |
| 1998-2011 Ford Ranger | All Trims | 6 Cyl 4.0L |
| 1998-2008 Mazda B3000 | All Trims | 6 Cyl 3.0L |
| 1998-2008 Mazda B4000 | All Trims | 6 Cyl 4.0L |
| 2001 Mercury Mountaineer | All Trims | 6 Cyl 4.0L |
