Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3299 |

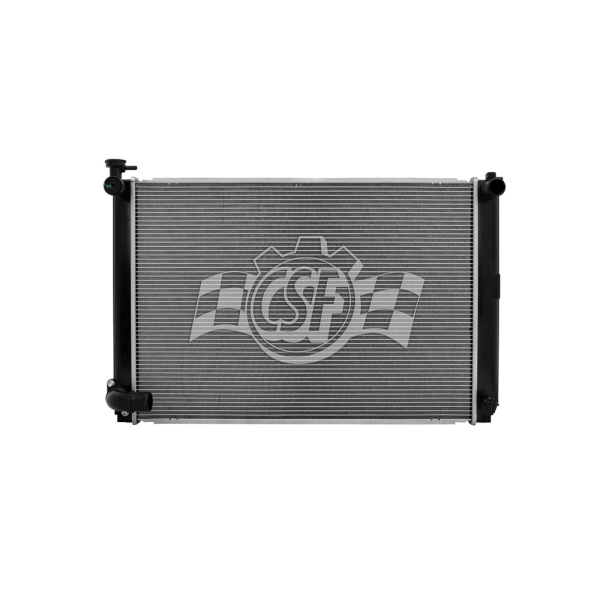

| Part Description | Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Left |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 32 5/8 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 22 9/16 |
| Core Length | 26 9/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 18 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4513 |
| Hazardous Material | No |
| Inlet Length (in) | 19 1/4 |
| Inlet Width (in) | 1 5/16 |
| No. Of Rows | 1 |
| UPC | 710353032992 |
| OE Part Number | 16041-20350, 2929, 8012929, CU2929, 16041-20352 |
| Outlet Length(in) | 19 1/4 |
| Outlet Width | 1 5/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2008 Lexus RX400h | All Trims | 6 Cyl 3.3L |
| 2006-2007 Toyota Highlander | All Trims | 6 Cyl 3.3L |
