Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3342 |

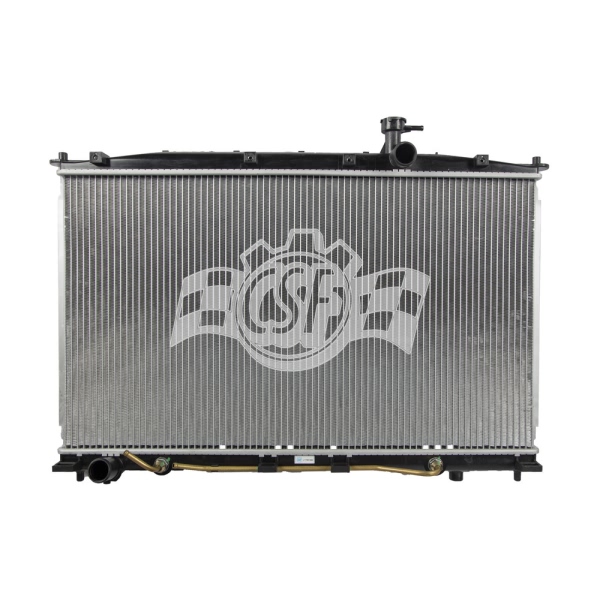

| Part Description | Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 5 1/16 |
| Box Length (in) | 34 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 25 1/8 |
| Core Length | 17 1/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 29 13/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 30 3/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353033425 |
| OE Part Number | 2897, 25310-0W200, 8012997, 2997, CU2897, CU2997, 8012897 |
| Oil Cooler (in) | 17 5/16 (high-effeciency Concentric Type) |
| Outlet Length(in) | 30 3/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2009 Hyundai Santa Fe | All Trims | 6 Cyl 2.7L |
