Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3606 |

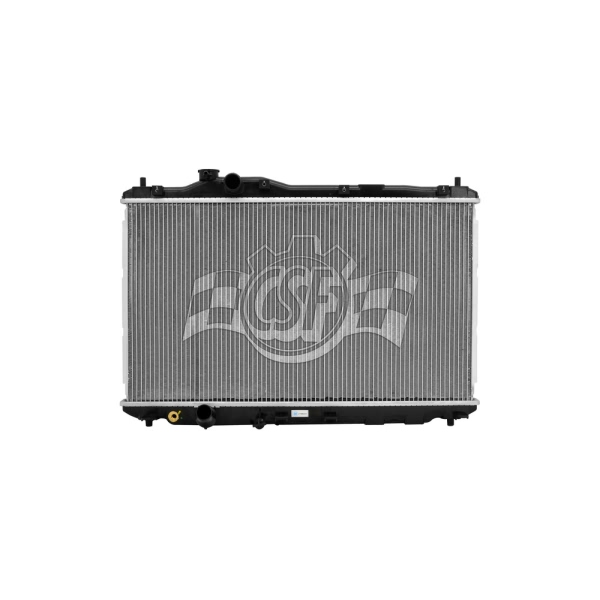

| Part Description | Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Left |
| Box Height (in) | 5 1/2 |
| Box Length (in) | 28 11/16 |
| Box Weight (lbs) | 7 |
| Box Width (in) | 20 13/16 |
| Core Length | 14 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 25 11/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 26 7/16 |
| Inlet Width (in) | 1 1/16 |
| No. Of Rows | 1 |
| UPC | 710353036068 |
| OE Part Number | 13221, 13224, CU13221, 19010 R1B A01, 19010 R1B A51, 13223, 19010 R1B A52, 19010 R1B A02, 8013221 |
| Outlet Length(in) | 26 7/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe. |
| Top Hose Fitting (in) | 1 1/4 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2013-2015 Acura ILX | All Trims | 4 Cyl 2.4L |
| 2012-2015 Honda Civic | All Trims | 4 Cyl 1.8L |
| 2012-2015 Honda Civic | All Trims | 4 Cyl 2.4L |
