Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3655 |

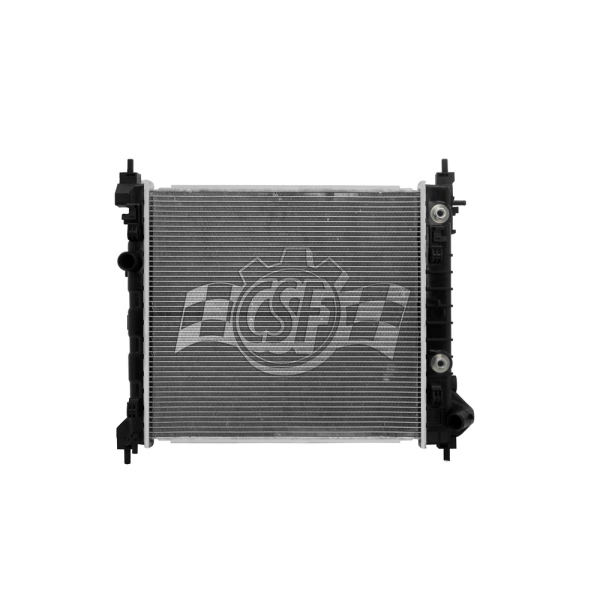

| Part Description | Radiator |
| Bottom Hose Fitting (in) | 1 3/16 Right |
| Box Height (in) | 5 1/2 |
| Box Length (in) | 24 3/4 |
| Box Weight (lbs) | 7 |
| Box Width (in) | 22 9/16 |
| Core Length | 17 13/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 16 5/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 17 1/4 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353036556 |
| OE Part Number | 13342, 95942346, 13343, 95942350, 8013342 |
| Oil Cooler (in) | 9 13/16 (high-efficiency Plate Type) |
| Outlet Length(in) | 17 1/4 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
| Top Hose Fitting (in) | 1 3/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2013-2015 Chevrolet Spark | All Trims | 4 Cyl 1.2L |
