Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3703 |

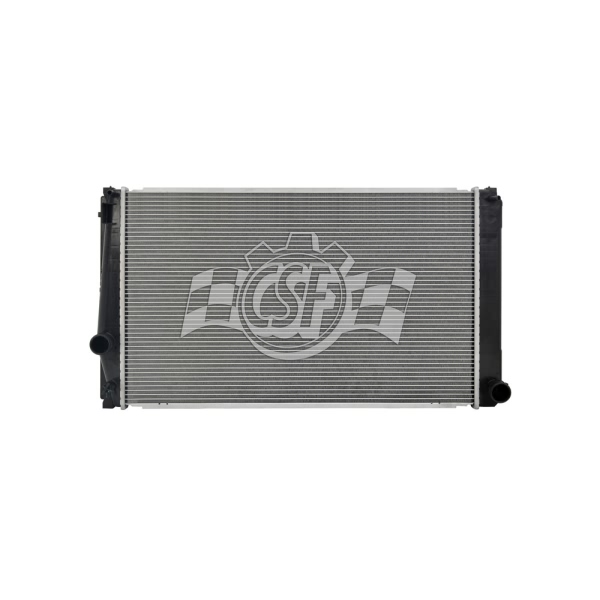

| Part Description | Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 4 7/8 |
| Box Length (in) | 32 7/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 19 3/16 |
| Core Length | 26 3/8 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 15 7/8 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 16 9/16 |
| Inlet Width (in) | 1 3/8 |
| No. Of Rows | 1 |
| UPC | 710353037034 |
| OE Part Number | 13383, 16400-28570, 8012891, 16400-0V030, CU2891, 2891, CU2892, 221-3116, CU2893 |
| Outlet Length(in) | 16 9/16 |
| Outlet Width | 1 3/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2008 Toyota RAV4 | All Trims | 4 Cyl 2.4L |
| 2009-2018 Toyota RAV4 | All Trims | 4 Cyl 2.5L |
