Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3734 |

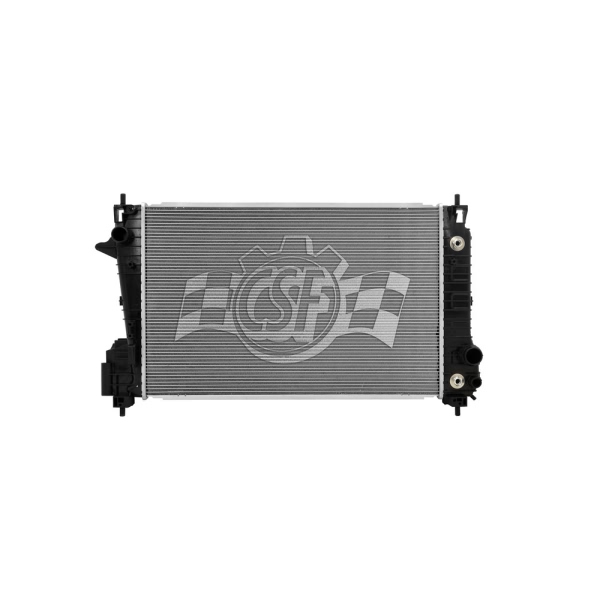

| Part Description | Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 6 7/16 |
| Box Length (in) | 33 3/16 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 20 13/16 |
| Core Length | 24 7/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 15 5/8 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 16 1/16 |
| Inlet Width (in) | 1 3/8 |
| No. Of Rows | 1 |
| UPC | 710353037348 |
| OE Part Number | 13248, 95316049, 95160949, 8013248 |
| Oil Cooler (in) | 11 1/2 (high-efficiency Plate Type) |
| Outlet Length(in) | 16 1/16 |
| Outlet Width | 1 3/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe & quick-connect oil cooler fittings. |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2012-2020 Chevrolet Sonic | All Trims | 4 Cyl 1.4L |
