Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3784 |

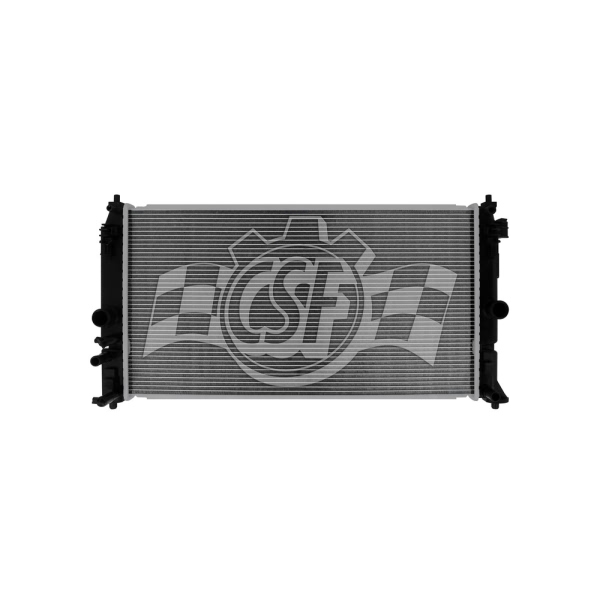

| Part Description | Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Left |
| Box Height (in) | 6 7/8 |
| Box Length (in) | 33 3/16 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 19 3/16 |
| Core Length | 26 9/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 14 5/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 14 15/16 |
| Inlet Width (in) | 1 3/8 |
| No. Of Rows | 1 |
| UPC | 710353037843 |
| OE Part Number | 13591, 16400-37310 |
| Outlet Length(in) | 14 15/16 |
| Outlet Width | 1 3/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 5/16 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2019-2020 Lexus UX250h | All Trims | 4 Cyl 2.0L |
| 2016-2019 Toyota Prius | All Trims | 4 Cyl 1.8L |
| 2017-2020 Toyota Prius Prime | All Trims | 4 Cyl 1.8L |
