Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dayco |
| Part Number | PB1116N |

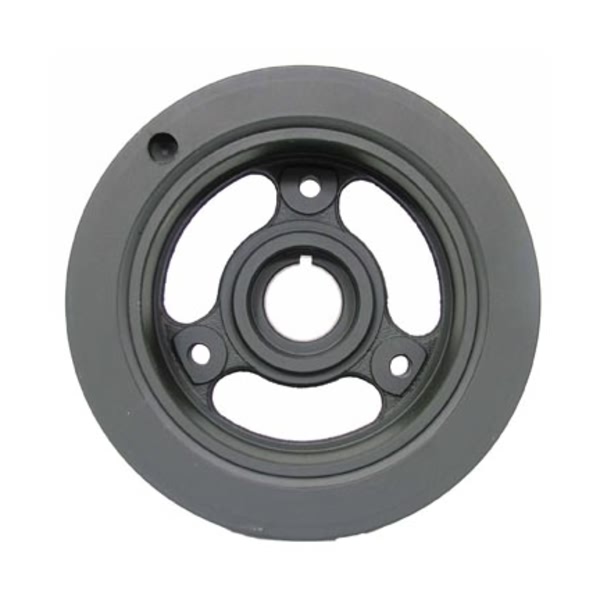

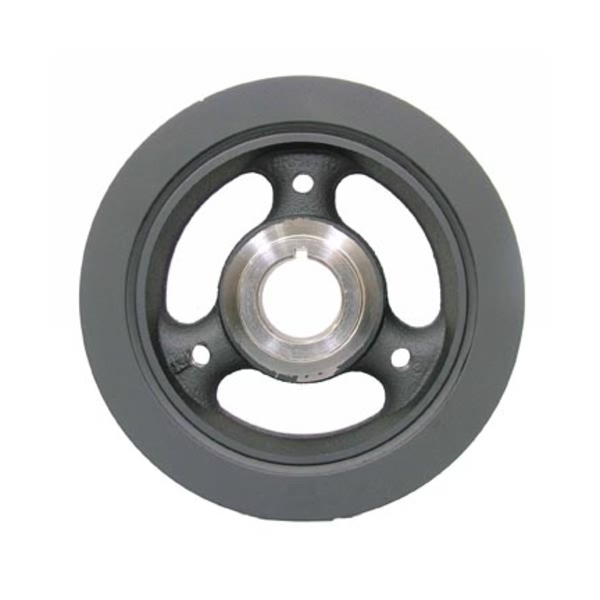

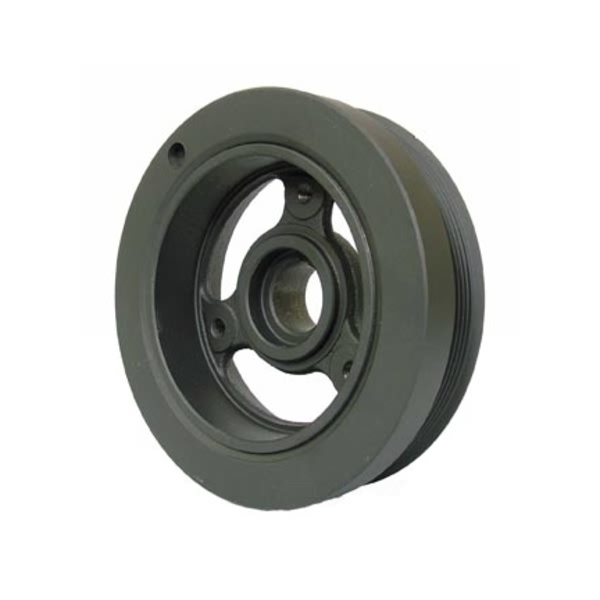

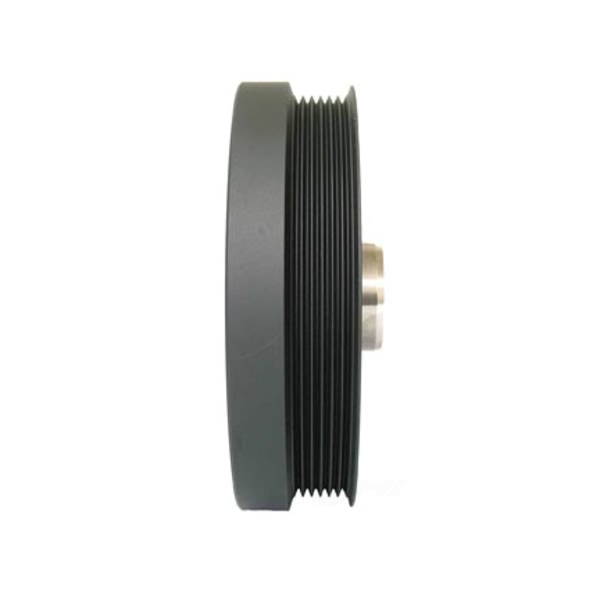

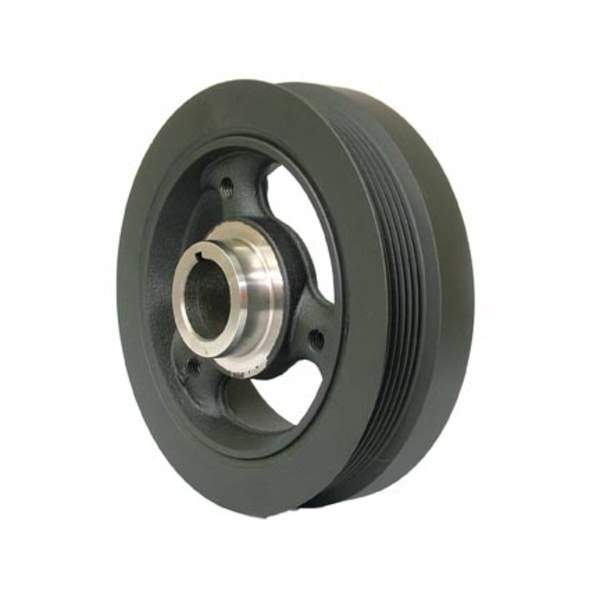

| Part Description | PREMIUM OEM REPL BALANCER, POWERBOND |
| Bolt Hole Quantity | 3 |
| Counterweight Balance | Neutral, no counterweight |
| Crank Bore | 1.249 or 31.71 |
| Crank Trigger/Exciter Plate | No |
| Hardware Included | No |
| Installation Instructions Included | No |
| Nose Outside Diameter | 1.876 or 47.65 |
| Number of Integrated Pulleys | 1 |
| Outer Ring Material | Cast Iron |
| Overall Outside Diameter | 179.00 or 7.048 |
| Overall Width | 2.323 or 59.00 |
| Pulley 1 Number Of Grooves | 6 |
| Pulley 1 Outside Diameter | 168.000 or 6.615 |
| Pulley 1 Type | Serpentine |
| Ring Width | 1.830 or 46.48 |
| Timing Marks | Yes |
| Woodruff Key Included | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2014 Ford E-150 | All Trims | 8 Cyl 5.4L |
| 2007-2014 Ford E-250 | All Trims | 8 Cyl 5.4L |
| 2007-2016 Ford E-350 Super Duty | All Trims | 8 Cyl 5.4L |
| 2005-2014 Ford Expedition | All Trims | All Engines |
| 2006-2008 Ford Expedition | All Trims | 8 Cyl 5.4L |
| 2010-2013 Ford Expedition | All Trims | 8 Cyl 5.4L |
| 2002-2008 Ford F-150 | All Trims | 8 Cyl 4.6L |
| 2004-2010 Ford F-150 | All Trims | 8 Cyl 5.4L |
| 2004 Ford F-150 Heritage | All Trims | 8 Cyl 4.6L |
| 2004 Ford F-150 Heritage | All Trims | 8 Cyl 5.4L |
