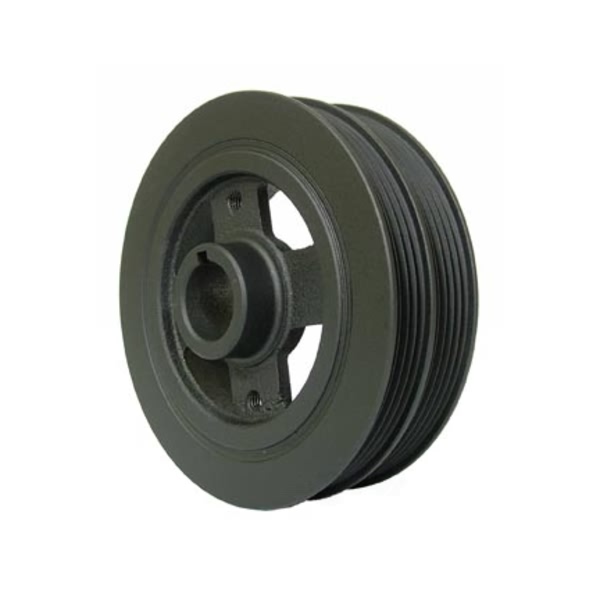

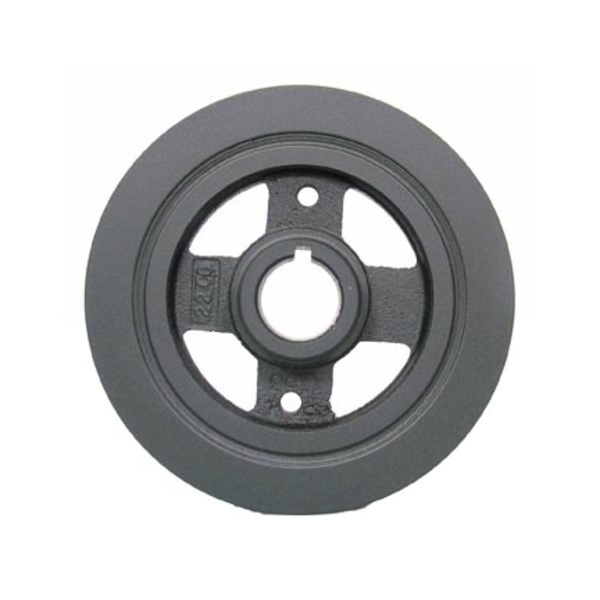

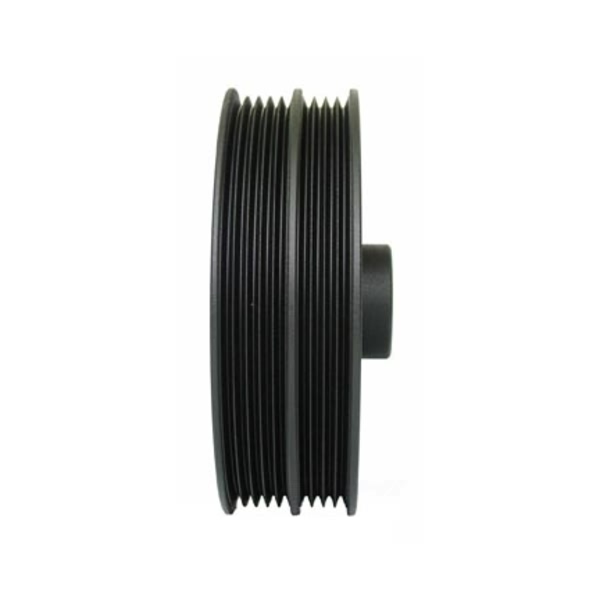

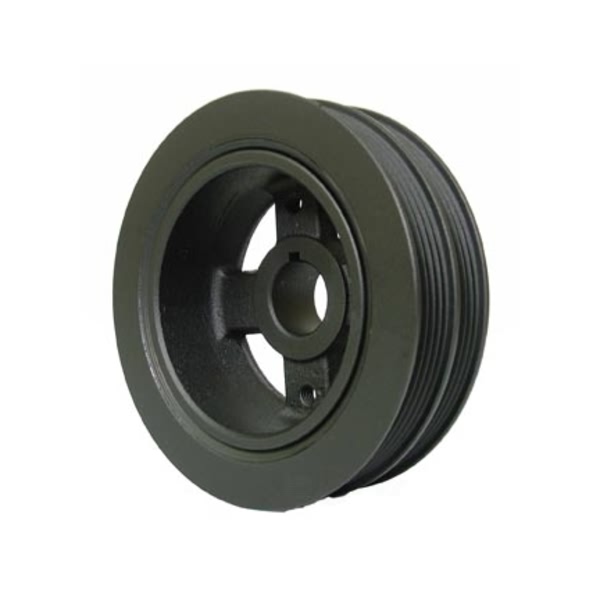

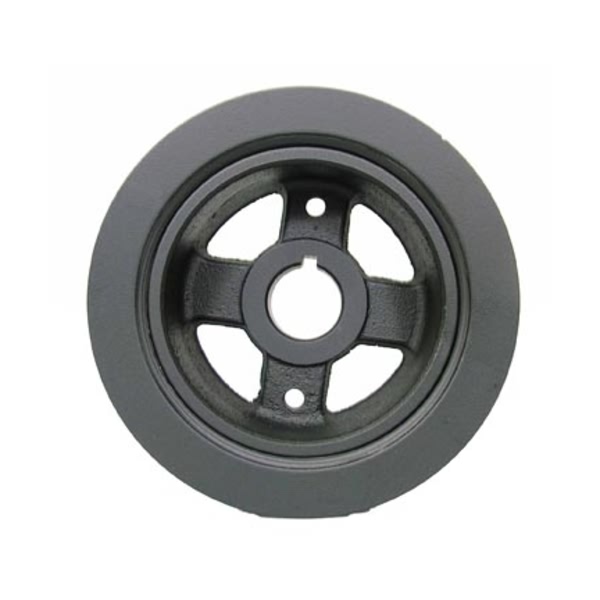

Dayco® PREMIUM OEM REPL BALANCER, POWERBOND PB1417N
Vehicle Specific
Check if it fits by entering your vehicle infoSelect Your Vehicle
- Specifications
- Vehicle Fitment
Specifications
Brand Dayco Part Number PB1417N Part Description PREMIUM OEM REPL BALANCER, POWERBOND Bolt Hole Quantity 2 Counterweight Balance Neutral, no counterweight Crank Bore 0.985 or 25.01 Crank Trigger/Exciter Plate No Hardware Included No Installation Instructions Included No Nose Outside Diameter 1.457 or 37.00 Number of Integrated Pulleys 2 Outer Ring Material Cast Iron Overall Outside Diameter 135.00 or 5.315 Overall Width 1.997 or 50.70 Pulley 1 Number Of Grooves 4 Pulley 1 Outside Diameter 130.000 or 5.119 Pulley 1 Type Serpentine Pulley 2 Number Of Grooves 5 Pulley 2 Outside Diameter 130.000 or 5.119 Pulley 2 Type Serpentine Ring Width 1.589 or 40.34 Timing Marks Yes Woodruff Key Included No Warning: California’s Proposition 65Vehicle Fitment
Year Make Model Trim Engine 1990-1993 Toyota Celica All Trims 4 Cyl 1.6L 1988-1992 Toyota Corolla All Trims All Engines 1989 Toyota Corolla All Trims 4 Cyl 1.6L 1992 Toyota Corolla All Trims 4 Cyl 1.6L
