Check if it fits by entering your vehicle info| Brand | Dayco |
| Part Number | PB1117SS |

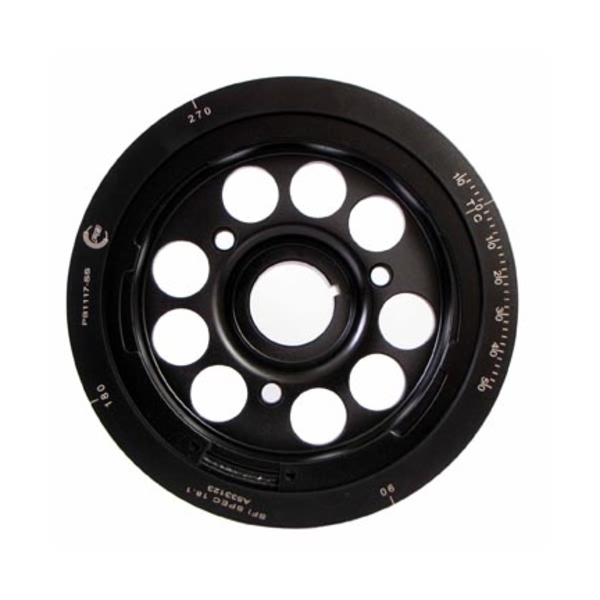

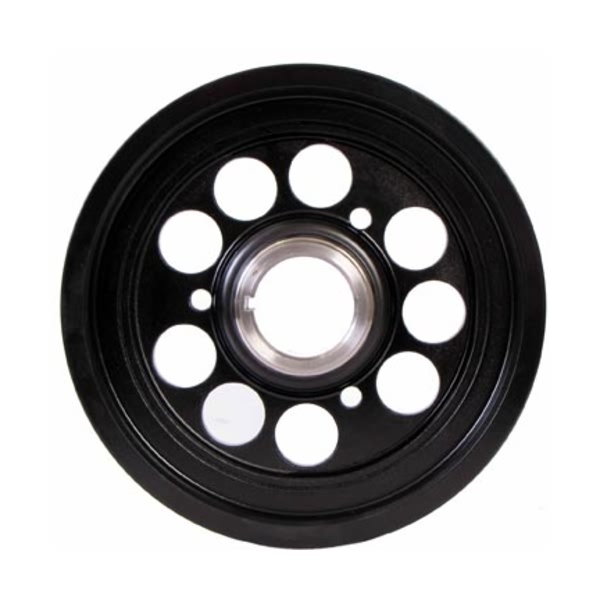

| Part Description | RACE PERFORMANCE BALANCER, POWERBOND |
| Bolt Hole Quantity | 3 |
| Counterweight Balance | Neutral, no counterweight |
| Crank Bore | 1.481 or 37.60 |
| Crank Trigger/Exciter Plate | No |
| Hardware Included | No |
| Installation Instructions Included | Yes |
| Nose Outside Diameter | 2.126 or 54.00 |
| Number of Integrated Pulleys | 2 |
| Outer Ring Material | Steel |
| Overall Outside Diameter | 191 or 7.520 |
| Overall Width | 2.823 or 71.70 |
| Pulley 1 Number Of Grooves | 6 |
| Pulley 1 Outside Diameter | 187.00 or 7.363 |
| Pulley 1 Type | Serpentine |
| Pulley 2 Number Of Grooves | 4 |
| Pulley 2 Outside Diameter | 180.00 or 7.087 |
| Pulley 2 Type | Serpentine |
| Ring Width | 2.421 or 61.49 |
| Timing Marks | Yes |
| Woodruff Key Included | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2005 Cadillac CTS | All Trims | 8 Cyl 5.7L |
| 2006-2007 Cadillac CTS | All Trims | 8 Cyl 6.0L |
| 2011 Chevrolet Caprice | All Trims | All Engines |
| 2012-2017 Chevrolet Caprice | All Trims | 8 Cyl 6.0L |
| 1997-2004 Chevrolet Corvette | All Trims | All Engines |
| 2005-2007 Chevrolet Corvette | All Trims | 8 Cyl 6.0L |
| 2008-2013 Chevrolet Corvette | All Trims | 8 Cyl 6.2L |
| 2014-2015 Chevrolet SS | All Trims | All Engines |
| 2008-2009 Pontiac G8 | All Trims | 8 Cyl 6.0L |
| 2009 Pontiac G8 | All Trims | 8 Cyl 6.2L |
