Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dayco |
| Part Number | 88497 |

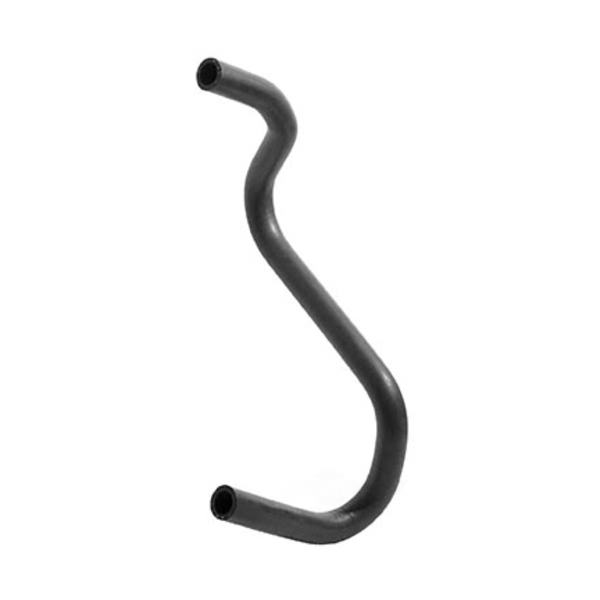

| Part Description | Small Id Hvac Heater Hose |
| Color | Black |
| Contains Heat Shield | N |
| Contains Protective Sleeve | N |
| End 1 Inside Diameter | 3/4 |
| End 1 Outside Diameter | 1 3/32 |
| End 2 Inside Diameter | 3/4 |
| End 2 Outside Diameter | 1 3/32 |
| Hose Type | Single I.D. Hose |
| Material | EPDM |
| SAE Specification | SAE J20R3 Class D-1, SAE J1684 Type EC |
| Trunk Height | 19 |
| UPC | 036687890061 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1996-2005 Chevrolet Astro | All Trims | All Engines |
| 2003-2014 Chevrolet Express 1500 | All Trims | 8 Cyl 5.3L |
| 2003-2005 Chevrolet Express 2500 | All Trims | 8 Cyl 5.3L |
| 2003-2017 Chevrolet Express 2500 | All Trims | 8 Cyl 4.8L |
| 2003-2018 Chevrolet Express 2500 | All Trims | 8 Cyl 6.0L |
| 2003-2018 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L |
| 2006-2017 Chevrolet Express 3500 | All Trims | 8 Cyl 4.8L |
| 1996-2005 GMC Safari | All Trims | All Engines |
| 2003-2014 GMC Savana 1500 | All Trims | 8 Cyl 5.3L |
| 2003-2005 GMC Savana 2500 | All Trims | 8 Cyl 5.3L |
