Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | CS10077 |

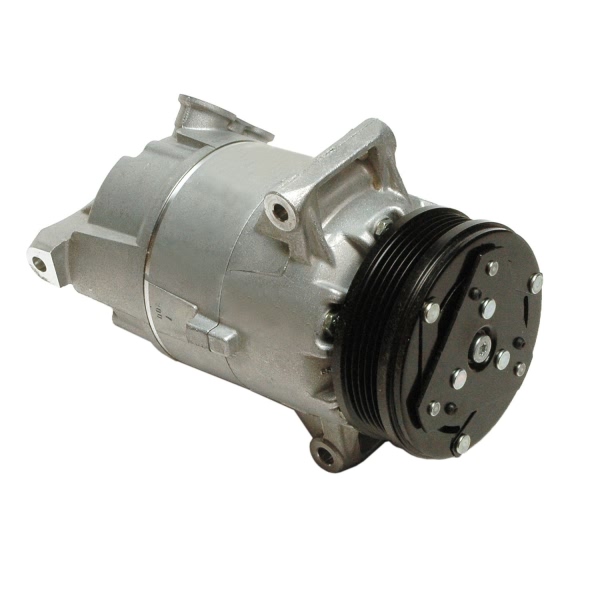

| Part Description | A C Compressor With Clutch |
| Belt Type | Serpentine |
| Clutch Included | Yes |
| Clutch Pulley Diameter | 106.3 mm |
| Coil Clock Position | 3 o'clock |
| Coil Voltage | 12V |
| Compressor Type | CVC |
| Connector Terminal Quantity | 2 |

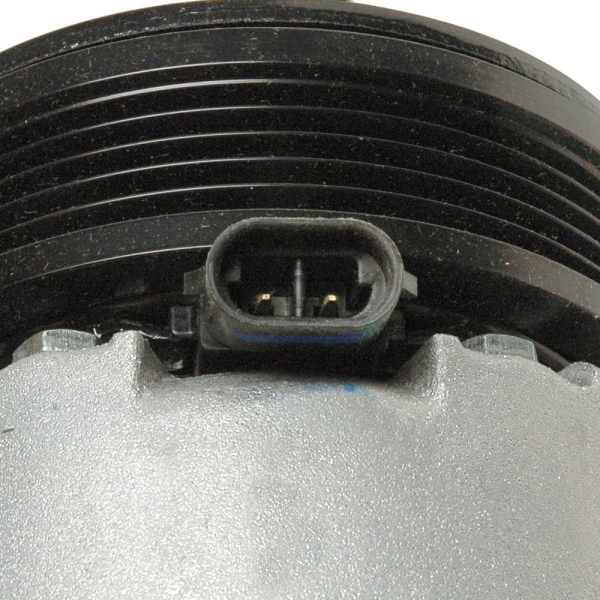

| Connector Type | Female, 2 Blade |
| Length | 215 mm |
| Mounting Type | Bolt-tangent |
| New or Remanufactured | New |
| Oil in Compressor | Yes |
| Oil Type | PAG |

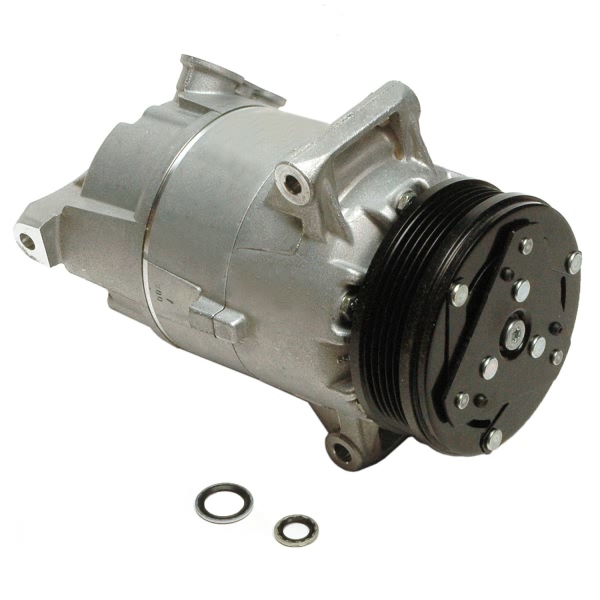

| Package Contents | O-rings/sealing washers included |
| Pulley Groove Quantity | 5 |
| Refrigerant Type | R134A |
| Switch Included | No |
| Switch Service Port | No |
| UPC | 689604163849 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2002 Chevrolet Cavalier | All Trims | 4 Cyl 2.2L |
| 2003-2005 Chevrolet Cavalier | All Trims | All Engines |
| 2005-2007 Chevrolet Cobalt | All Trims | 4 Cyl 2.2L |
| 2006-2007 Chevrolet Cobalt | All Trims | 4 Cyl 2.4L |
| 2008-2010 Chevrolet Cobalt | All Trims | 4 Cyl 2.0L |
| 2006 Chevrolet HHR | All Trims | All Engines |
| 2007 Chevrolet HHR | All Trims | 4 Cyl 2.4L |
| 2008-2010 Chevrolet HHR | All Trims | 4 Cyl 2.0L |
| 2007 Pontiac G5 | All Trims | All Engines |
| 2005-2006 Pontiac Pursuit | All Trims | All Engines |
