Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | CS20009 |

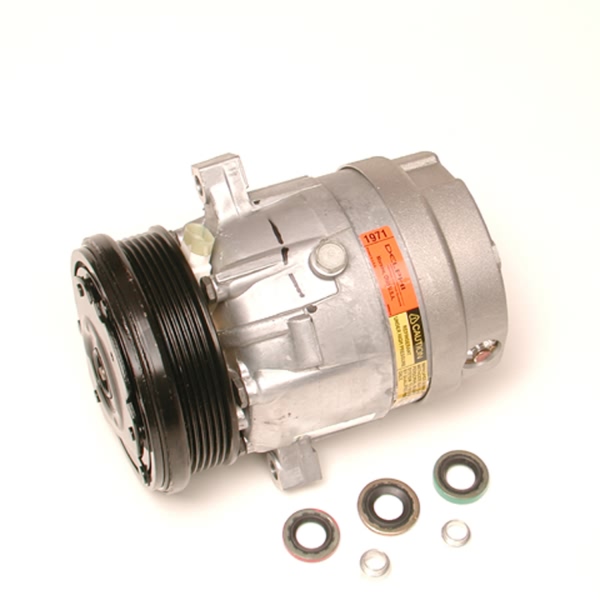

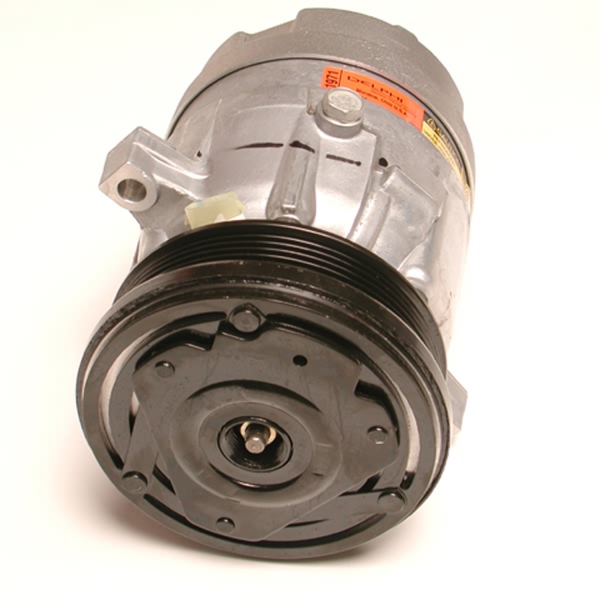

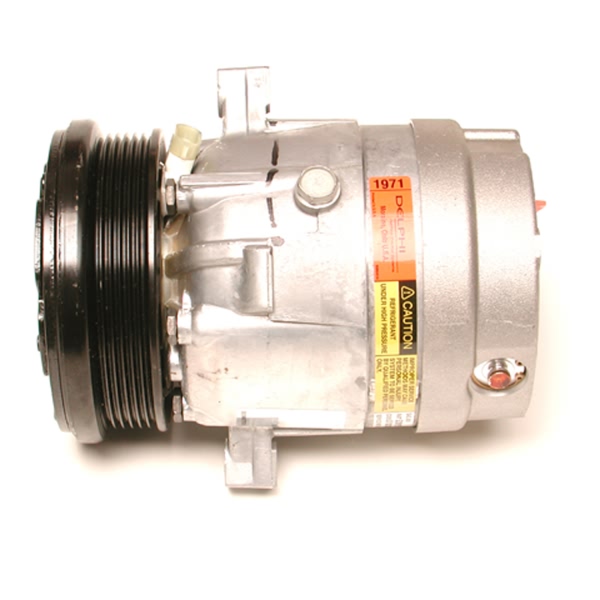

| Part Description | A C Compressor With Clutch |
| Belt Type | Serpentine |
| Clutch Included | Yes |
| Clutch Pulley Diameter | 137.5 mm |
| Coil Clock Position | 2 o'clock |
| Coil Voltage | 12V |
| Compressor Type | V5 |
| Connector Terminal Quantity | 2 |
| Connector Type | Female, 2 Blade |
| Length | 8 5/64 " (205.1 mm) |
| Mounting Type | Bolt-tangent |
| New or Remanufactured | New |
| Oil in Compressor | Yes |
| Oil Type | PAG |
| Package Contents | O-rings/sealing washers included |
| Pulley Groove Quantity | 6 |
| Refrigerant Type | R134A |
| Switch Included | No |
| Switch Service Port | No |
| UPC | 689604083123 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2000-2005 Buick LeSabre | Custom | All Engines |
| 2000-2005 Buick LeSabre | Limited | All Engines |
| 1997-1998 Buick Park Avenue | Base | All Engines |
| 1997-1998 Buick Park Avenue | Ultra | All Engines |
| 1999-2000 Buick Park Avenue | All Trims | All Engines |
| 2001-2005 Buick Park Avenue | Base | All Engines |
| 2001-2005 Buick Park Avenue | Ultra | All Engines |
| 2000-2003 Pontiac Bonneville | All Trims | All Engines |
| 2004-2005 Pontiac Bonneville | SE | 6 Cyl 3.8L |
| 2004-2005 Pontiac Bonneville | SLE | 6 Cyl 3.8L |
