Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | CS20039 |

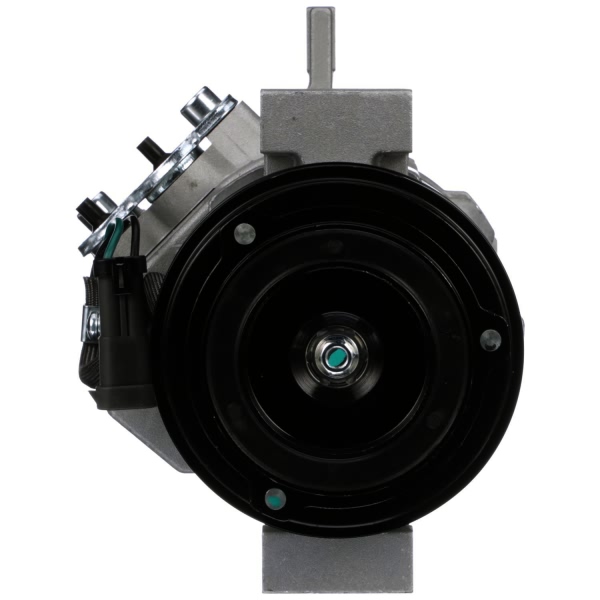

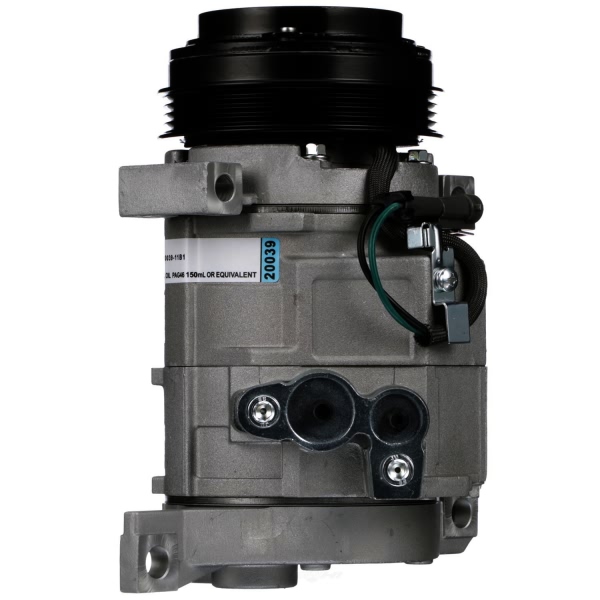

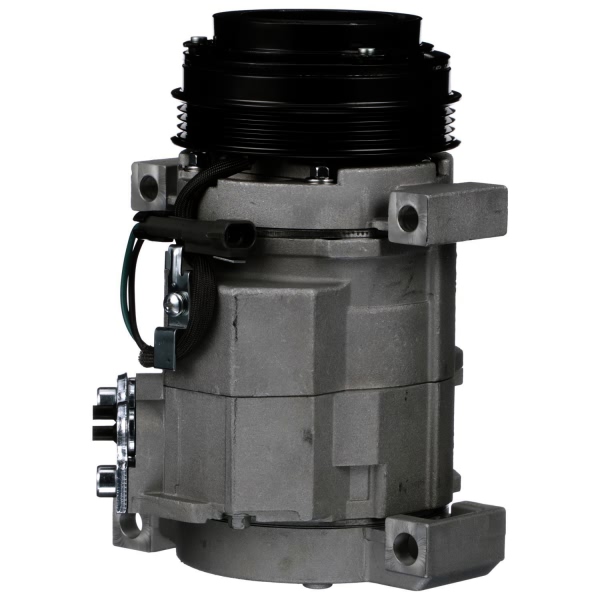

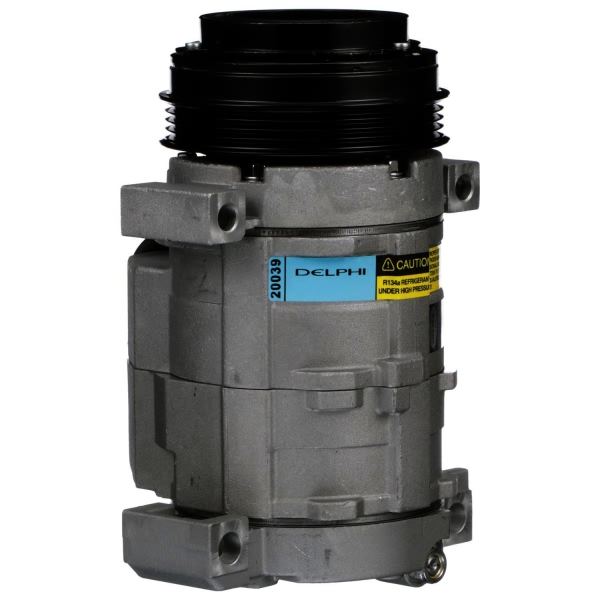

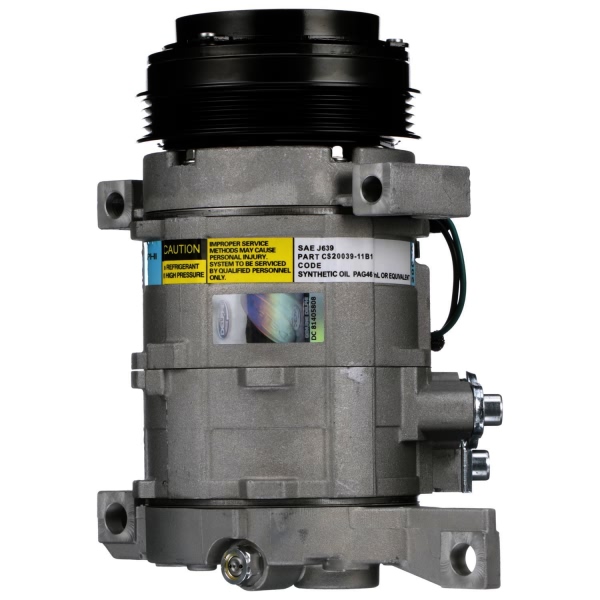

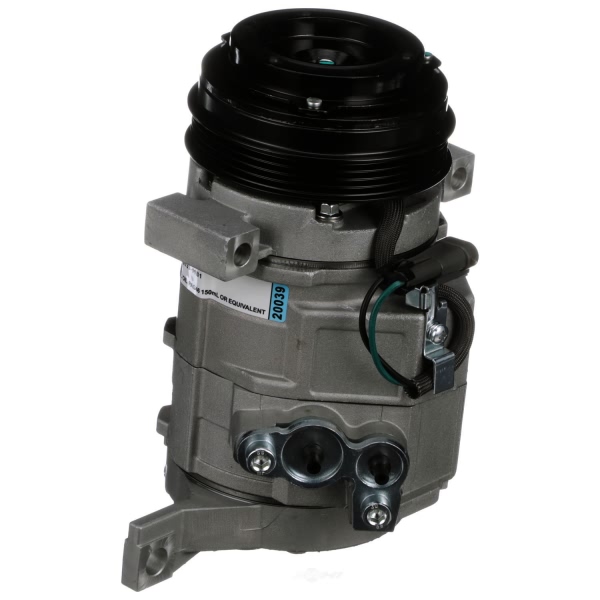

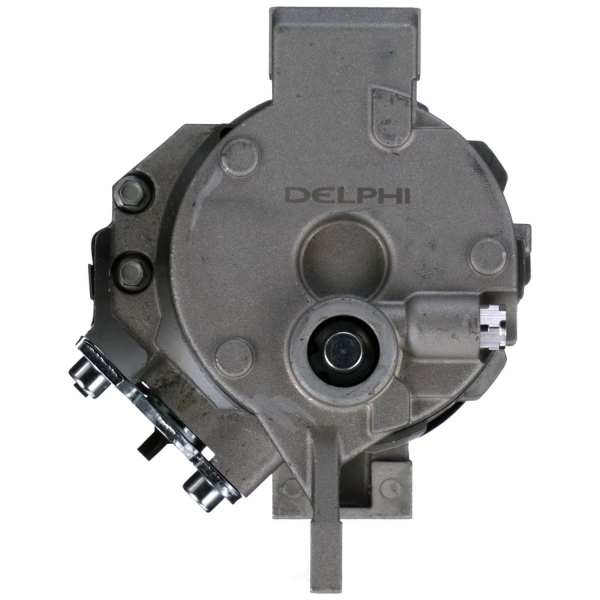

| Part Description | A C Compressor With Clutch |
| Belt Type | Serpentine |
| Clutch Included | Yes |
| Clutch Pulley Diameter | 110.0 mm |
| Coil Clock Position | 9 o'clock |
| Coil Voltage | 12V |
| Compressor Type | 10S |
| Connector Terminal Quantity | 2 |

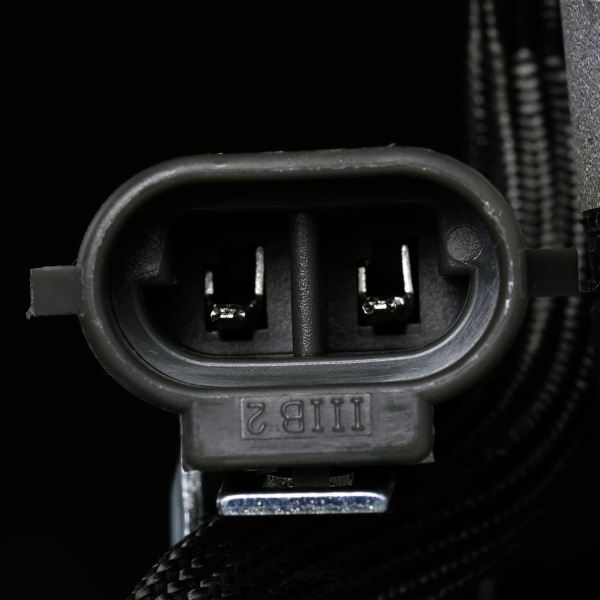

| Connector Type | Female, 2 Blade |
| Length | 225 mm |
| Mounting Type | Bolt-tangent |
| New or Remanufactured | New |
| Oil in Compressor | Yes |
| Oil Type | PAG |
| Package Contents | O-rings/sealing washers included |
| Pulley Groove Quantity | 6 |
| Refrigerant Type | R134A |
| Switch Included | No |
| Switch Service Port | No |
| UPC | 689604189467 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2002-2005 Cadillac Escalade | All Trims | 8 Cyl 5.3L |
| 2002-2006 Cadillac Escalade | All Trims | 8 Cyl 6.0L |
| 2007-2009 Cadillac Escalade | All Trims | 8 Cyl 6.2L |
| 2003-2006 Cadillac Escalade ESV | All Trims | 8 Cyl 6.0L |
| 2007-2009 Cadillac Escalade ESV | All Trims | 8 Cyl 6.2L |
| 2002-2006 Cadillac Escalade EXT | All Trims | 8 Cyl 6.0L |
| 2007-2009 Cadillac Escalade EXT | All Trims | 8 Cyl 6.2L |
| 2007-2009 Chevrolet Avalanche | All Trims | 8 Cyl 6.0L |
| 2007-2010 Chevrolet Avalanche | All Trims | 8 Cyl 5.3L |
| 2002 Chevrolet Avalanche 1500 | Base | 8 Cyl 5.3L |
