Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | CS2018 |

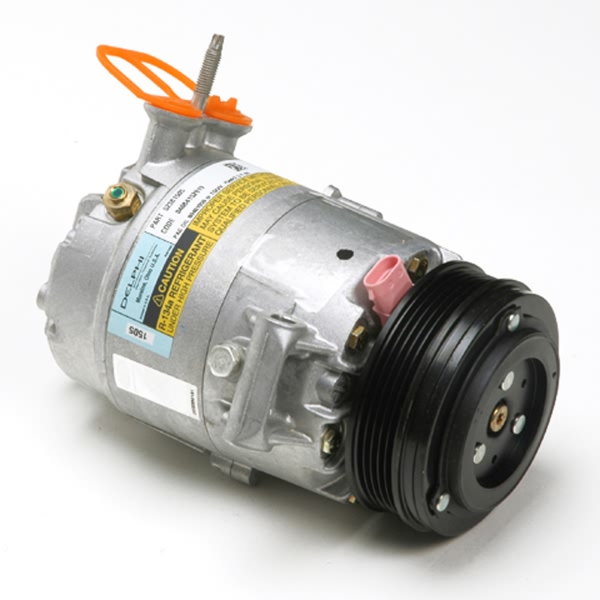

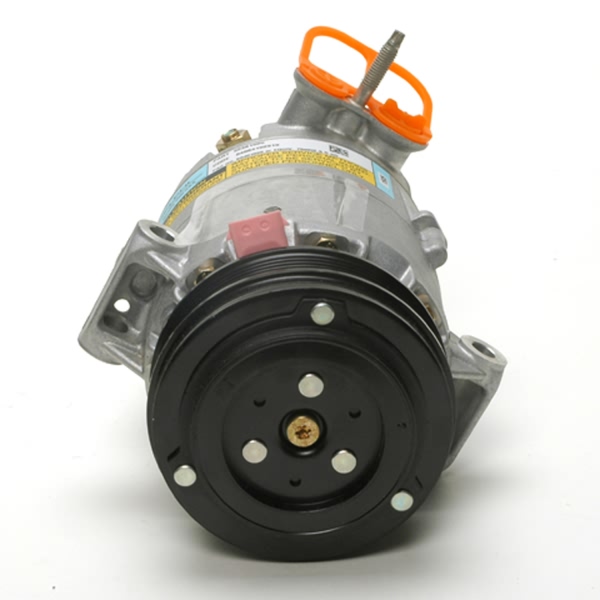

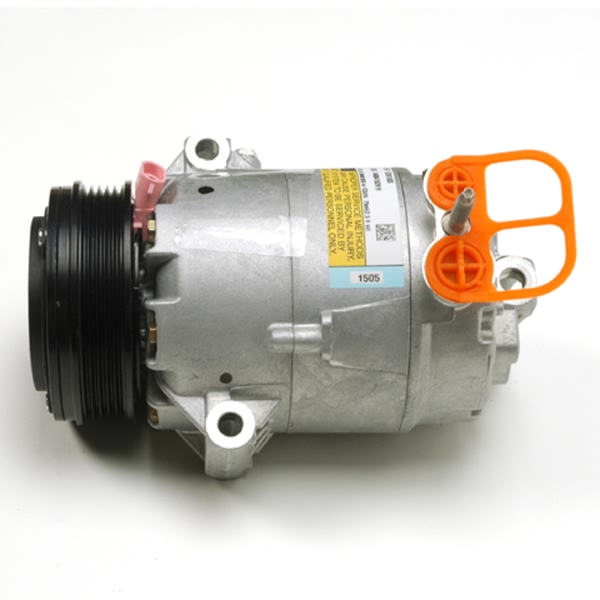

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Coil Clock Position | 2 o'clock |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG |
| Compressor Type | CVC |

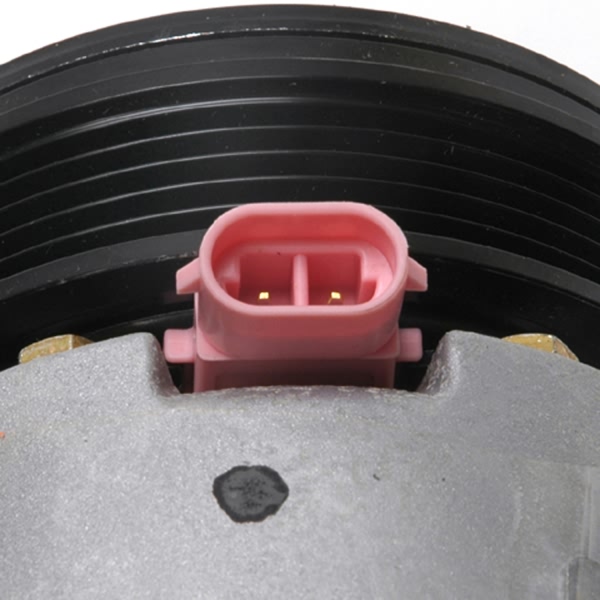

| Connector Gender | Female |
| Connector Shape | Female |
| Length | 9 1/8 " (231.6 mm) |
| Mounting Type | Bolt-tangent |
| OE Type/Exact Fit | OE Type/ Exact Fit |
| Oil in Compressor | Yes |
| Package Contents | A/C Compressor, O-rings/Sealing Washers, Instruction Sheet |
| Pulley Belt Type | Serpentine |
| Pulley Groove Quantity | 5 |
| Pulley Outside Diameter | 111.4 |
| Refrigerant Type | R134A |
| Switch Included | No |
| Switch Service Port | No |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| UPC | 689604082102 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2006 Cadillac XLR | All Trims | 8 Cyl 4.6L |
| 2007-2008 Cadillac XLR | Base | 8 Cyl 4.6L |
| 2008-2009 Cadillac XLR | Platinum | 8 Cyl 4.6L |
