Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | HM10036 |

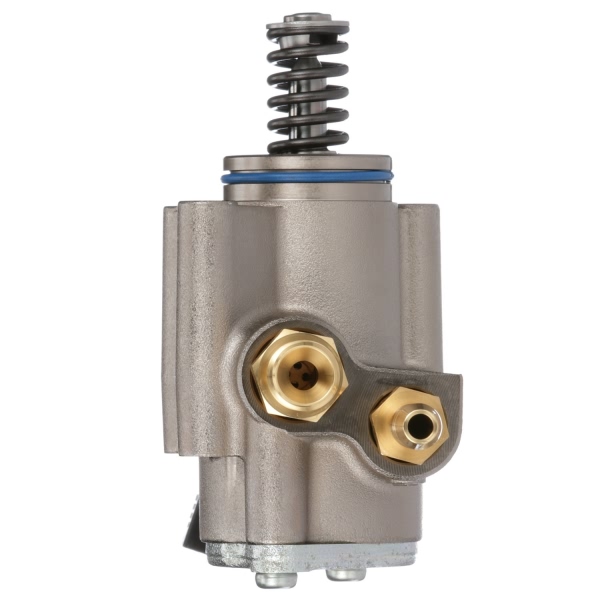

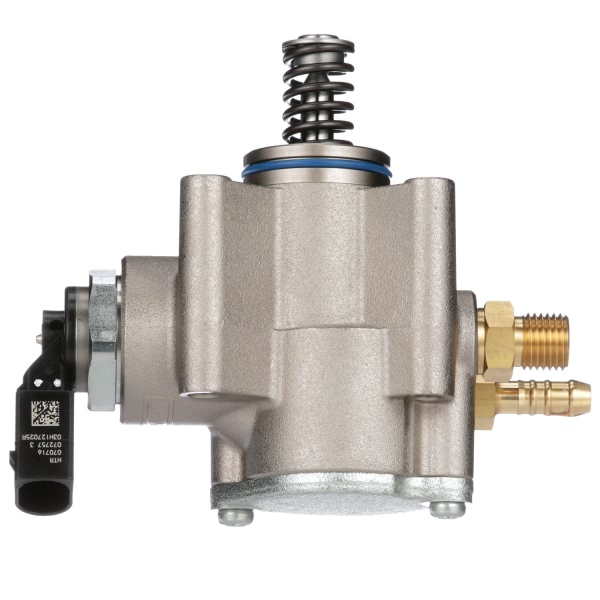

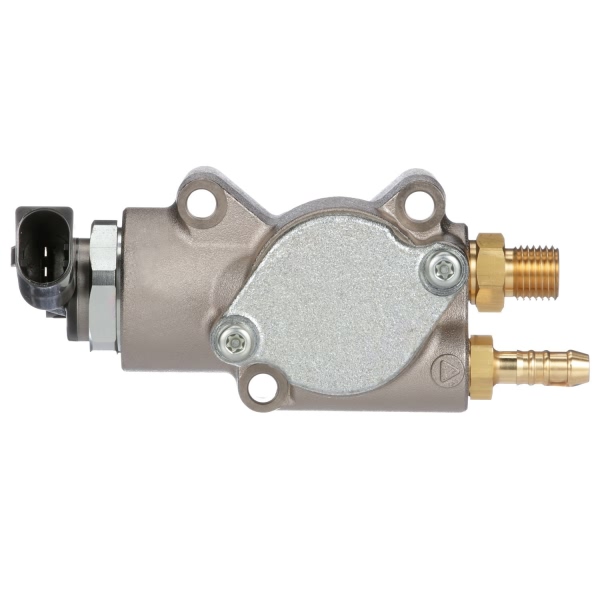

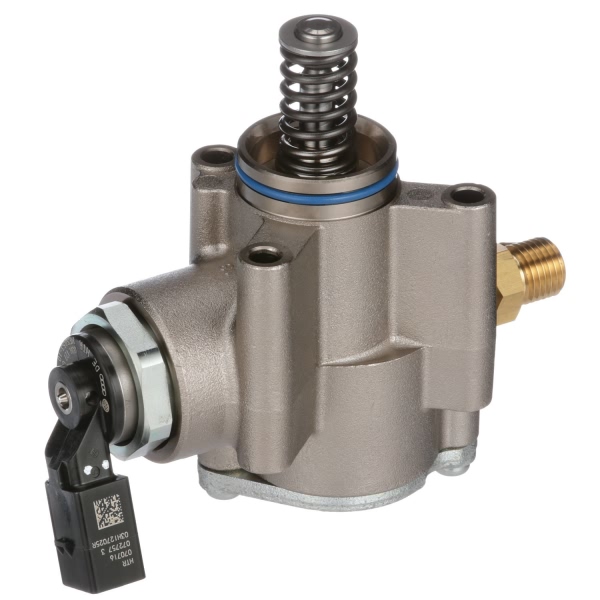

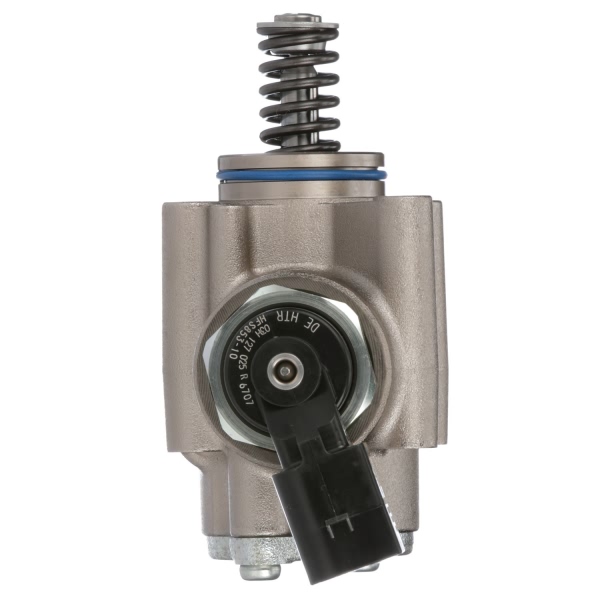

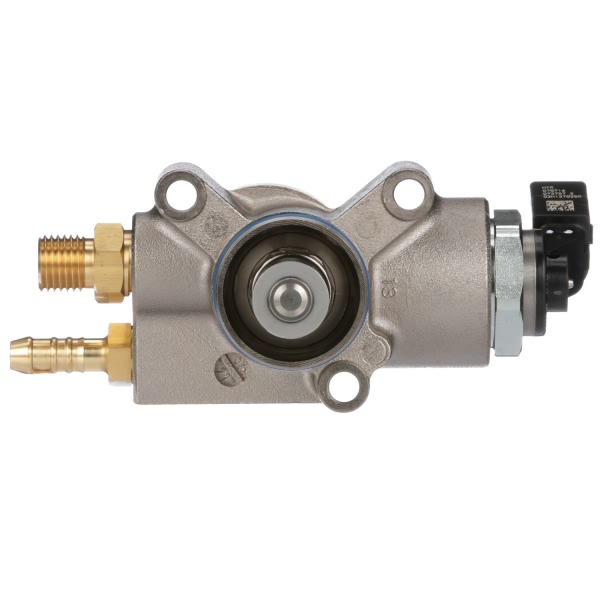

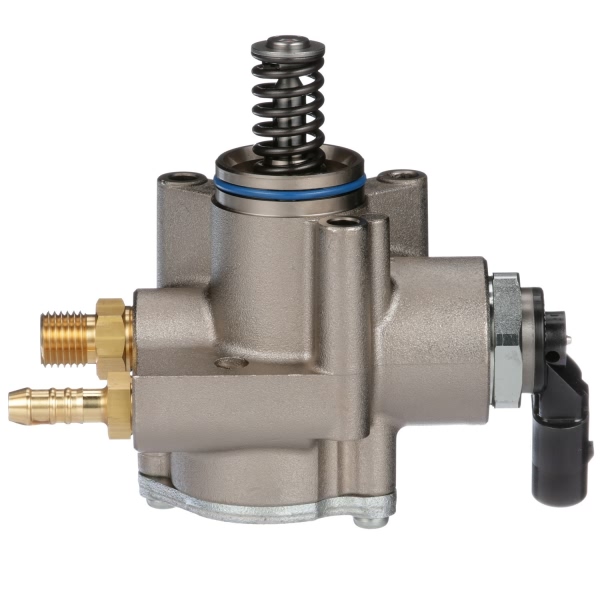

| Part Description | Direct Injection High Pressure Fuel Pump |
| Drive Shaft Included | No |
| Fuel Type | Gas |
| Gasket or Seal Included | No |
| Housing Color | Silver |
| Housing Material | Metal |
| In Tank or External | External |
| Inlet Fitting Thread Size | M14-1.5 |
| Inlet Type | Threaded |
| Item Grade | Standard Replacement |
| Mounting Hardware Included | No |
| Outlet Outside Diameter | 0.313 |
| Outlet Quantity | 2 |
| Outlet Type | Hose Bead |
| Package Contents | Direct Injection High Pressure Fuel Pump, Instruction Sheet |
| Pump Type | Mechanical |

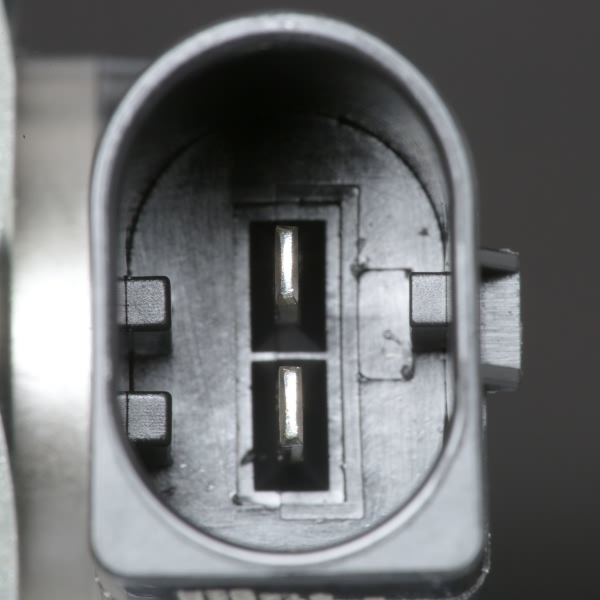

| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| UPC | 689604284926 |
| Wiring Harness Included | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2018-2019 Volkswagen Atlas | All Trims | 6 Cyl 3.6L |
| 2012-2016 Volkswagen CC | All Trims | 6 Cyl 3.6L |
| 2012-2018 Volkswagen Passat | All Trims | 6 Cyl 3.6L |
| 2011-2017 Volkswagen Touareg | All Trims | 6 Cyl 3.6L |
