Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | HM10063 |

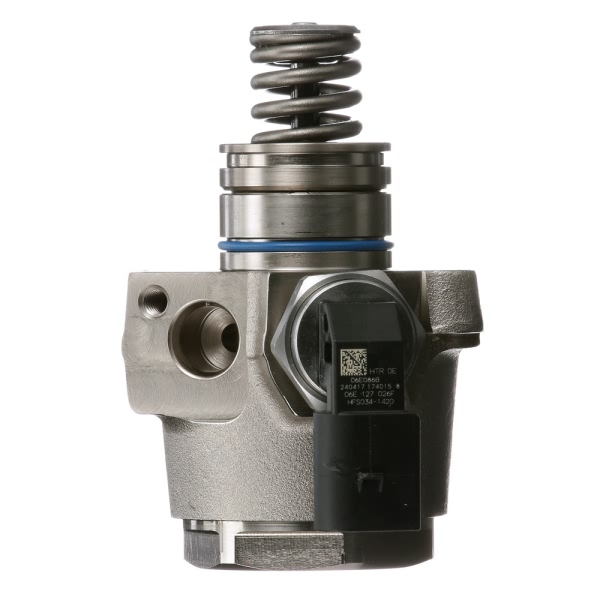

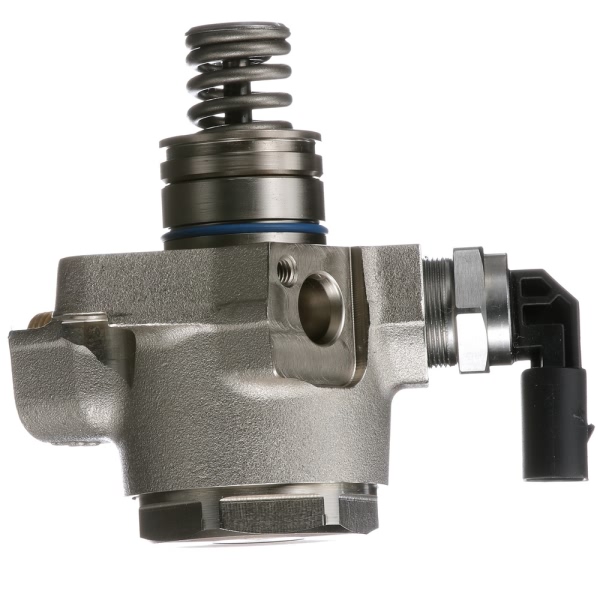

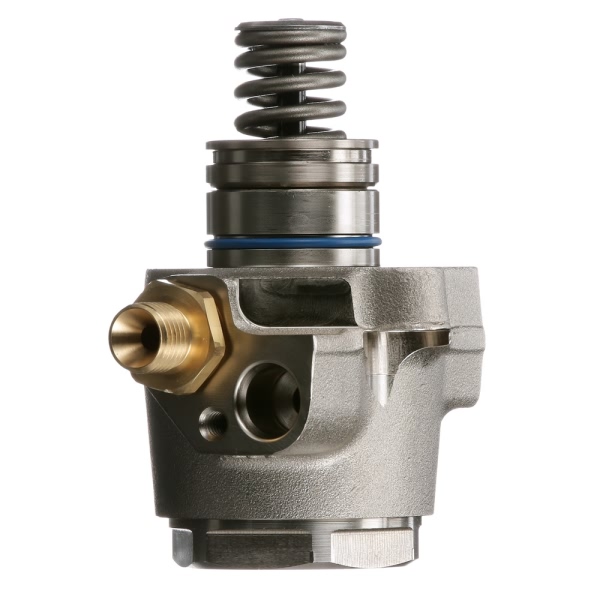

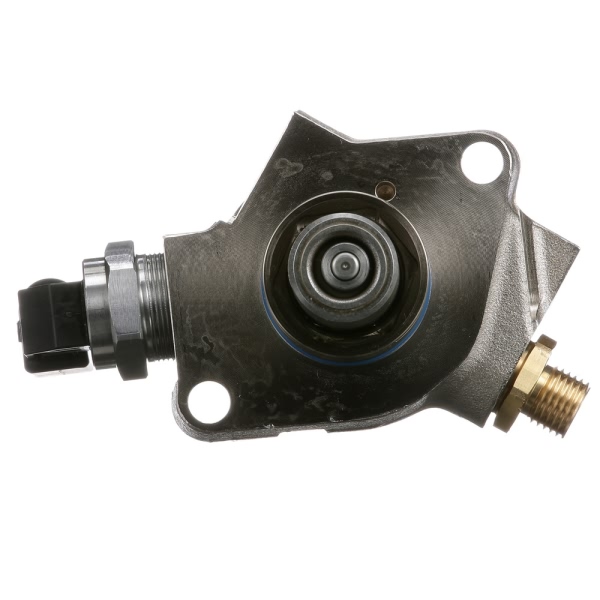

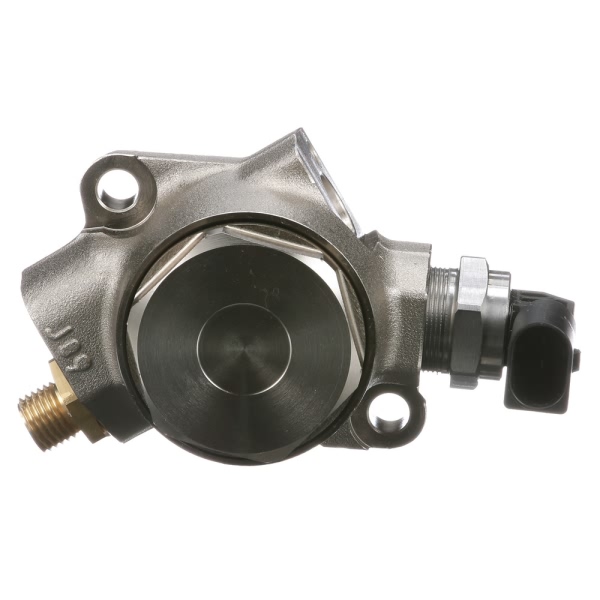

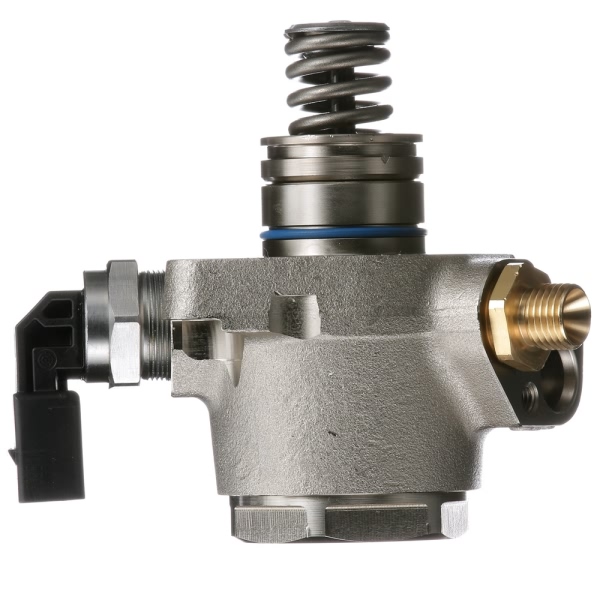

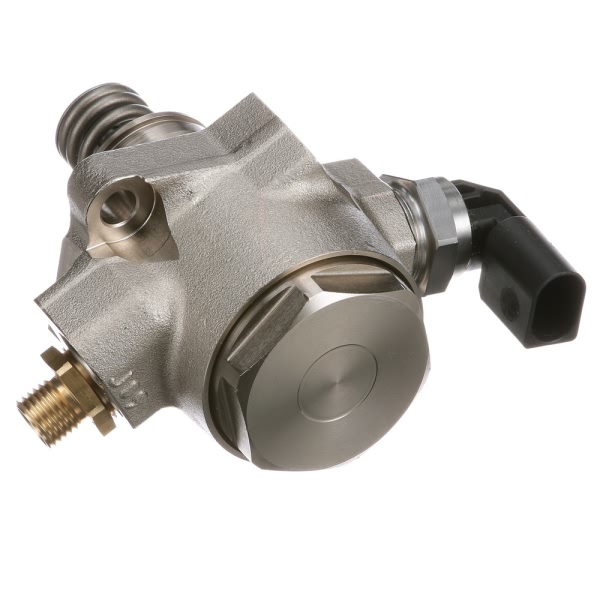

| Part Description | Direct Injection High Pressure Fuel Pump |
| Drive Shaft Included | No |
| Fuel Type | Gas |
| Gasket or Seal Included | No |
| Housing Color | Silver |
| Housing Material | Metal |
| In Tank or External | External |
| Inlet Outside Diameter | 0.313'' |
| Inlet Type | Quick Connect |
| Item Grade | Standard Replacement |
| Mounting Hardware Included | No |
| Outlet Fitting Thread Size | M14-1.5mm |
| Outlet Quantity | 3 |
| Outlet Type | Threaded |
| Package Contents | Direct Injection High Pressure Fuel Pump, Instruction Sheet |
| Pump Type | Mechanical |

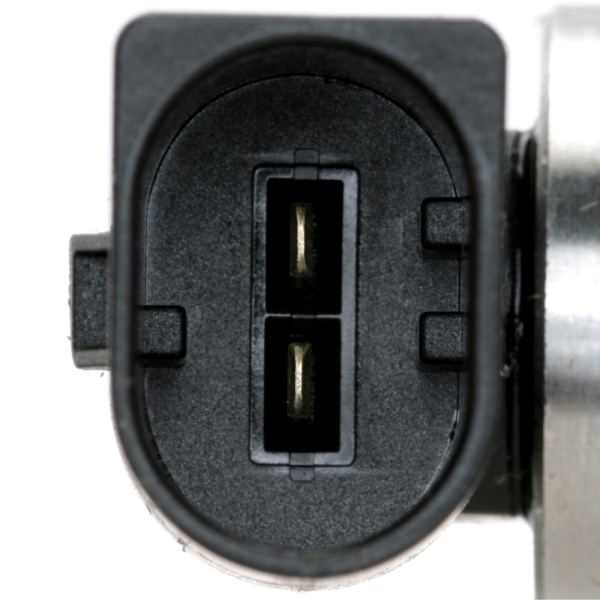

| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| UPC | 689604285602 |
| Wiring Harness Included | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2016-2018 Audi A6 Quattro | All Trims | 6 Cyl 3.0L |
| 2016-2018 Audi A7 Quattro | All Trims | 6 Cyl 3.0L |
| 2015-2018 Audi A8 Quattro | All Trims | 6 Cyl 3.0L |
| 2017-2019 Audi Q7 | All Trims | 6 Cyl 3.0L |
