Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FG0880 |

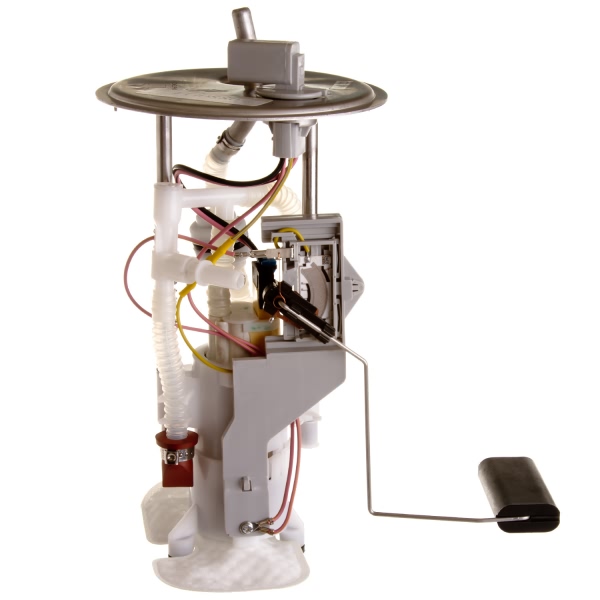

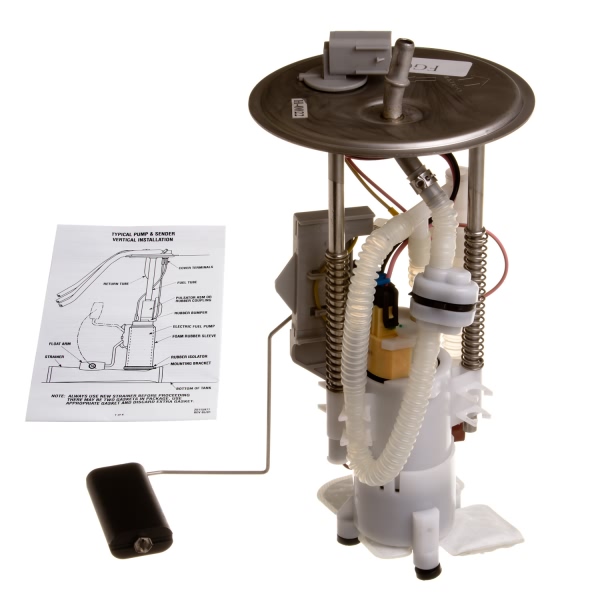

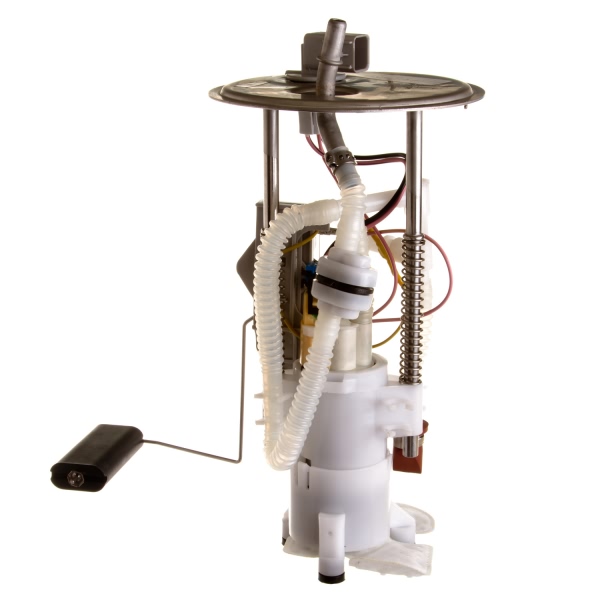

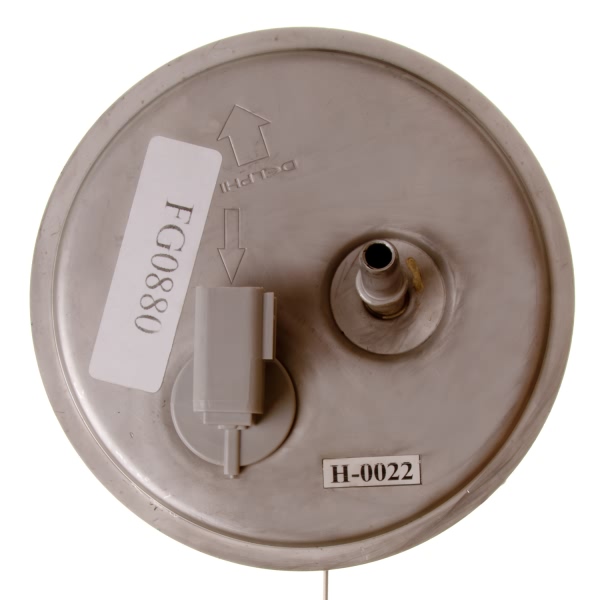

| Part Description | Driver Side Fuel Pump Module Assembly |
| Current Draw | 10 |
| Flow Rating | 26 gph |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| In Tank or External | In Tank |

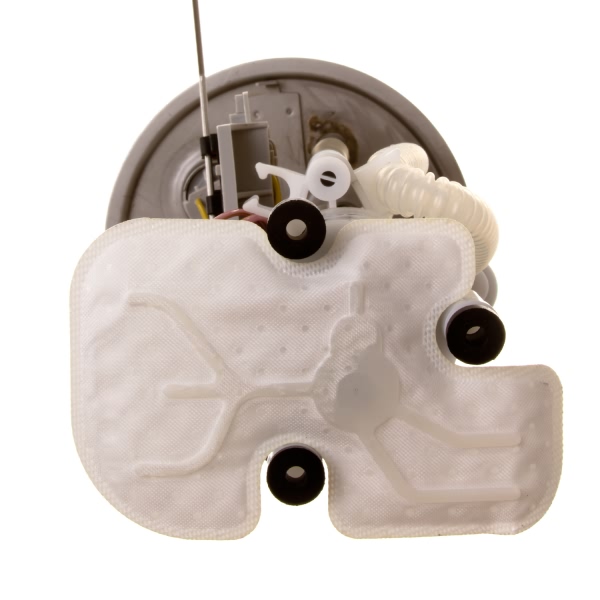

| Inlet Type | Strainer |
| Internal or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 73.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 15.0 |
| Resistance Ohms Full | 160.0 |
| Strainer Included | Yes |
| System Pressure | 59 psi |

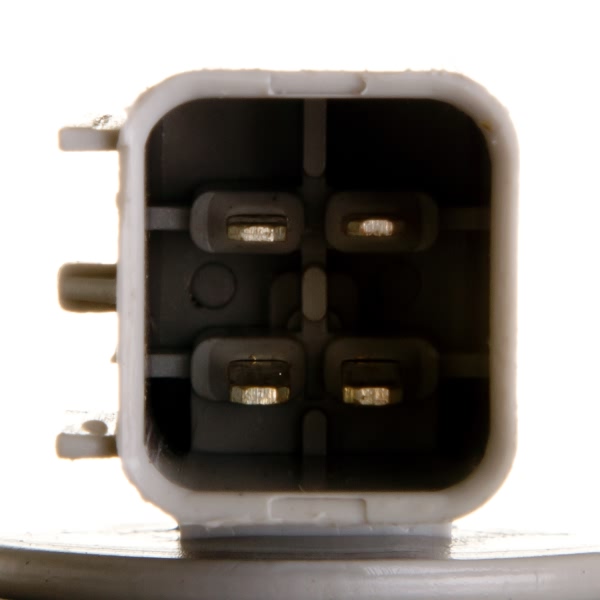

| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| UPC | 689604207574 |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2009 Ford Mustang | All Trims | 6 Cyl 4.0L |
| 2005-2009 Ford Mustang | All Trims | 8 Cyl 4.6L |
