Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | TA1247 |

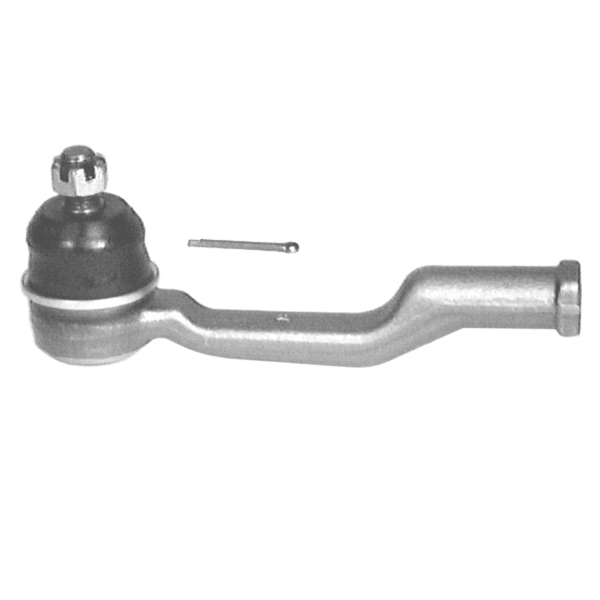

| Part Description | Front Outer Steering Tie Rod End |
| Adjustable | No |
| Bearing Material | POM |
| Color | Silver |
| Dust Boot Included | Yes |
| Dust Boot Material | Chloroprene Rubber |
| End 1 Gender | Male |
| End 1 Thread Diameter | 12.0 |
| End 1 Thread Direction | Clockwise |
| End 1 Thread Pitch | 1.25 |
| End 2 Gender | Female |
| End 2 Thread Diameter | 14.0 |
| End 2 Thread Direction | Counterclockwise |
| End 2 Thread Pitch | 1.5 |
| End 2 Threads Per Inch | 17 |
| Finish | Chrome Plating |
| Grade | Premium |
| Greasable | No |
| Grease Fitting Included | No |
| Height | 71.30 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 104.00 |
| Length Stud Center to End | 2.11 or 53.65 |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
| Stud Type | Threaded |
| Tie Rod Material | Steel |
| UPC | 689604270028 |
| Weight | 0.84 |
| Width | 38.00 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1981-1982 Ford Courier | All Trims | All Engines |
| 2001-2003 Ford Courier | All Trims | All Engines |
| 1981-1984 Mazda B2000 | All Trims | All Engines |
| 1986-1987 Mazda B2000 | All Trims | All Engines |
| 1982-1984 Mazda B2200 | All Trims | All Engines |
| 1987-1993 Mazda B2200 | All Trims | All Engines |
| 1987-1993 Mazda B2600 | All Trims | All Engines |
