Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | HP10009 |

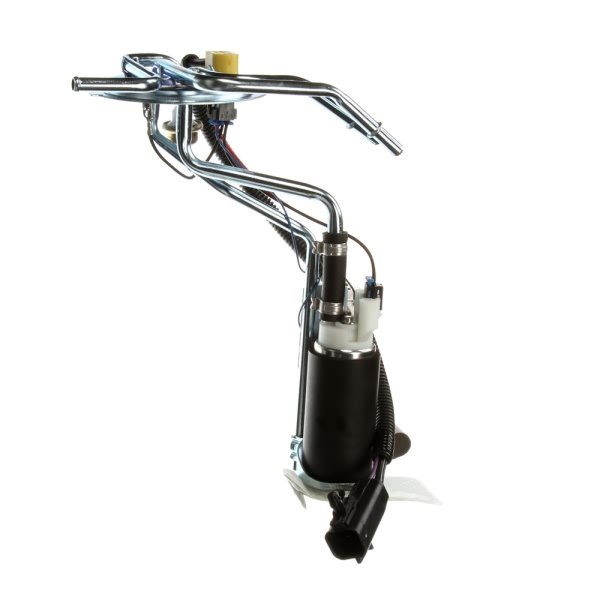

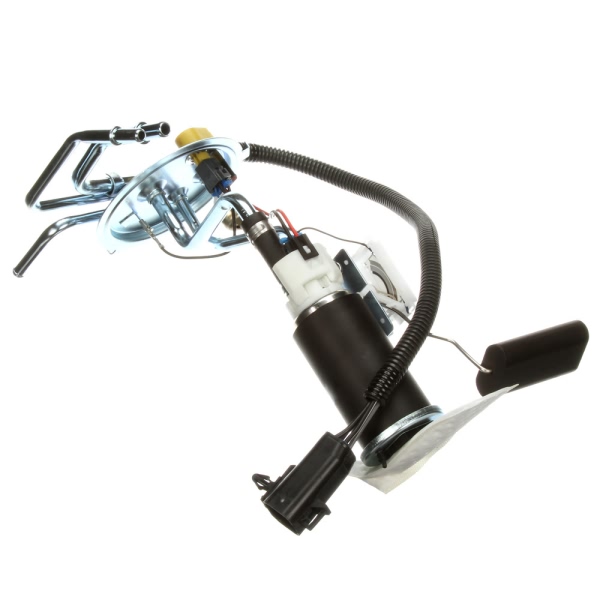

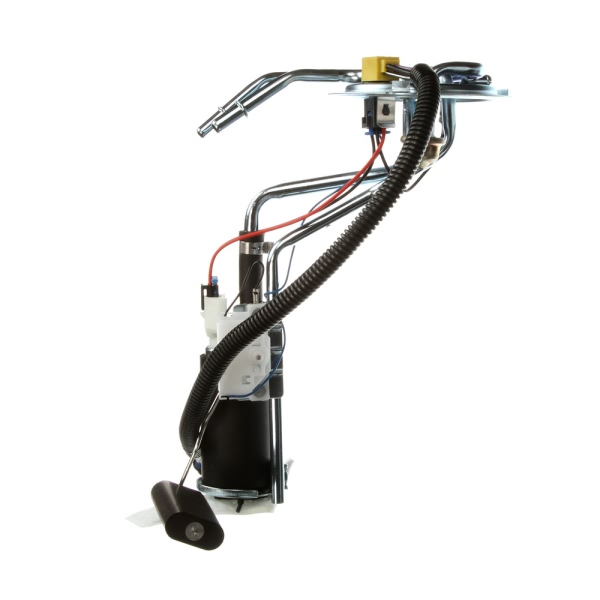

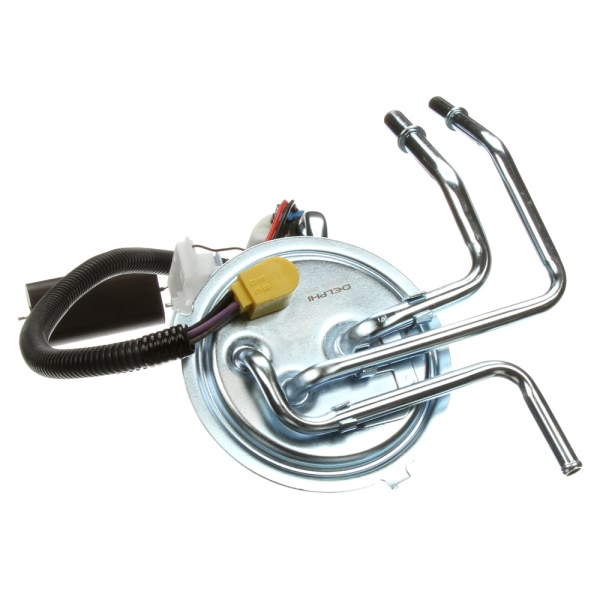

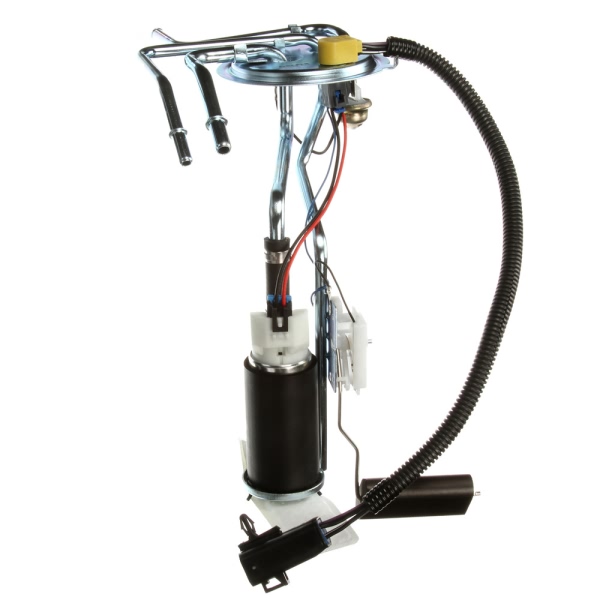

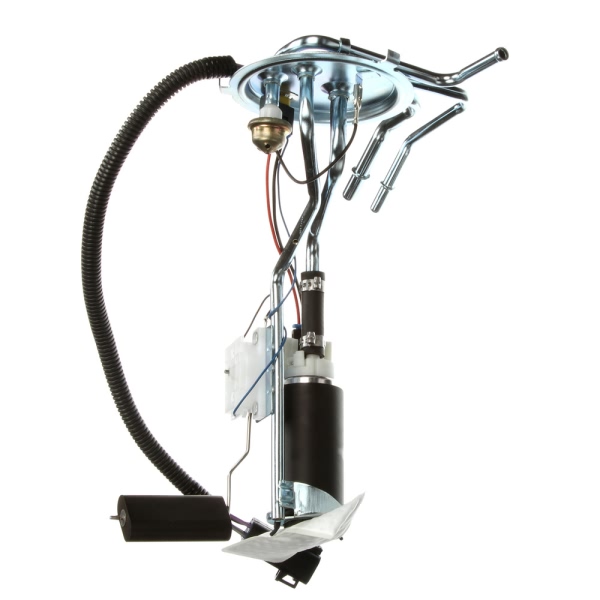

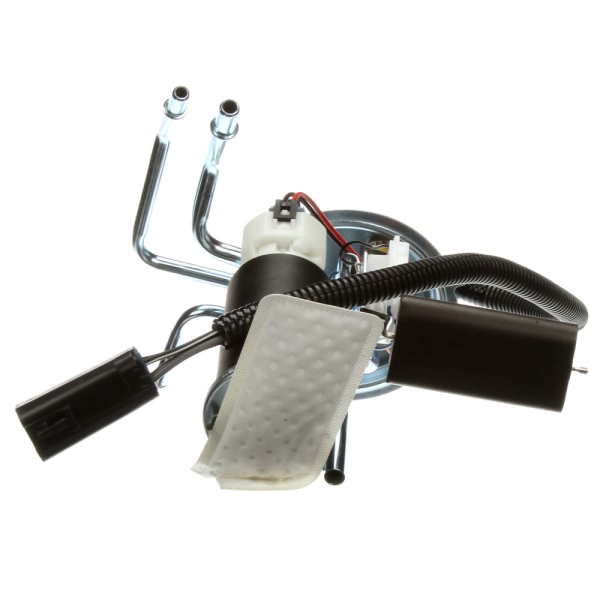

| Part Description | Fuel Pump And Sender Assembly |
| Current Draw | 6 |
| Flow Rating | 26 gph |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |

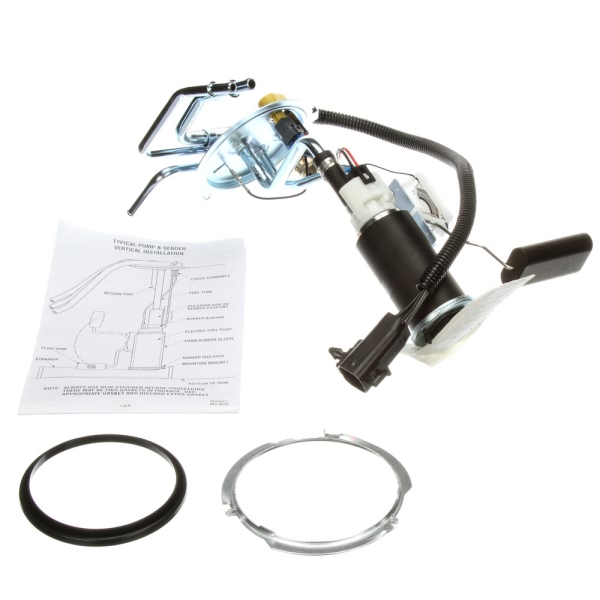

| Gasket or Seal Included | Yes |
| Inlet Type | Strainer |
| Internal or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 65.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 3 |
| Outlet Type | Quick Connect |
| Pump Location | In Tank |
| Pump Type | Electric |
| Resistance Ohms Empty | 1.0 |
| Resistance Ohms Full | 90.0 |
| Strainer Included | Yes |
| System Pressure | 51 psi |

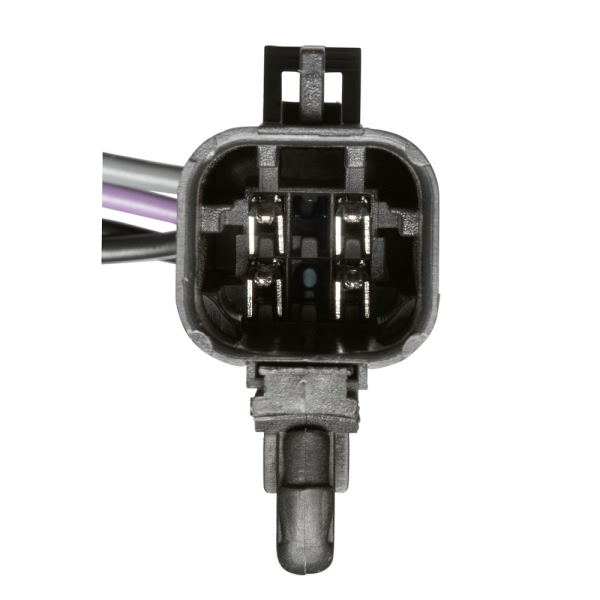

| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| UPC | 689604187302 |
| Voltage | 13.5 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1993-1996 Buick Regal | All Trims | 6 Cyl 3.8L |
| 1994-1996 Buick Regal | All Trims | 6 Cyl 3.1L |
| 1994-1995 Chevrolet Lumina | All Trims | 6 Cyl 3.4L |
| 1994-1996 Chevrolet Lumina | All Trims | 6 Cyl 3.1L |
| 1996 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.1L |
| 1994-1995 Oldsmobile Cutlass Supreme | All Trims | 6 Cyl 3.4L |
| 1994-1997 Oldsmobile Cutlass Supreme | All Trims | 6 Cyl 3.1L |
| 1994 Pontiac Grand Prix | All Trims | 6 Cyl 3.4L |
| 1994-1996 Pontiac Grand Prix | All Trims | 6 Cyl 3.1L |
