Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | HP10011 |

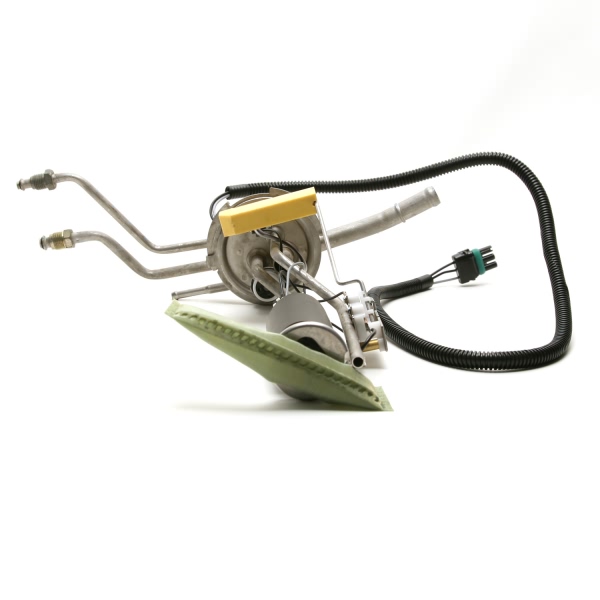

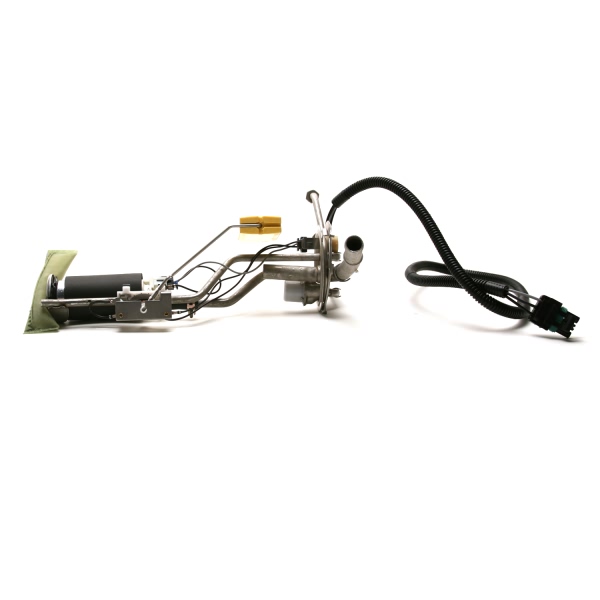

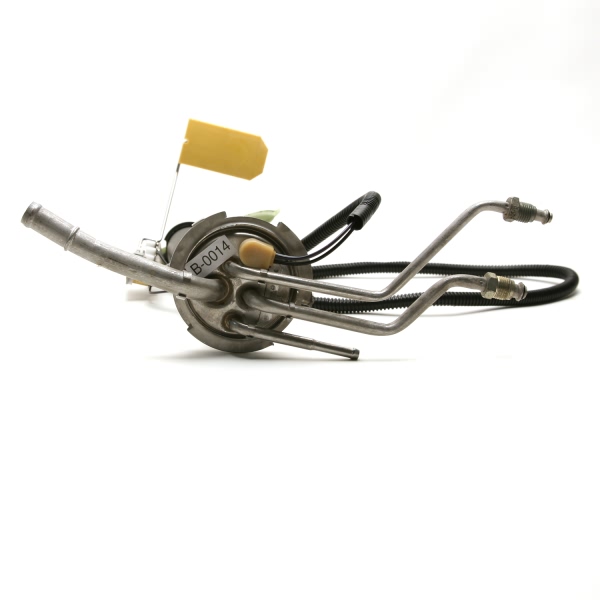

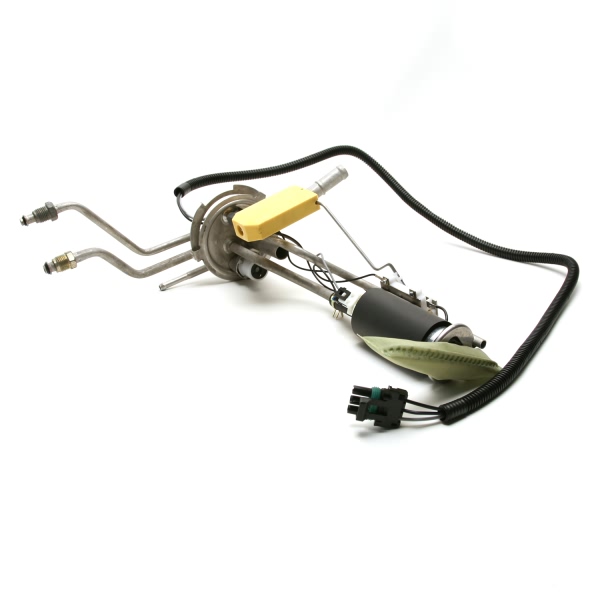

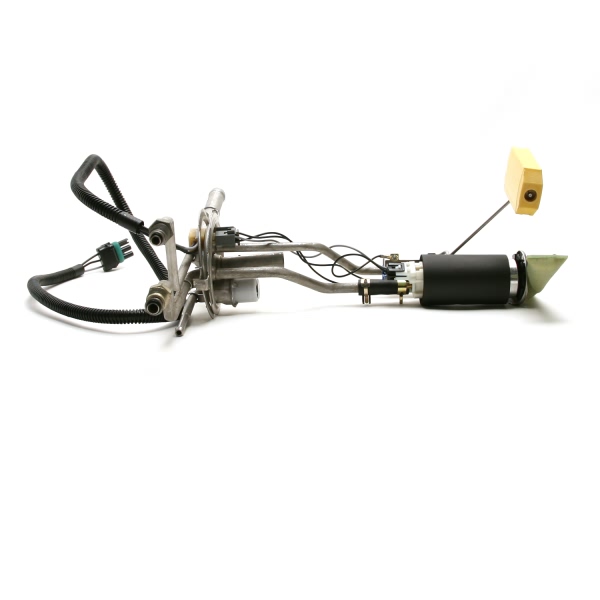

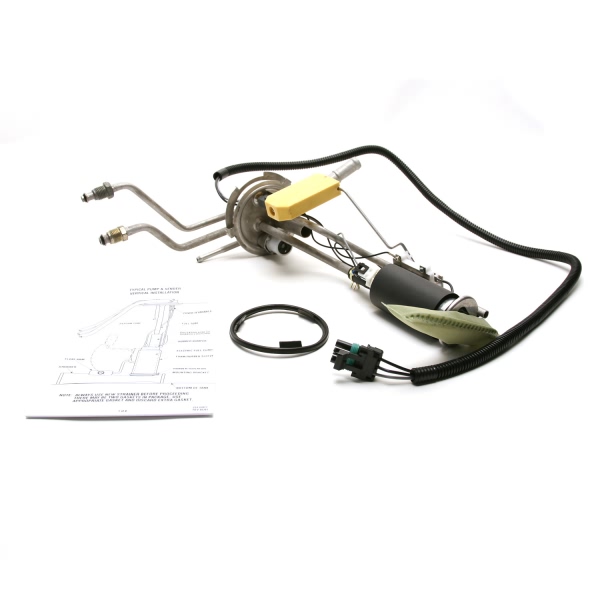

| Part Description | Fuel Pump And Sender Assembly |
| Current Draw | 4 |
| Flow Rating | 26 gph |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| Inlet Type | Strainer |
| Internal or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 29.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 4 |
| Outlet Type | Quick Connect |
| Pump Location | In Tank |
| Pump Type | Electric |
| Resistance Ohms Empty | 1.0 |
| Resistance Ohms Full | 90.0 |
| Strainer Included | Yes |
| System Pressure | 12 psi |

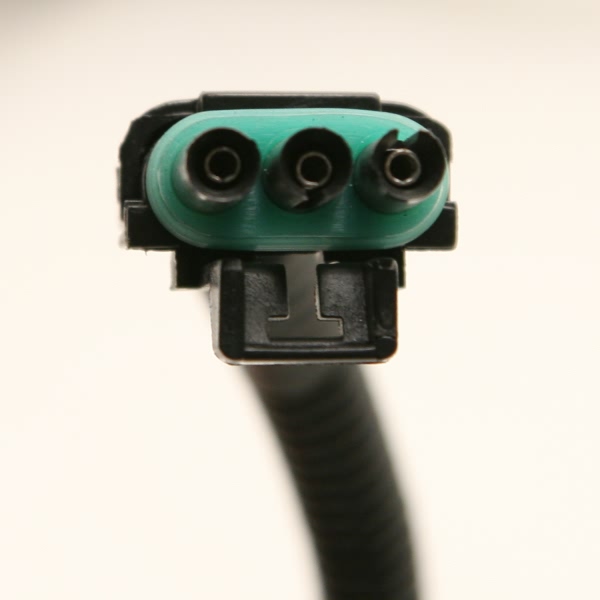

| Terminal Gender | Female |
| Terminal Quantity | 3 |
| Terminal Type | Pin |
| UPC | 689604187326 |
| Voltage | 13.5 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1987-1995 Chevrolet G10 | All Trims | All Engines |
| 1987-1995 Chevrolet G20 | All Trims | All Engines |
| 1987-1993 Chevrolet G30 | All Trims | All Engines |
| 1994-1995 Chevrolet G30 | All Trims | 6 Cyl 4.3L |
| 1994-1995 Chevrolet G30 | All Trims | 8 Cyl 5.7L |
| 1987-1995 GMC G1500 | All Trims | All Engines |
| 1987-1995 GMC G2500 | All Trims | All Engines |
| 1987-1993 GMC G3500 | All Trims | All Engines |
| 1994-1995 GMC G3500 | All Trims | 6 Cyl 4.3L |
| 1994-1995 GMC G3500 | All Trims | 8 Cyl 5.7L |
