Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | HP10141 |

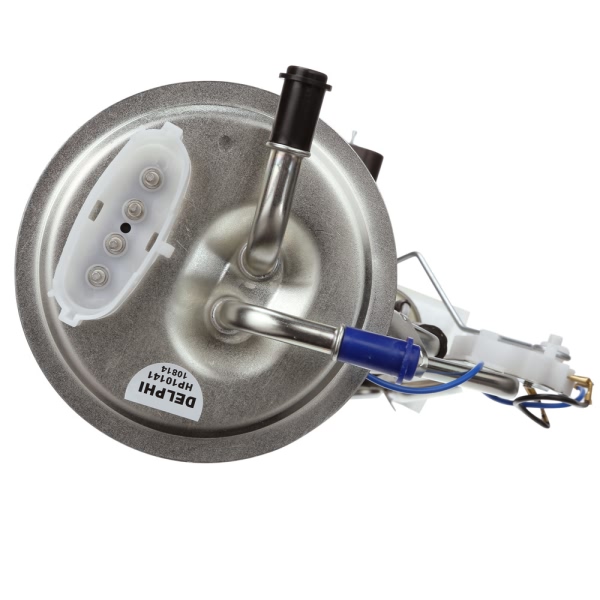

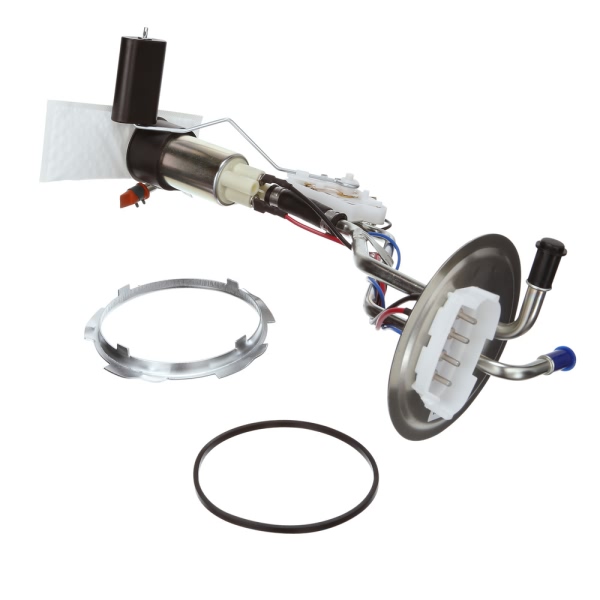

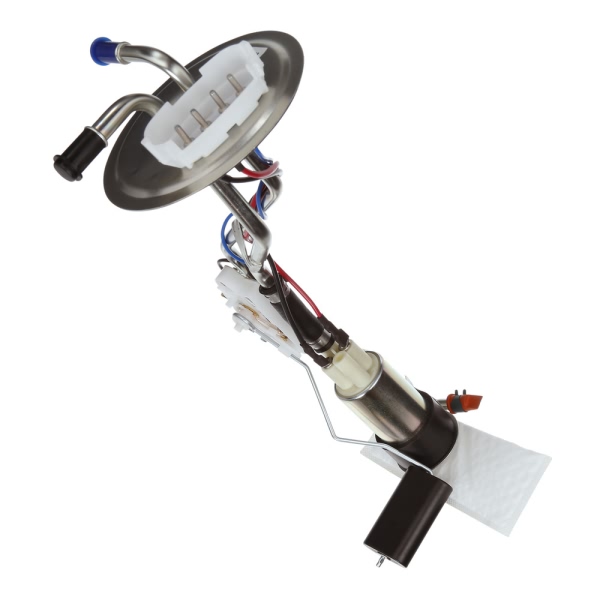

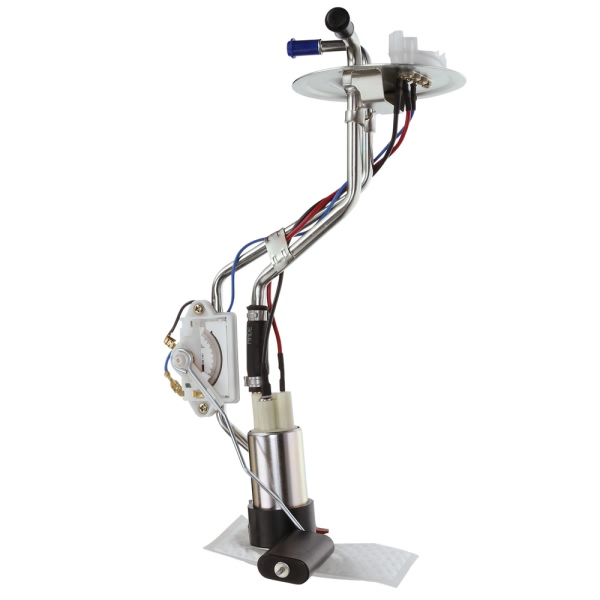

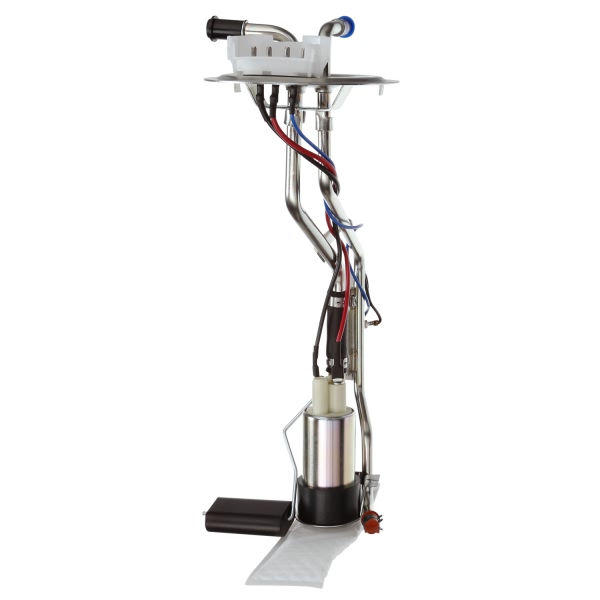

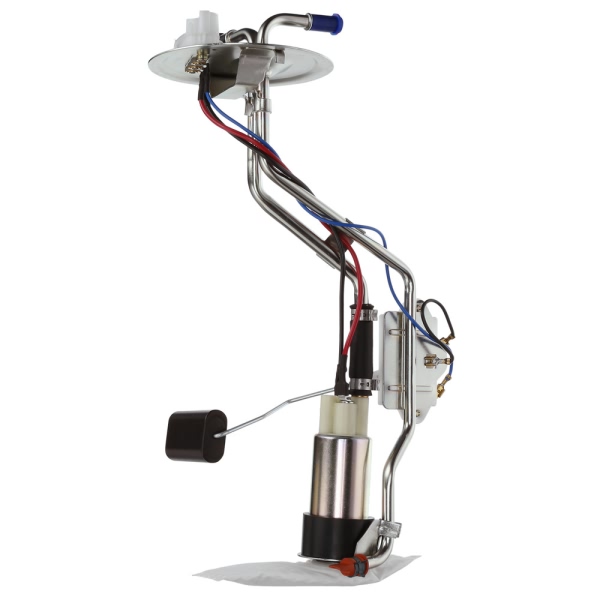

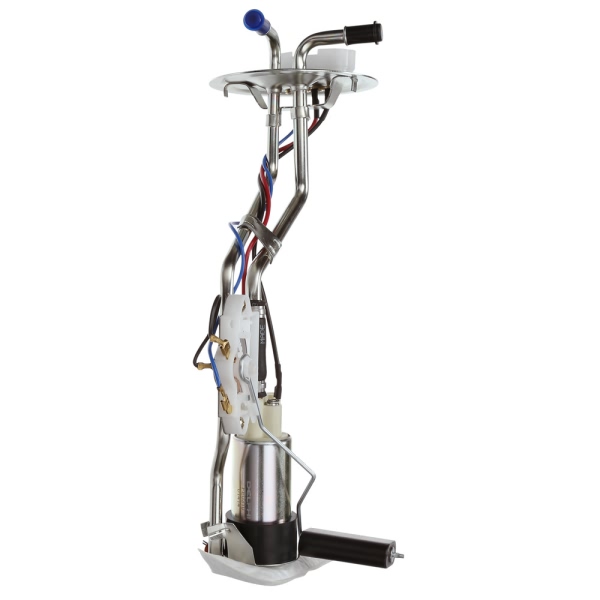

| Part Description | Fuel Pump Hanger Assembly |
| Current Draw | 7 |
| Flow Rating | 24 gph |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| In Tank or External | In Tank |

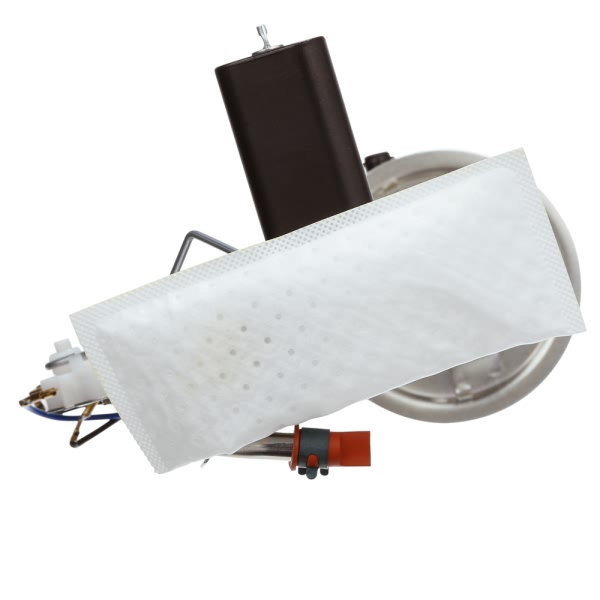

| Inlet Type | Strainer |
| Internal or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 80.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Resistance Ohms Empty | 15.0 |
| Resistance Ohms Full | 160.0 |
| Strainer Included | Yes |
| System Pressure | 36 psi |

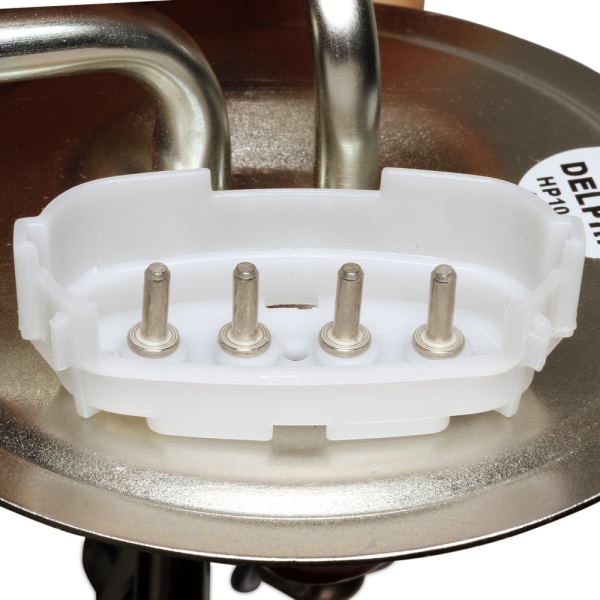

| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| UPC | 689604215180 |
| Voltage | 12.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1989-1992 Ford Ranger | All Trims | 6 Cyl 2.9L |
| 1989-1997 Ford Ranger | All Trims | 4 Cyl 2.3L |
| 1990-1997 Ford Ranger | All Trims | 6 Cyl 4.0L |
| 1991-1997 Ford Ranger | All Trims | 6 Cyl 3.0L |
| 1994-1997 Mazda B2300 | All Trims | 4 Cyl 2.3L |
| 1994-1995 Mazda B3000 | All Trims | 6 Cyl 3.0L |
| 1994-1997 Mazda B4000 | All Trims | 6 Cyl 4.0L |
