Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | HP10250 |

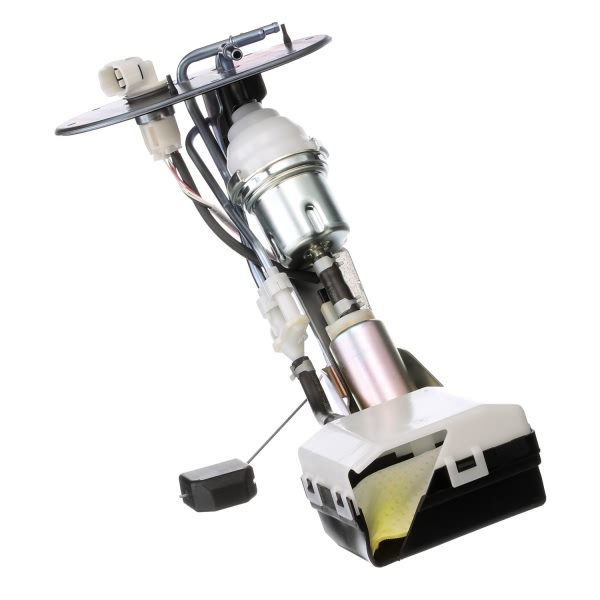

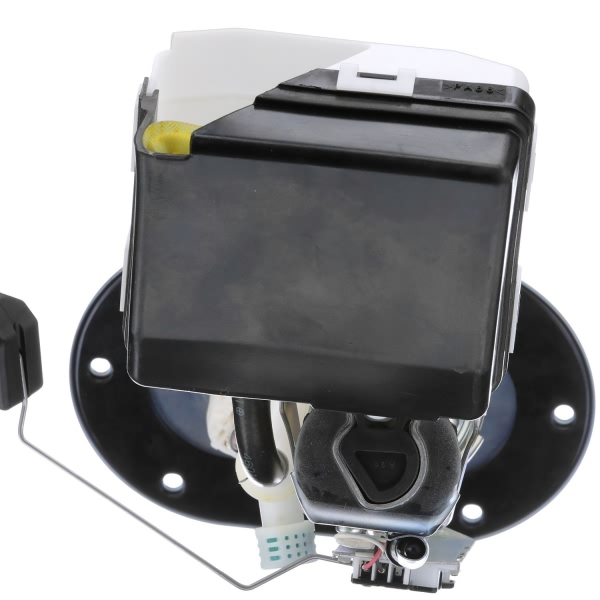

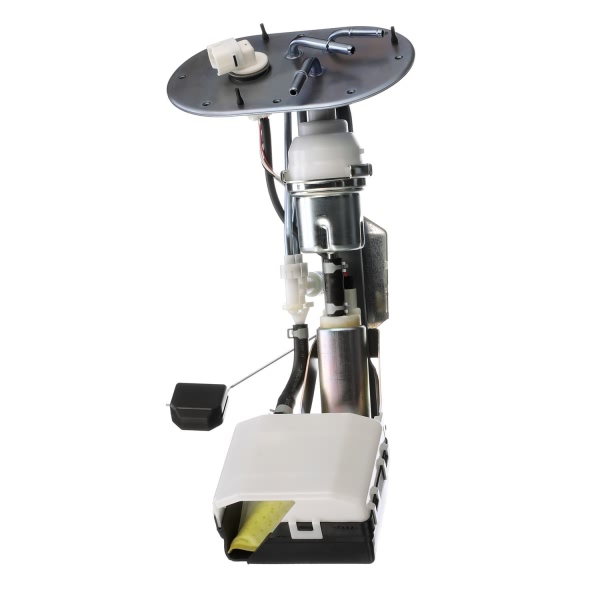

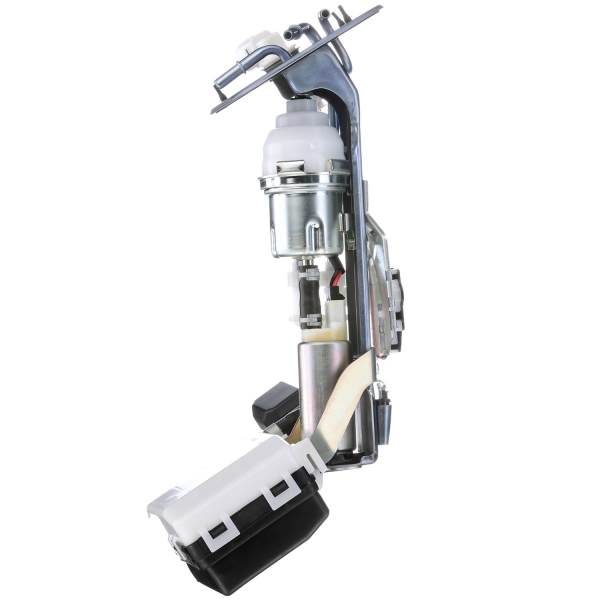

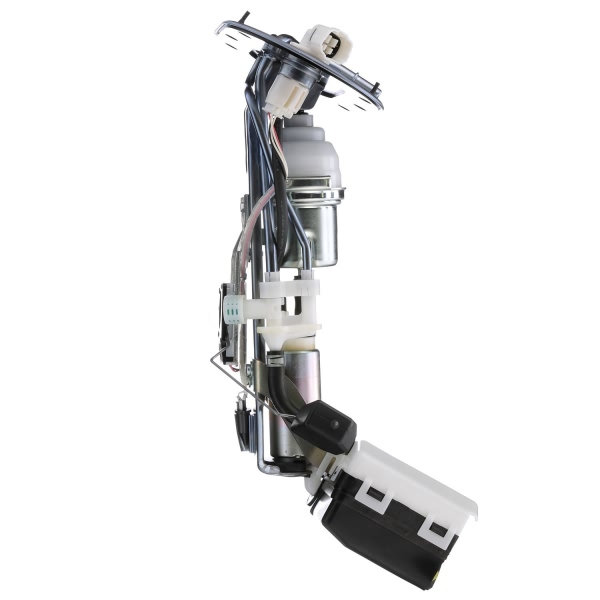

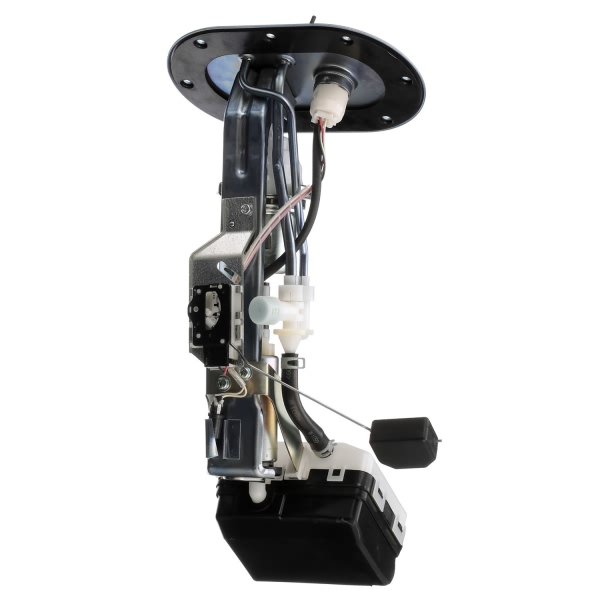

| Part Description | Fuel Pump Hanger Assembly |
| Flow Rating | 39 gph |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 65.0 PSI |
| Outlet Outside Diameter | 0.313'' |

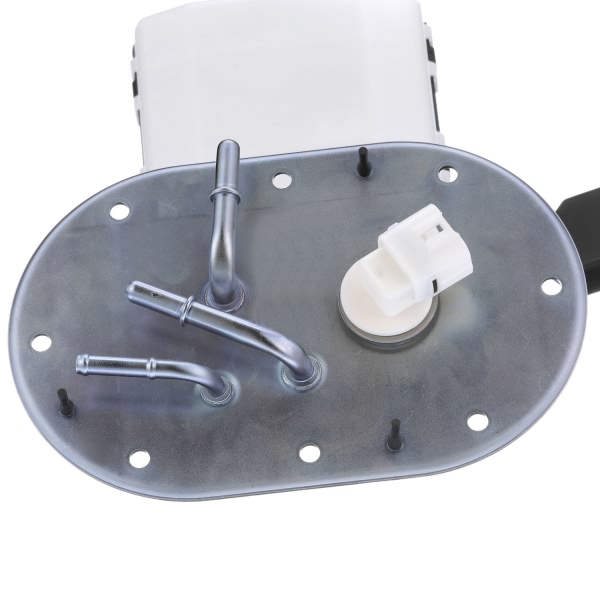

| Outlet Quantity | 3 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Hanger Assembly withFloat Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Resistance Ohms Empty | 51.0 |
| Resistance Ohms Full | 2.0 |
| Strainer Included | Yes |
| System Pressure | 34 psi |

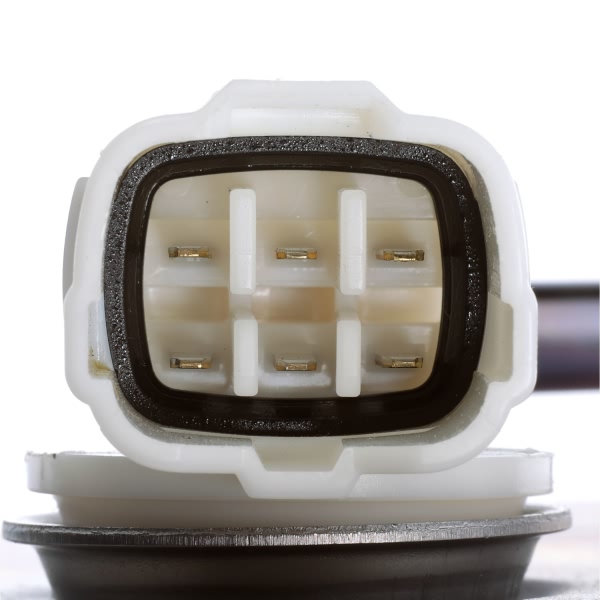

| Terminal Gender | Male |
| Terminal Quantity | 6 |
| Terminal Type | Blade |
| UPC | 689604295915 |
| Voltage | 12.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2008 Subaru Forester | All Trims | 4 Cyl 2.5L |
| 2004-2006 Subaru Impreza | All Trims | 4 Cyl 2.5L |
| 2005 Subaru Impreza | All Trims | 4 Cyl 2.0L |
