Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | HP10251 |

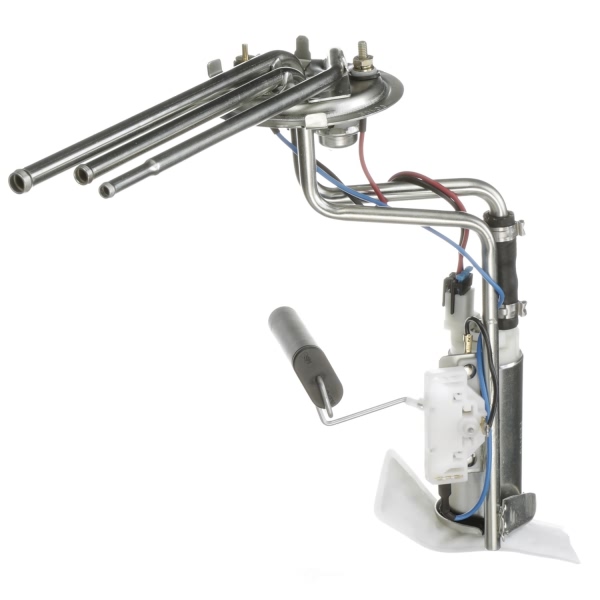

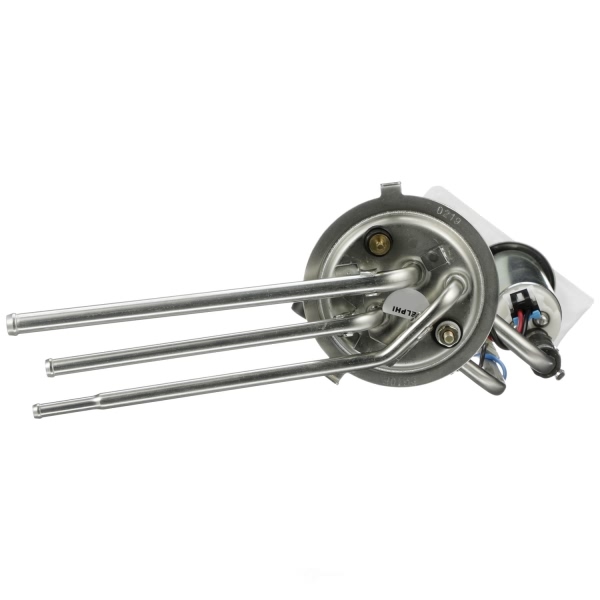

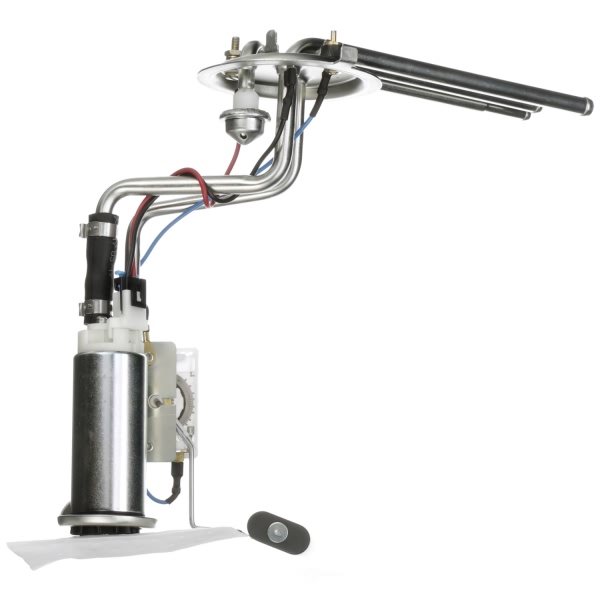

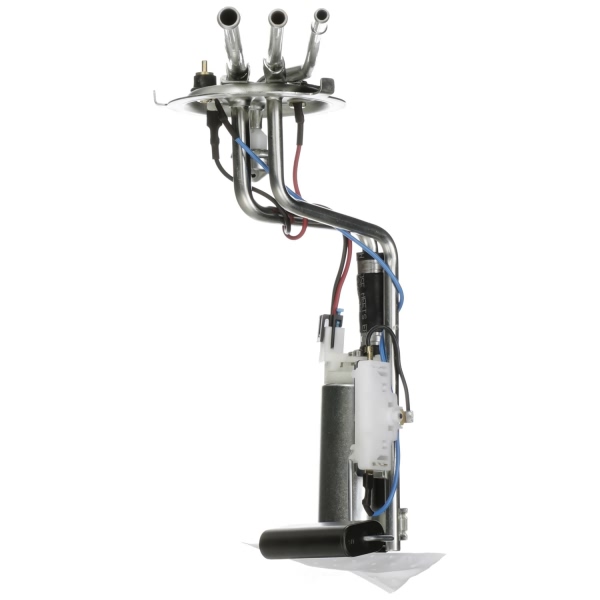

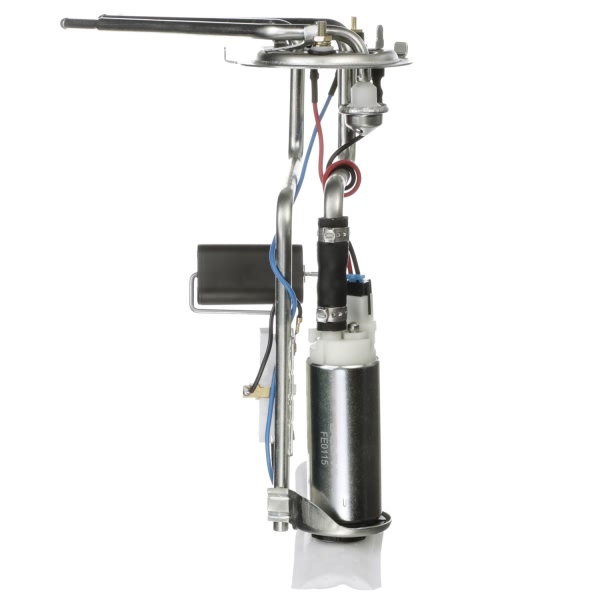

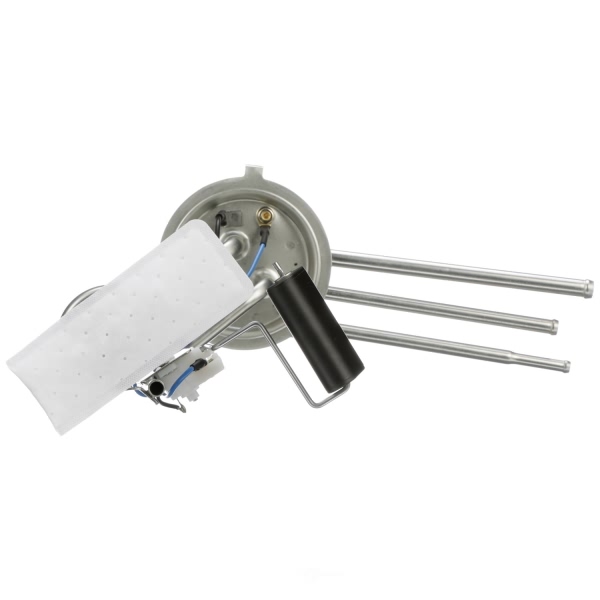

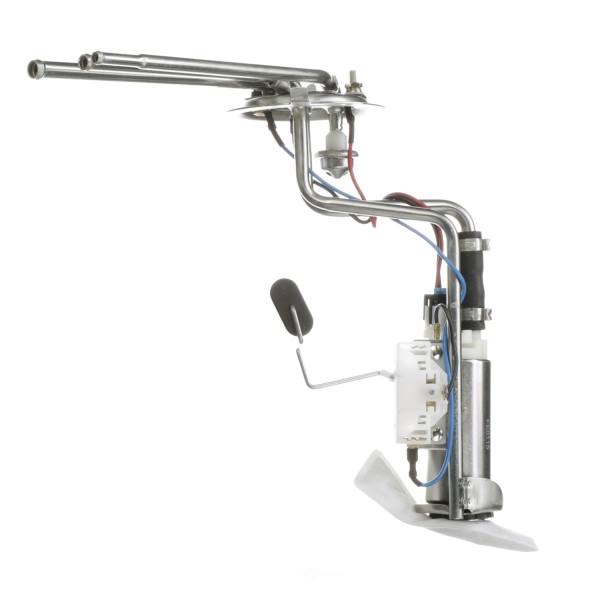

| Part Description | Fuel Pump Hanger Assembly |
| Flow Rate | 45 GPH |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| In Tank or External | External |
| Inlet Outside Diameter | 0.312'' |
| Inlet Type | Hose |
| Internal or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 29.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 3 |
| Outlet Type | Hose |

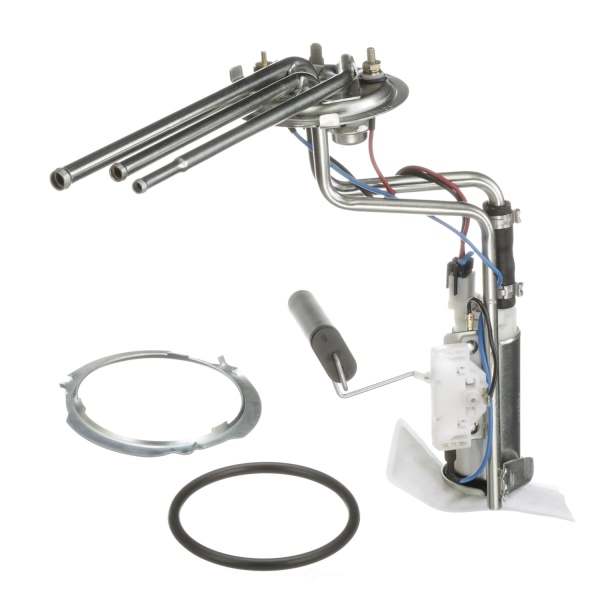

| Package Contents | Fuel Pump Hanger Assembly withFloat Arm, Seal, Lock Ring, Instruction Sheet |
| Pump Type | Electric |
| Resistance Ohms Empty | 3.0 |
| Resistance Ohms Full | 94.0 |
| Strainer Included | Yes |
| System Pressure | 12 PSI |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Pin |
| UPC | 689604331781 |
| Voltage | 12.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1982-1984 Cadillac DeVille | All Trims | 8 Cyl 4.1L |
| 1982-1984 Cadillac Fleetwood | All Trims | 8 Cyl 6.0L |
| 1982-1985 Cadillac Fleetwood | All Trims | 8 Cyl 4.1L |
