Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FG0146 |

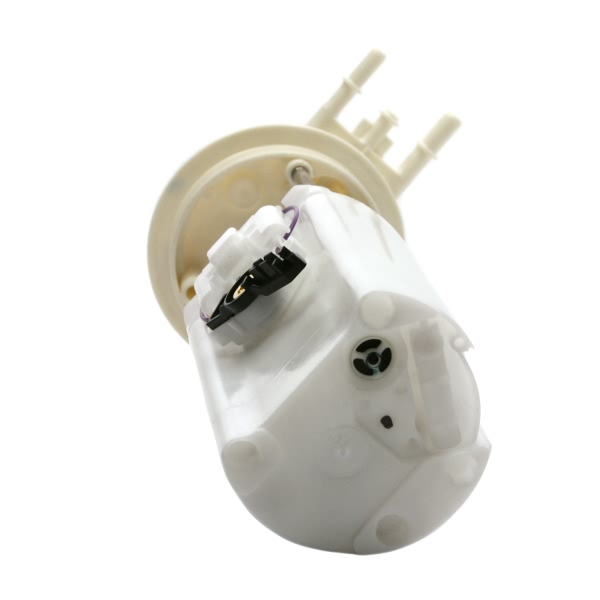

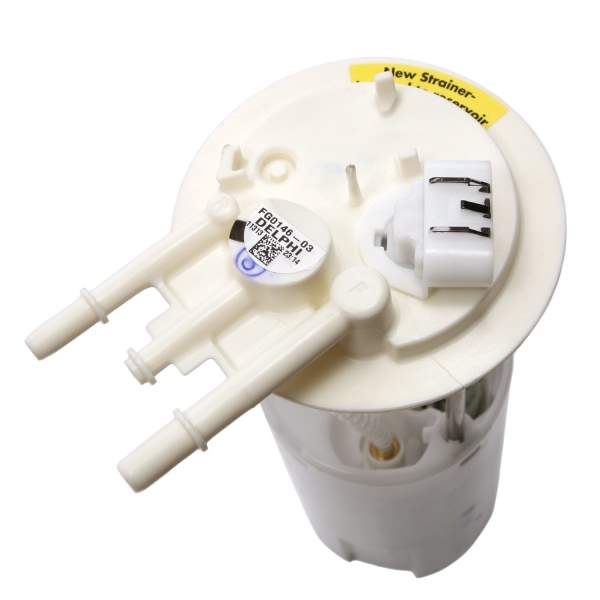

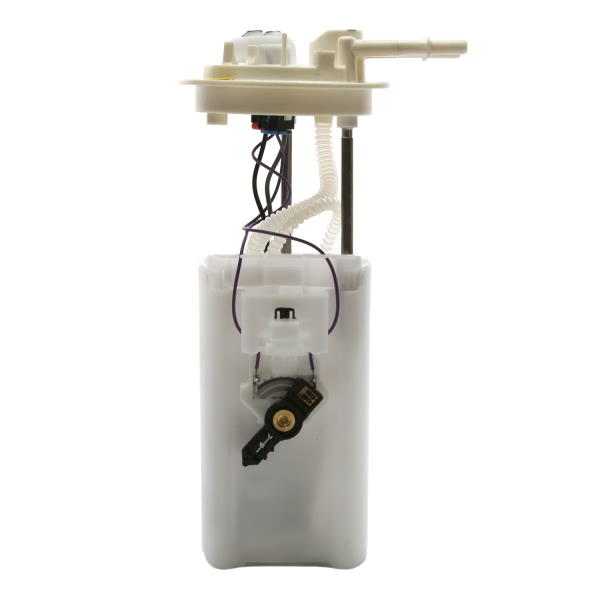

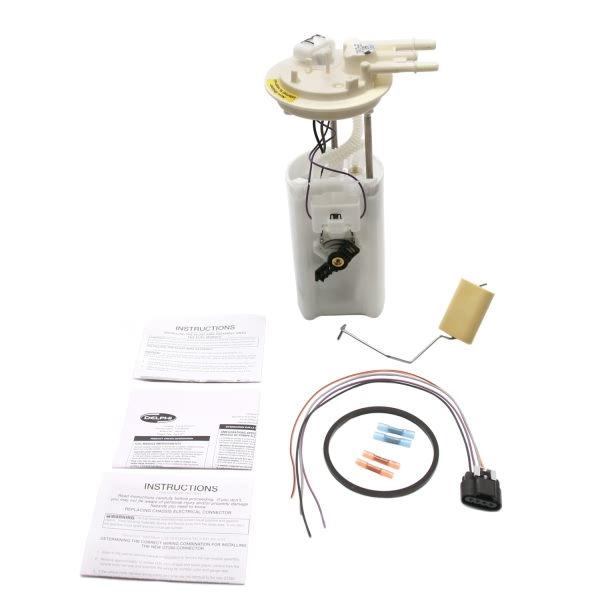

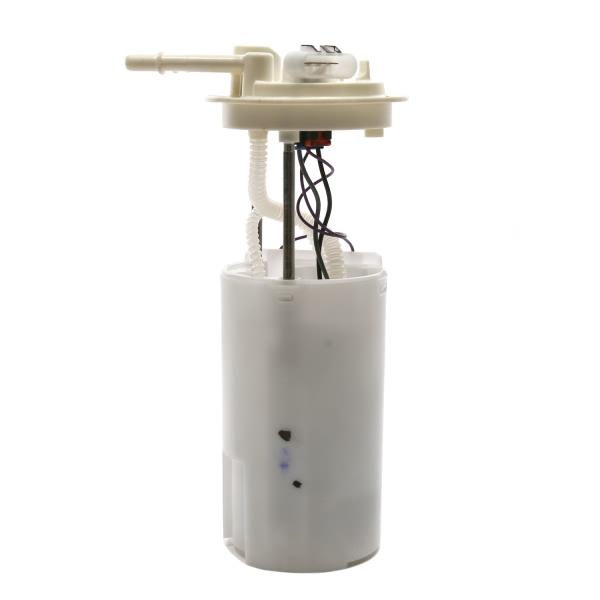

| Part Description | Fuel Pump Module Assembly |
| Current Draw | 7 |
| Flow Rating | 17 gph |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Maximum Pressure | 109.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 0.1 |
| Resistance Ohms Full | 90.0 |
| Strainer Included | Yes |
| System Pressure | 52 psi |

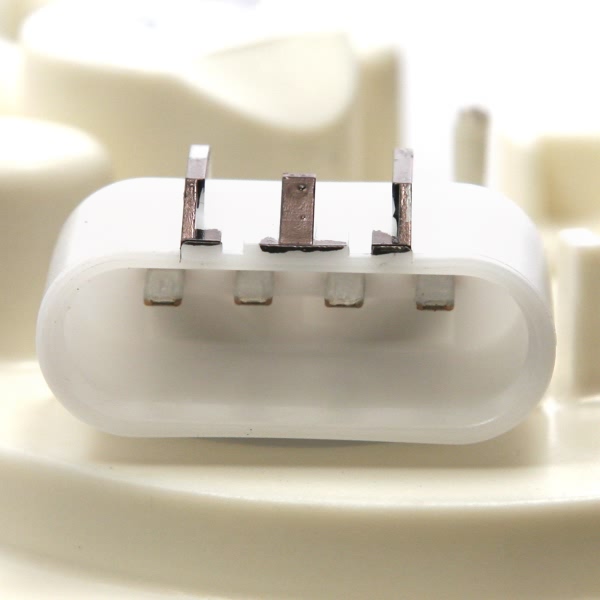

| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| UPC | 689604060834 |
| Vapor Pressure Sensor | No |
| Voltage | 13.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1997 Chevrolet Venture | All Trims | 6 Cyl 3.4L |
| 1997 Oldsmobile Silhouette | All Trims | 6 Cyl 3.4L |
| 1997 Pontiac Trans Sport | All Trims | 6 Cyl 3.4L |
