Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FG0214 |

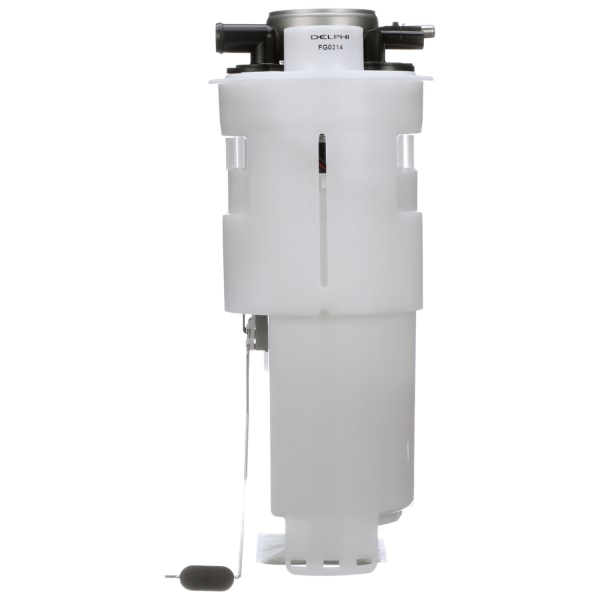

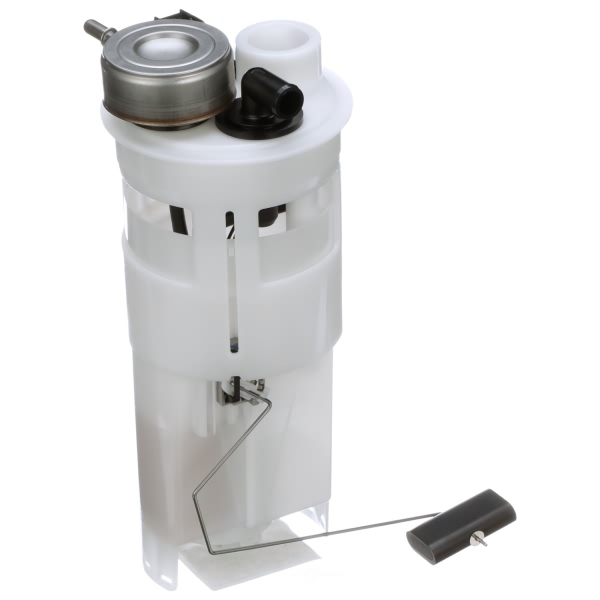

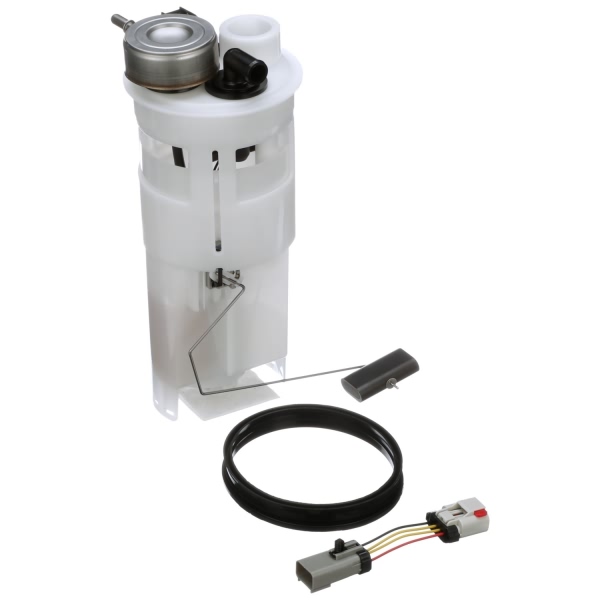

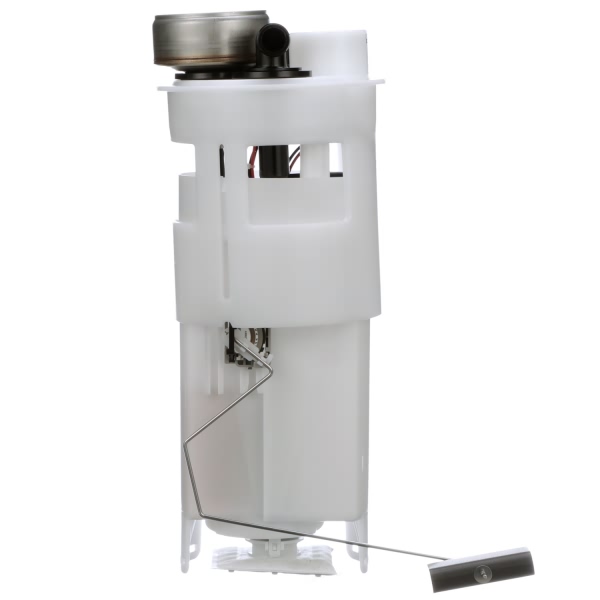

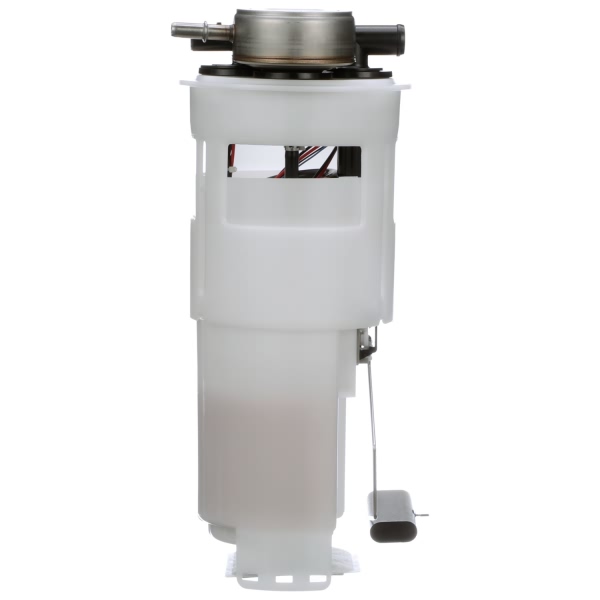

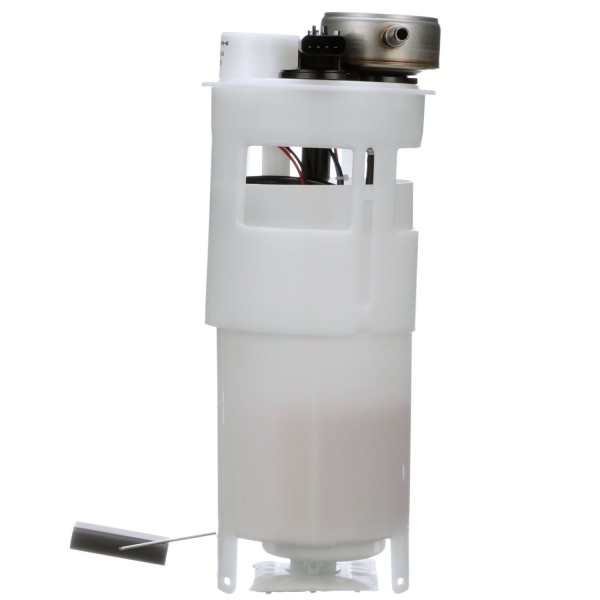

| Part Description | Fuel Pump Module Assembly |
| Current Draw | 16 |
| Flow Rating | 26 gph |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| In Tank or External | In Tank |

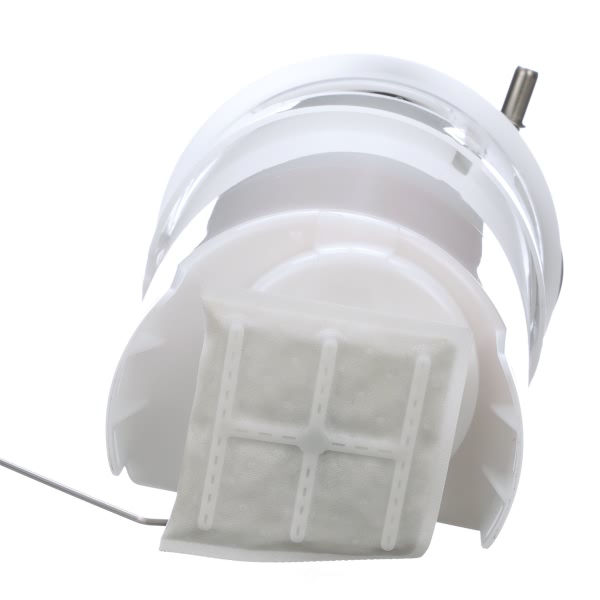

| Inlet Type | Strainer |
| Internal or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 80.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 102.0 |
| Resistance Ohms Full | 4.0 |
| Strainer Included | Yes |
| System Pressure | 44 psi |

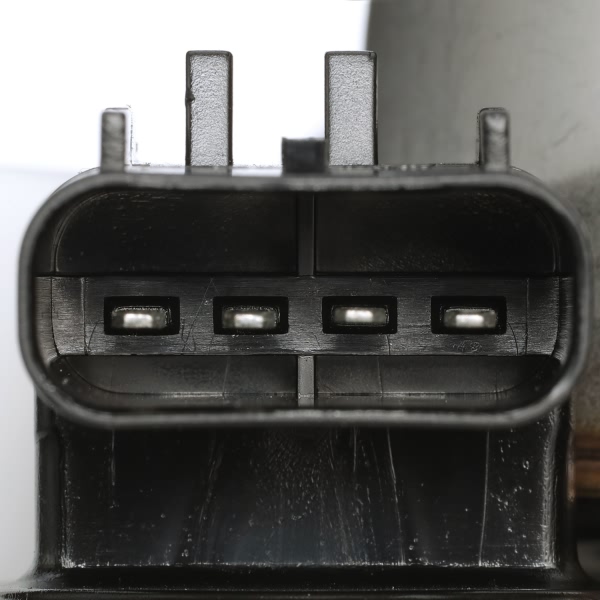

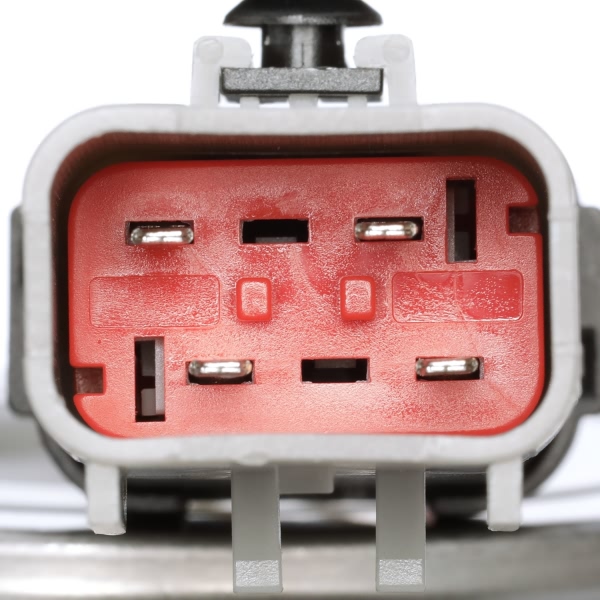

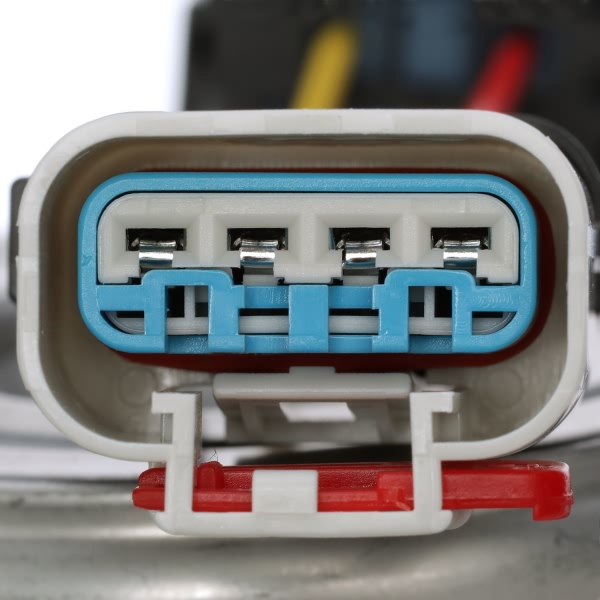

| Terminal Gender | Male |
| Terminal Quantity | 5 |
| Terminal Type | Pin |
| UPC | 689604061510 |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1996 Dodge Dakota | All Trims | 4 Cyl 2.5L |
| 1996 Dodge Dakota | All Trims | 6 Cyl 3.9L |
| 1996 Dodge Dakota | All Trims | 8 Cyl 5.2L |
