Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FG0375 |

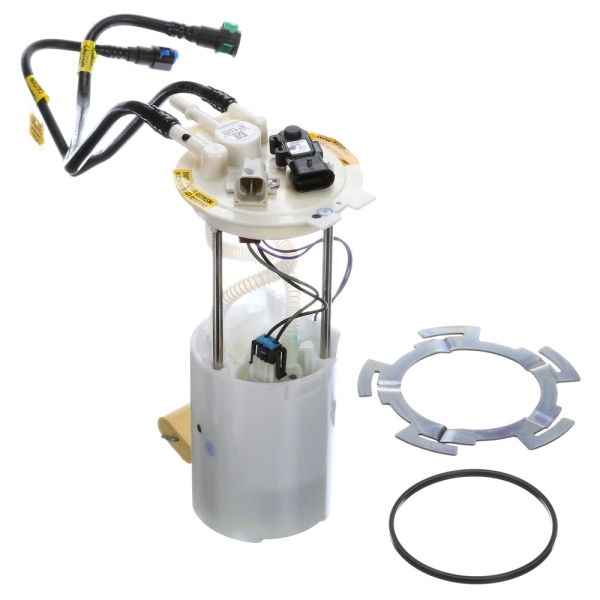

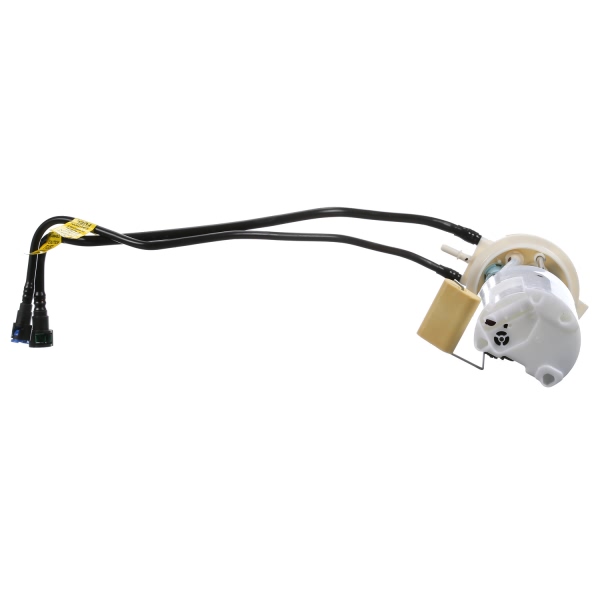

| Part Description | Fuel Pump Module Assembly |
| Current Draw | 7 |
| Flow Rating | 21 gph |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Maximum Pressure | 65.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 3 |
| Outlet Type | Female Quick Connect |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 40.0 |
| Resistance Ohms Full | 250.0 |
| Strainer Included | Yes |
| System Pressure | 59 psi |
| Terminal Gender | Male |
| Terminal Quantity | 3 |
| Terminal Type | Pin |
| UPC | 689604120651 |
| Vapor Pressure Sensor | Yes |
| Voltage | 12.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2000-2002 Chevrolet Cavalier | All Trims | 4 Cyl 2.4L |
| 2000-2005 Chevrolet Cavalier | All Trims | 4 Cyl 2.2L |
| 2004-2005 Chevrolet Classic | All Trims | 4 Cyl 2.2L |
| 2000-2003 Chevrolet Malibu | All Trims | 6 Cyl 3.1L |
| 2000-2001 Oldsmobile Alero | All Trims | 4 Cyl 2.4L |
| 2000-2004 Oldsmobile Alero | All Trims | 6 Cyl 3.4L |
| 2002-2004 Oldsmobile Alero | All Trims | 4 Cyl 2.2L |
| 2000-2001 Pontiac Grand Am | All Trims | 4 Cyl 2.4L |
| 2000-2005 Pontiac Grand Am | All Trims | 6 Cyl 3.4L |
| 2002-2005 Pontiac Grand Am | All Trims | 4 Cyl 2.2L |
