Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FG0402 |

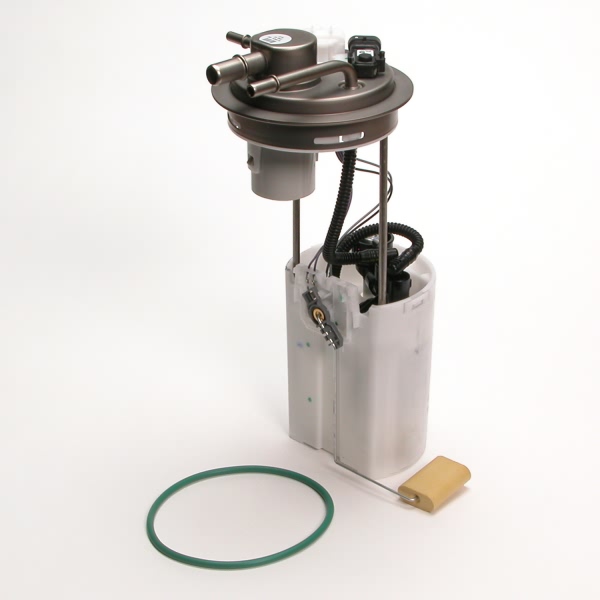

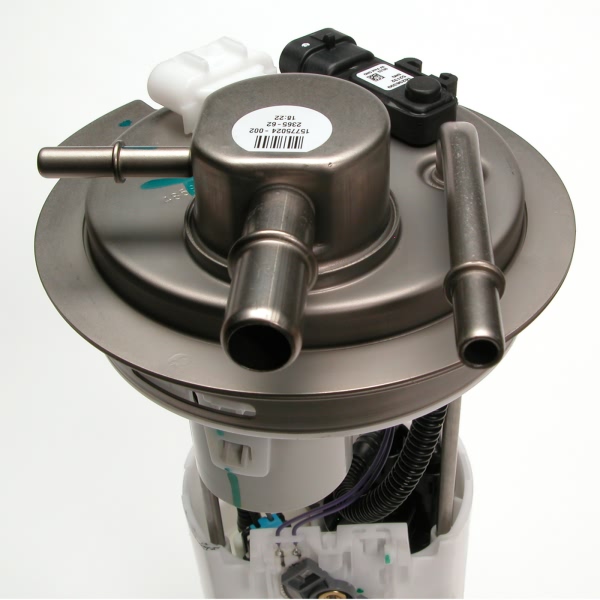

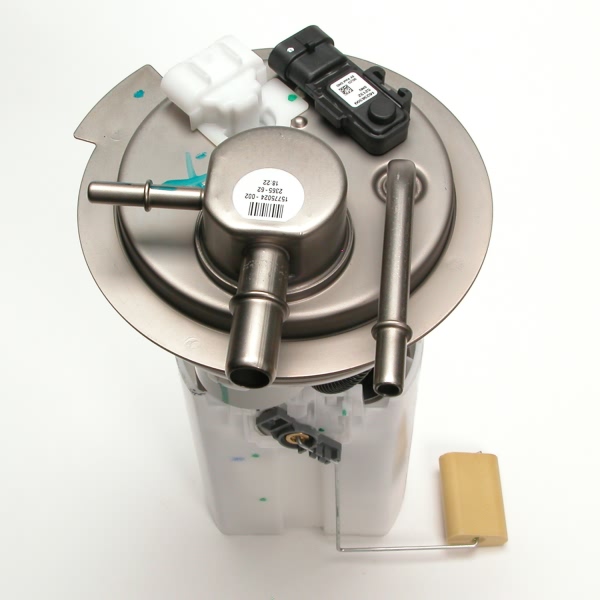

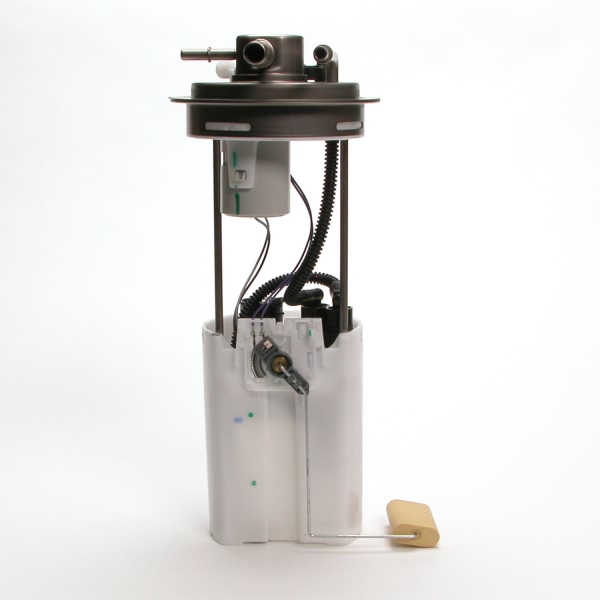

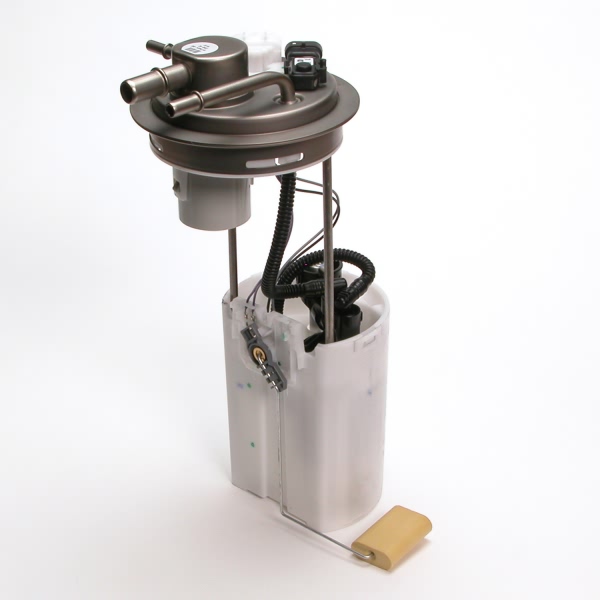

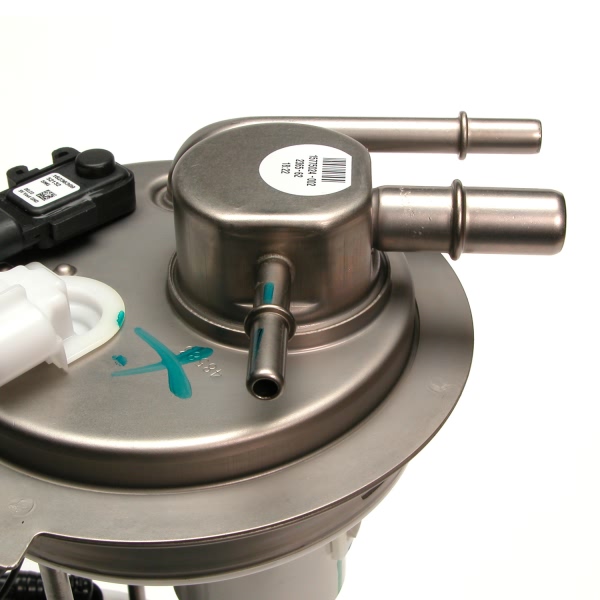

| Part Description | Fuel Pump Module Assembly |
| Current Draw | 11 |
| Flow Rating | 28 gph |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Flex |
| Gasket or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Maximum Pressure | 73.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 3 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 250.0 |
| Resistance Ohms Full | 40.0 |
| Strainer Included | Yes |
| System Pressure | 54 psi |

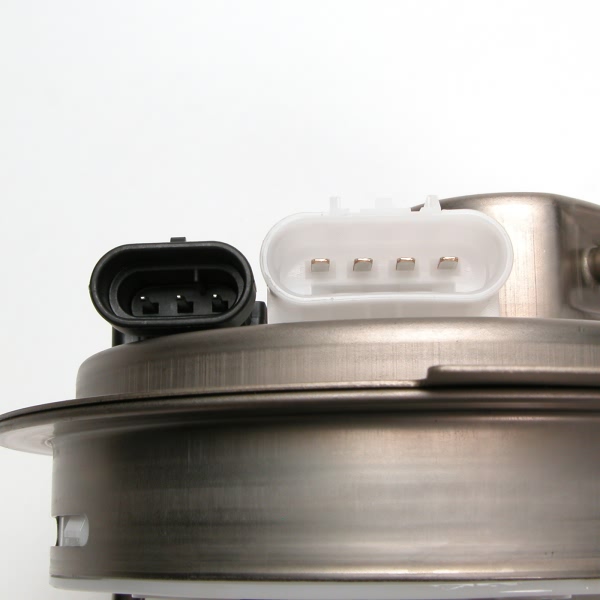

| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| UPC | 689604160374 |
| Vapor Pressure Sensor | Yes |
| Voltage | 12.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2006 Chevrolet Express 1500 | Base | 8 Cyl 5.3L |
| 2004-2006 Chevrolet Express 1500 | LS | 8 Cyl 5.3L |
| 2005-2006 Chevrolet Express 1500 | LS | 6 Cyl 4.3L |
| 2005-2008 Chevrolet Express 1500 | Base | 6 Cyl 4.3L |
| 2006 Chevrolet Express 1500 | LT | 6 Cyl 4.3L |
| 2006 Chevrolet Express 1500 | LT | 8 Cyl 5.3L |
| 2007 Chevrolet Express 1500 | All Trims | 8 Cyl 5.3L |
| 2004-2005 Chevrolet Express 2500 | Base | 8 Cyl 5.3L |
| 2004-2005 Chevrolet Express 2500 | LS | 8 Cyl 5.3L |
| 2004-2006 Chevrolet Express 2500 | LS | 8 Cyl 4.8L |
