Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FG0514 |

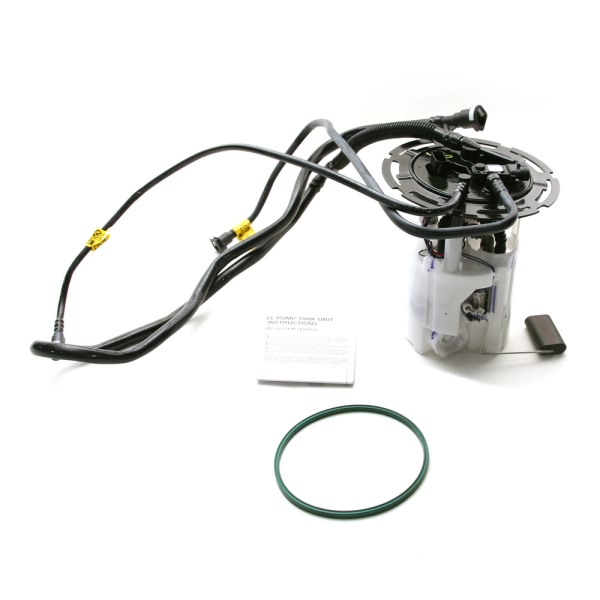

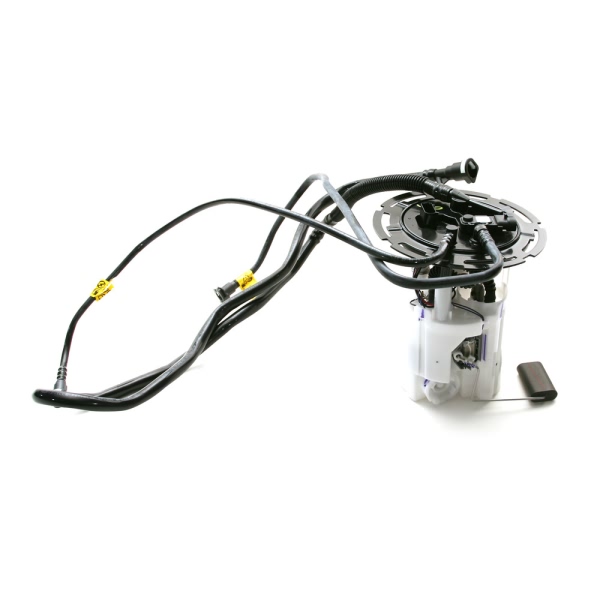

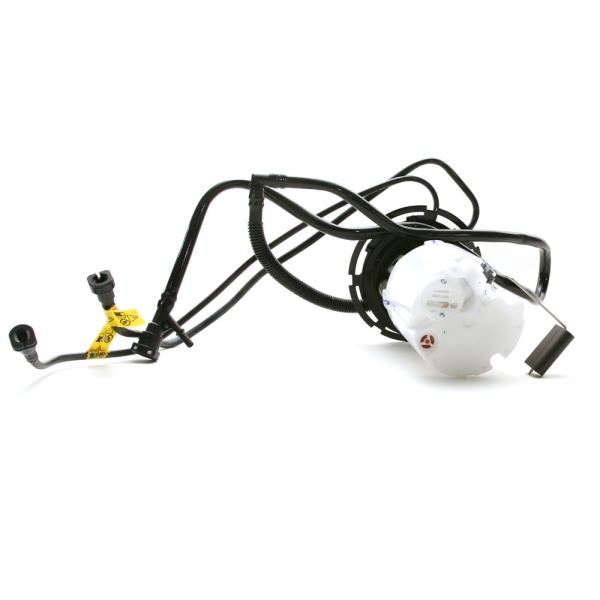

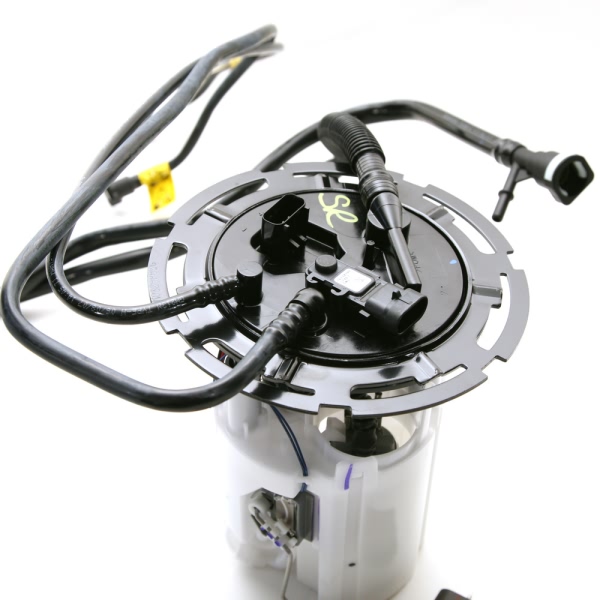

| Part Description | Fuel Pump Module Assembly |
| Current Draw | 16 |
| Flow Rating | 32 gph |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 80.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 3 |

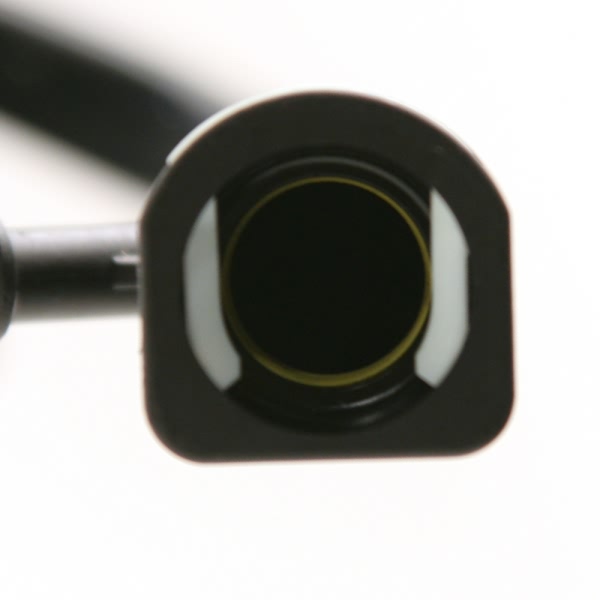

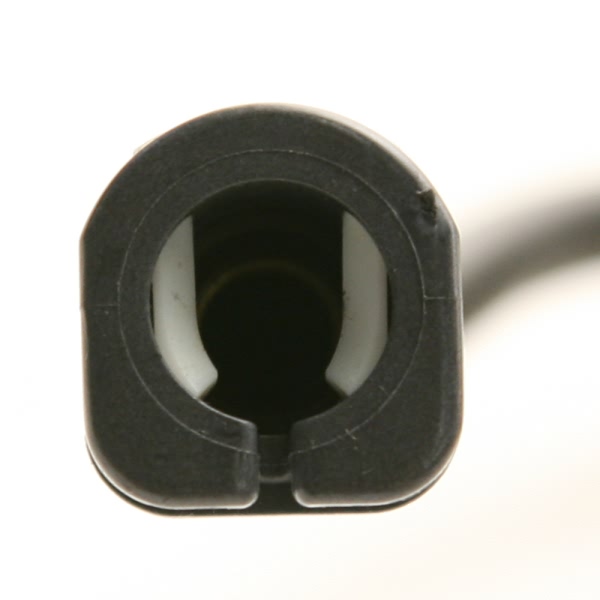

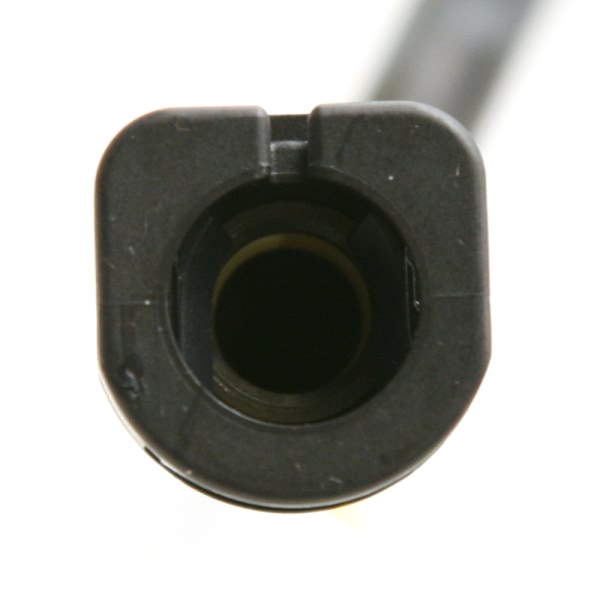

| Outlet Type | Female Quick Connect |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 40.0 |
| Resistance Ohms Full | 250.0 |
| Strainer Included | Yes |
| System Pressure | 44 psi |

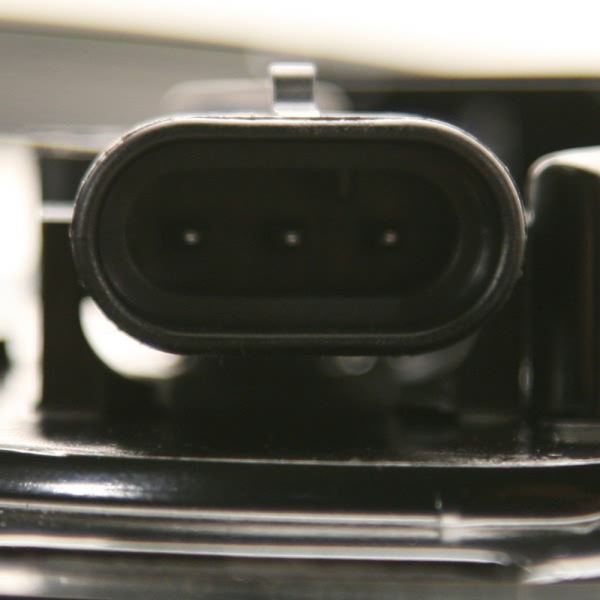

| Terminal Gender | Male |
| Terminal Quantity | 3 |
| Terminal Type | Pin |
| UPC | 689604190654 |
| Vapor Pressure Sensor | Yes |
| Voltage | 12.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2003 Saab 9-3 | Arc | 4 Cyl 2.0L |
| 2003 Saab 9-3 | Linear | 4 Cyl 2.0L |
| 2003 Saab 9-3 | Vector | 4 Cyl 2.0L |
| 2004-2011 Saab 9-3 | All Trims | 4 Cyl 2.0L |
