Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FG0978 |

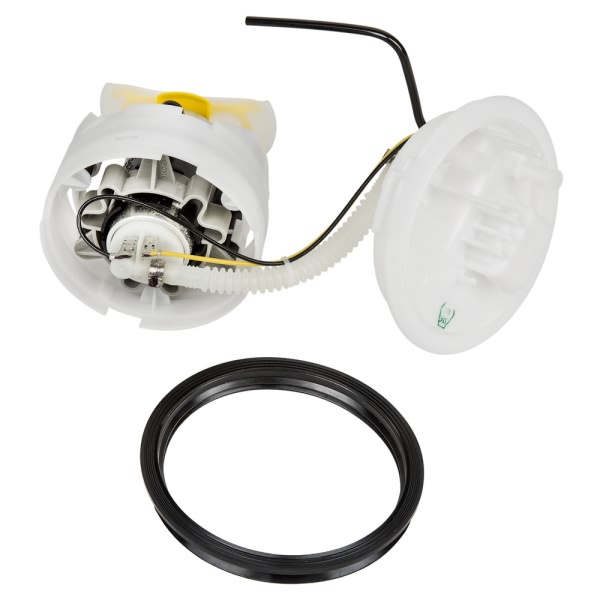

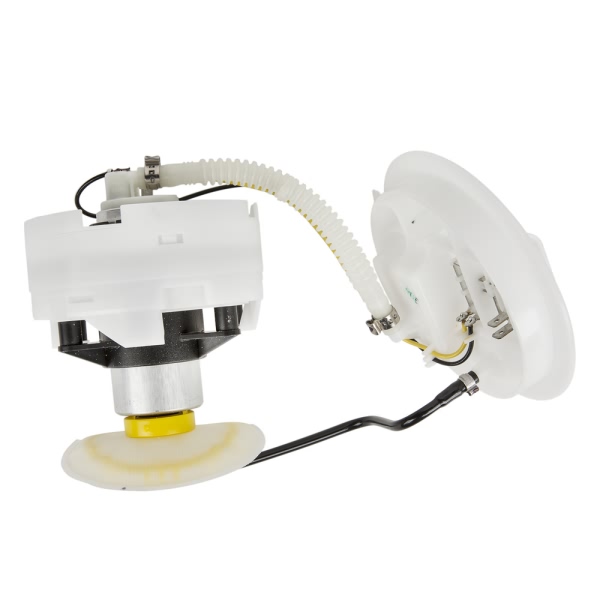

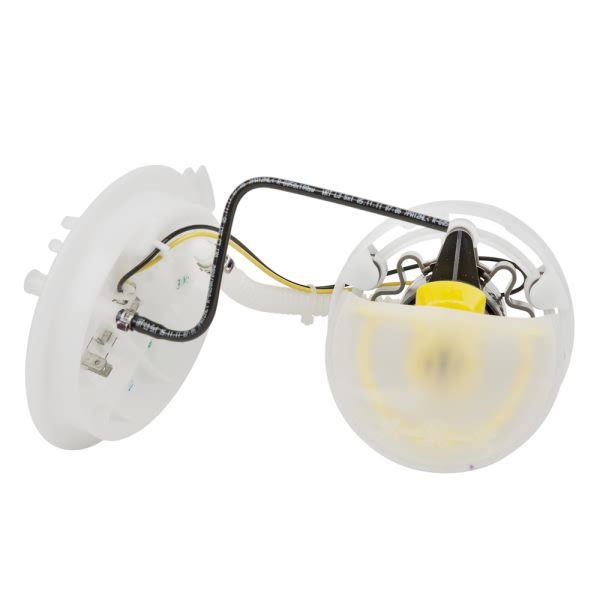

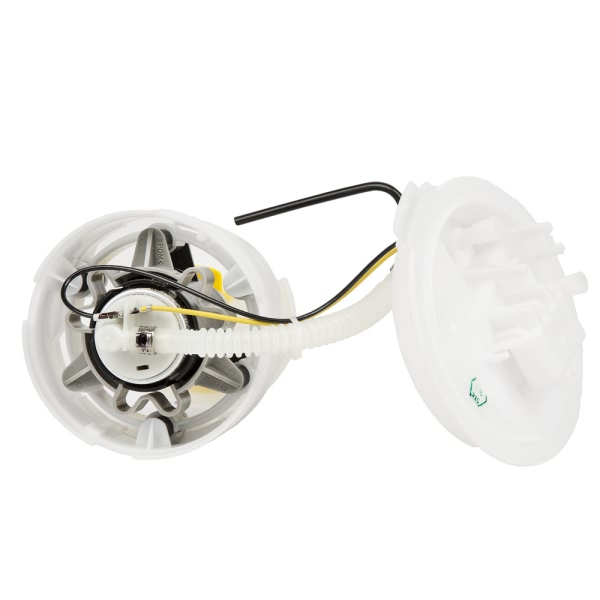

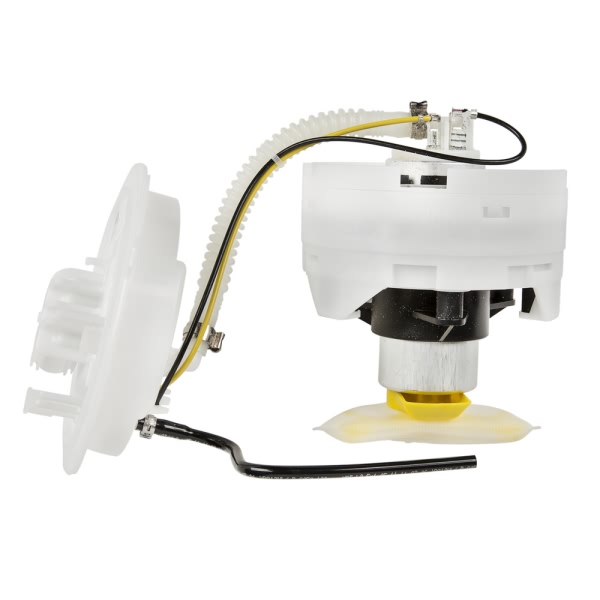

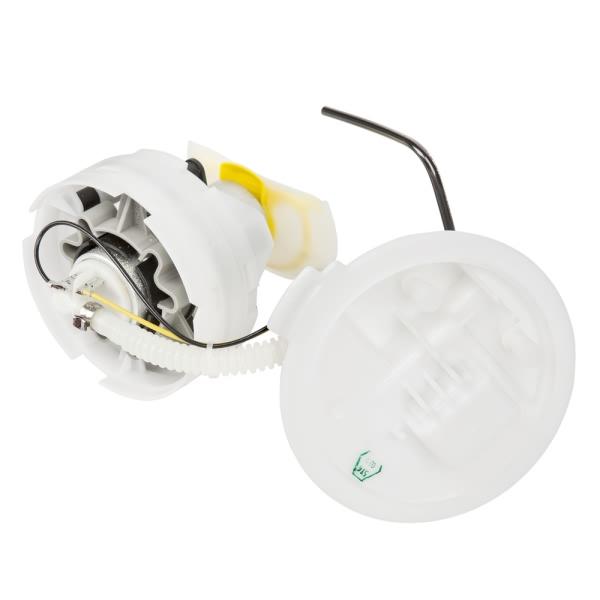

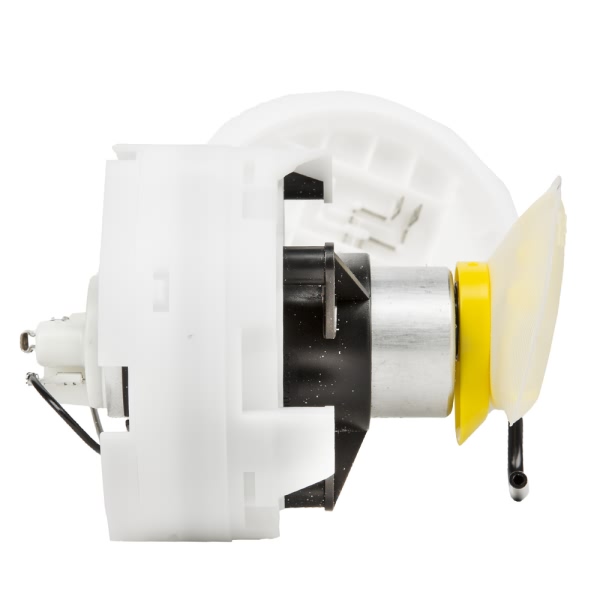

| Part Description | Fuel Pump Module Assembly |
| Current Draw | 9 |
| Flow Rating | 40 gph |
| Fuel Level Sender Assembly Included | No |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 87.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Regulator Included | No |
| Strainer Included | Yes |
| System Pressure | 51 psi |

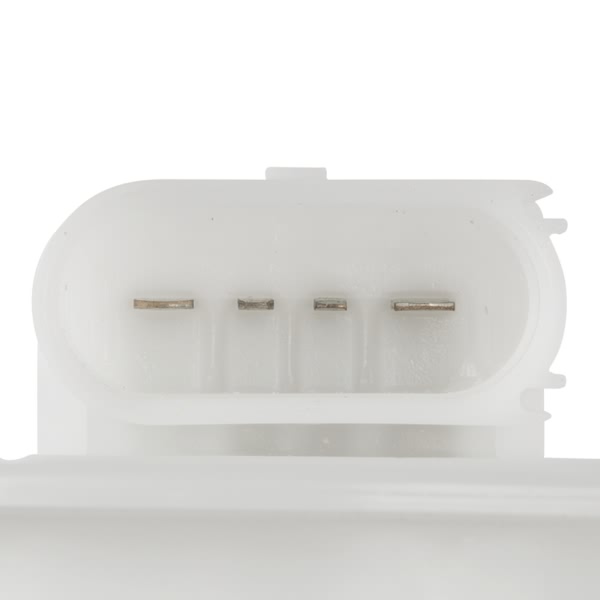

| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| UPC | 689604214183 |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2002-2004 Audi A4 Quattro | All Trims | 6 Cyl 3.0L |
| 2002-2005 Audi A4 Quattro | All Trims | 4 Cyl 1.8L |
| 2005 Audi A4 Quattro | Avant | 6 Cyl 3.0L |
| 2005 Audi A4 Quattro | Base | 6 Cyl 3.0L |
| 2005 Audi A4 Quattro | Cabriolet | 6 Cyl 3.0L |
