Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FG1297 |

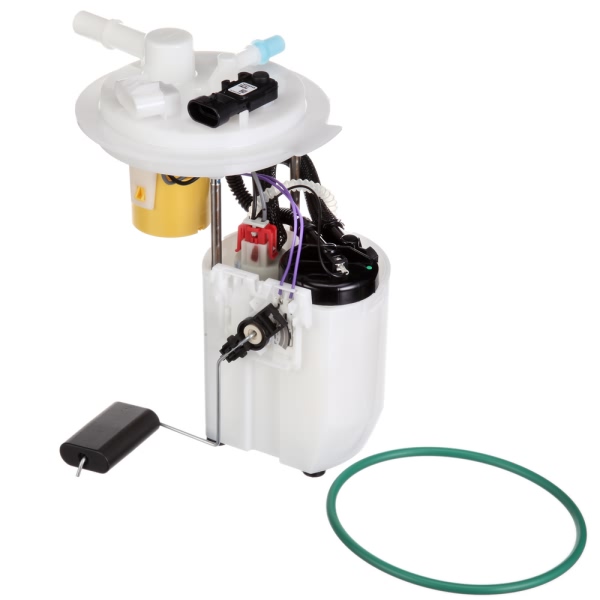

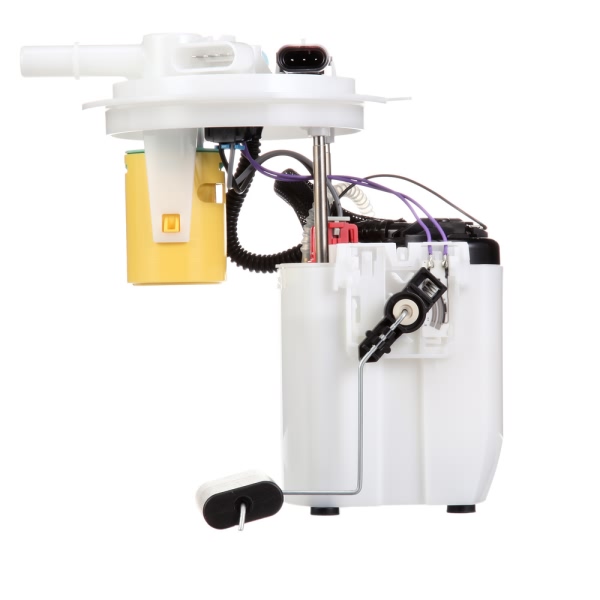

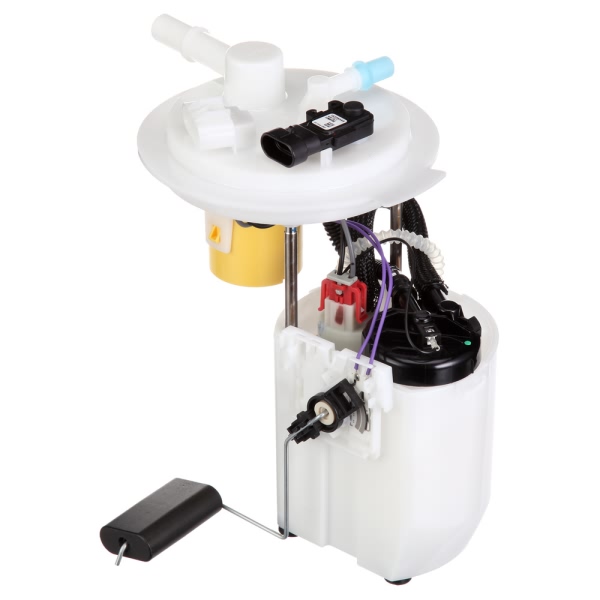

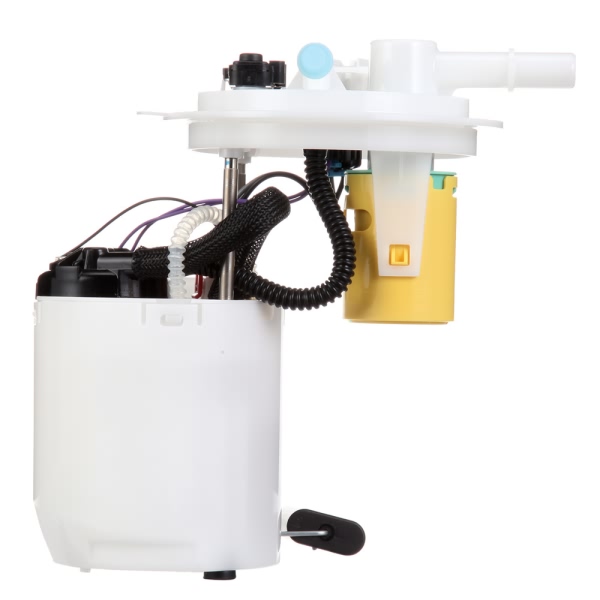

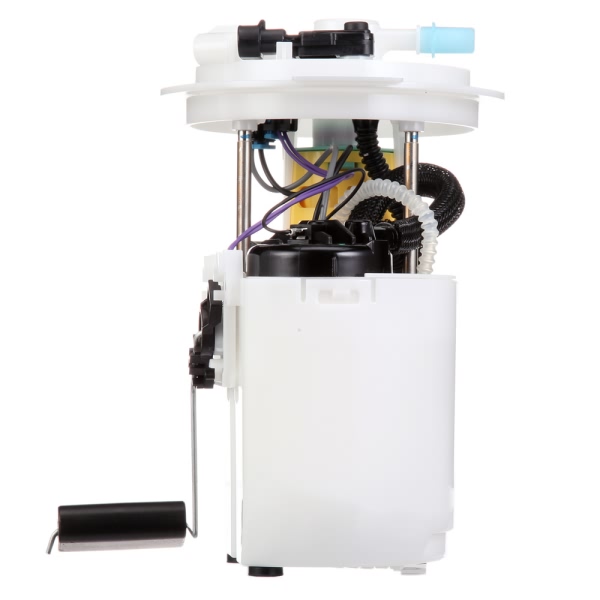

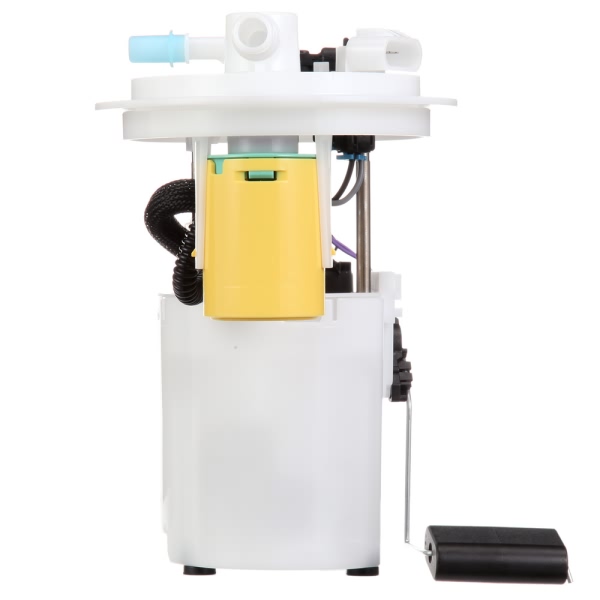

| Part Description | Fuel Pump Module Assembly |
| Current Draw | 10 |
| Flow Rating | 20 gph |
| Fuel Level Sender Assembly Included | No |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Maximum Pressure | 78.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 250.0 |
| Resistance Ohms Full | 40.0 |
| Strainer Included | Yes |
| System Pressure | 49 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| UPC | 689604230992 |
| Vapor Pressure Sensor | Yes |
| Voltage | 13.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2008 Buick Enclave | All Trims | 6 Cyl 3.6L |
| 2007-2008 GMC Acadia | All Trims | 6 Cyl 3.6L |
| 2007-2008 Saturn Outlook | All Trims | 6 Cyl 3.6L |
