Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FG1347 |

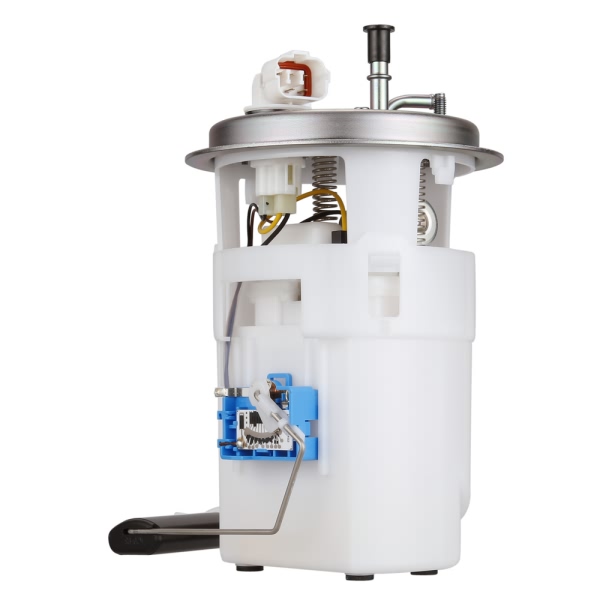

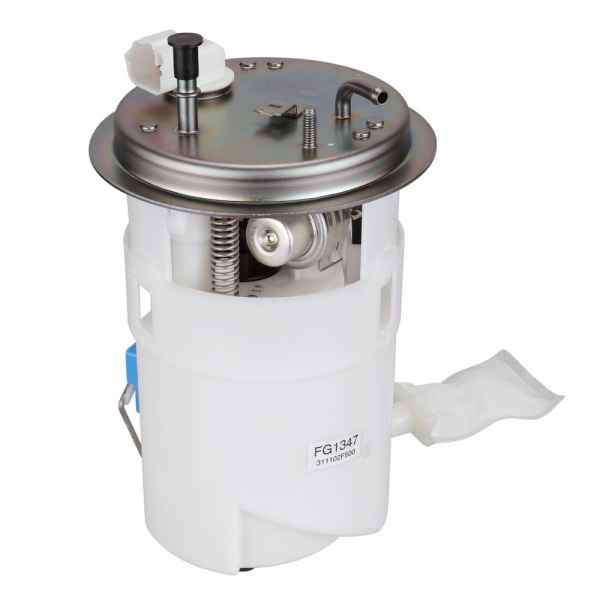

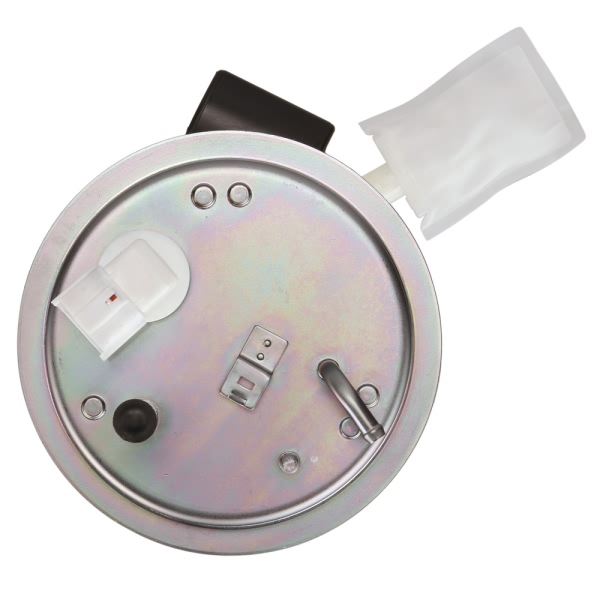

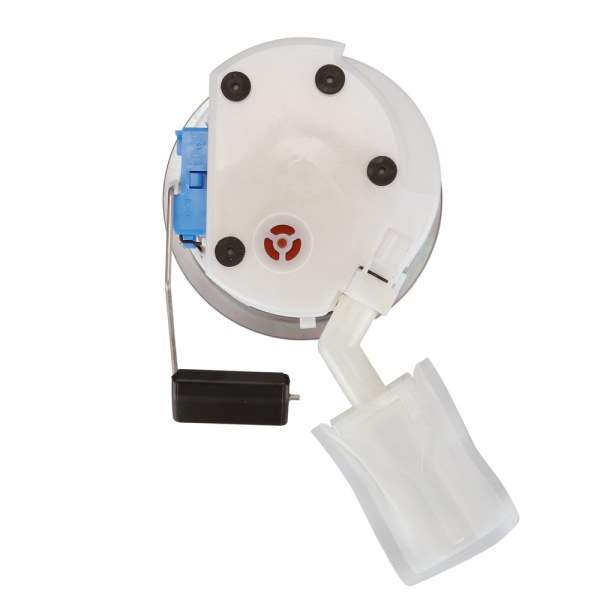

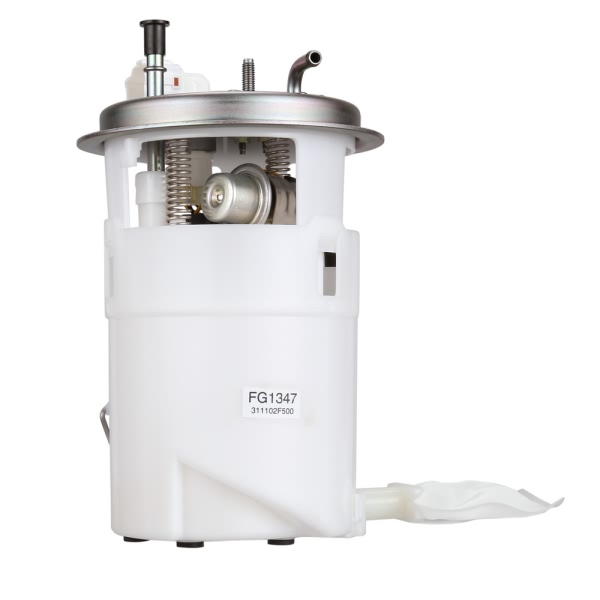

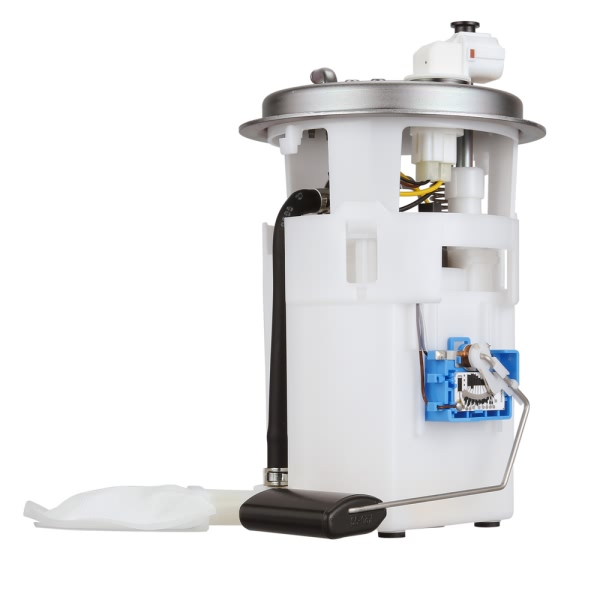

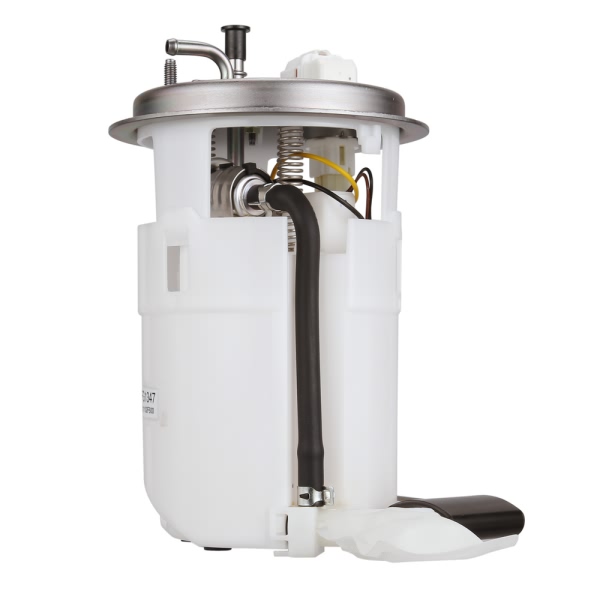

| Part Description | Fuel Pump Module Assembly |
| Current Draw | 5 |
| Flow Rating | 45 gph |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket or Seal Included | No |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 49.0 PSI |
| Outlet Outside Diameter | 0.313'' |
| Outlet Quantity | 1 |
| Outlet Type | Hose |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 200.0 |
| Resistance Ohms Full | 10.0 |
| Strainer Included | Yes |
| System Pressure | 44 psi |

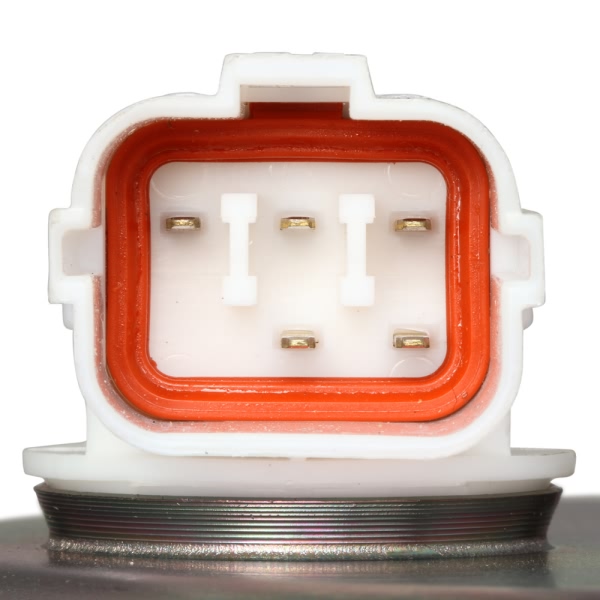

| Terminal Gender | Male |
| Terminal Quantity | 5 |
| Terminal Type | Blade |
| UPC | 689604233115 |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2006 Kia Spectra | All Trims | 4 Cyl 2.0L |
| 2005-2006 Kia Spectra5 | All Trims | 4 Cyl 2.0L |
