Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FG1738 |

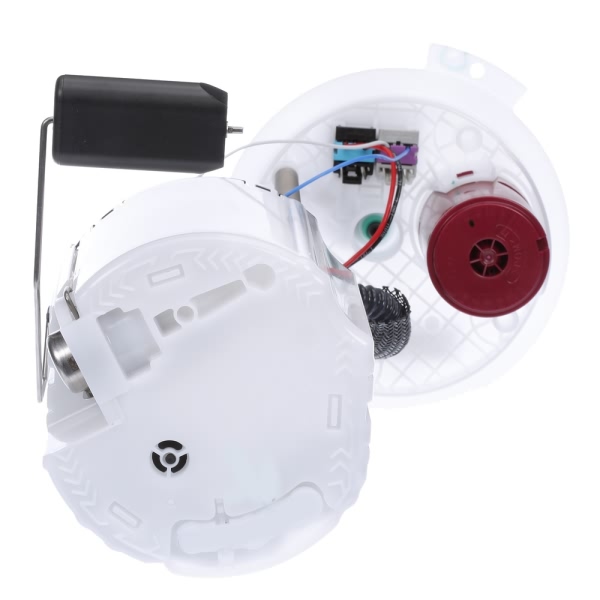

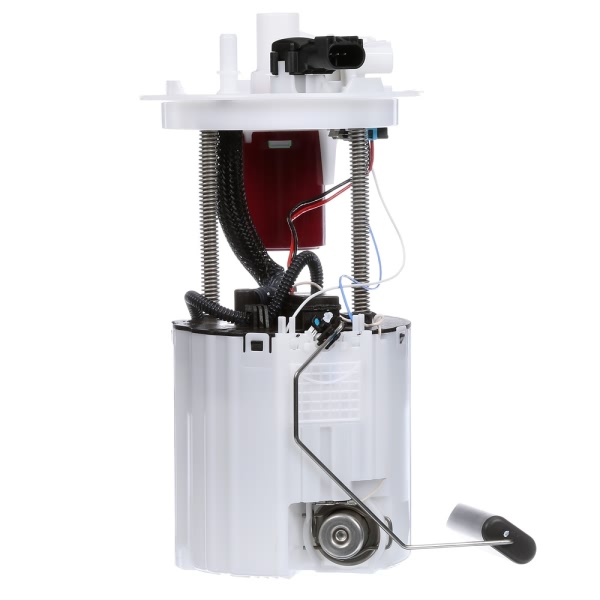

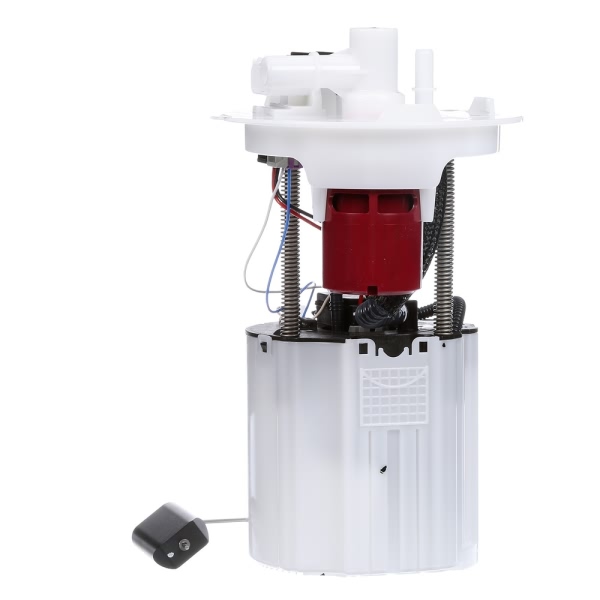

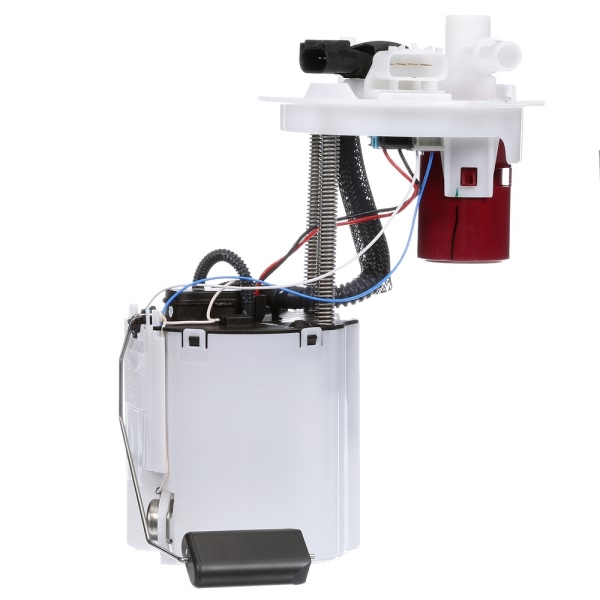

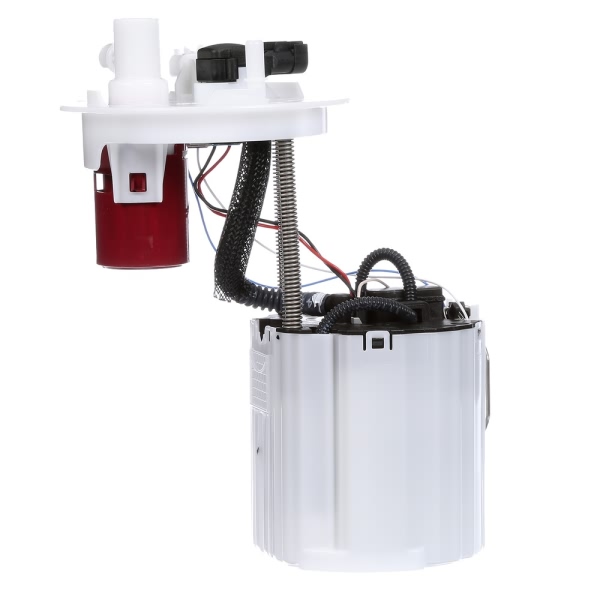

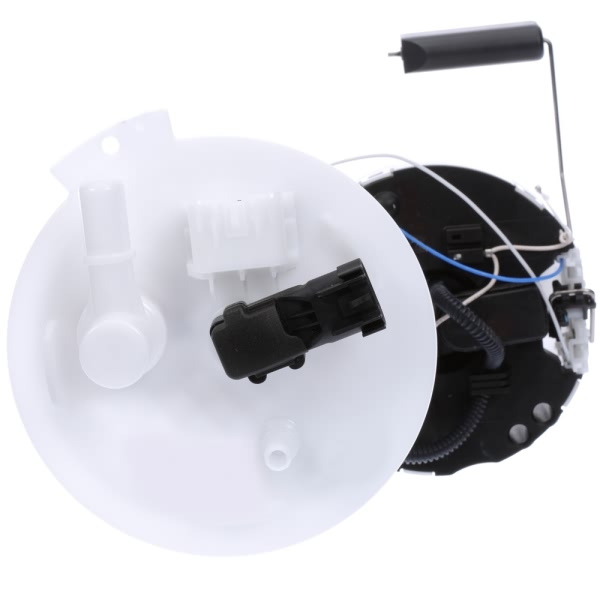

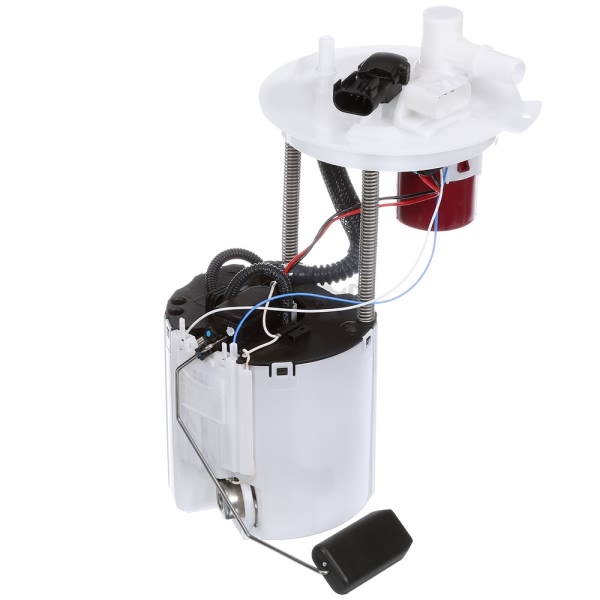

| Part Description | Fuel Pump Module Assembly |
| Current Draw | 10 |
| Flow Rating | 35 gph |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 85.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 250.0 |
| Resistance Ohms Full | 40.0 |
| Strainer Included | Yes |
| System Pressure | 58 psi |

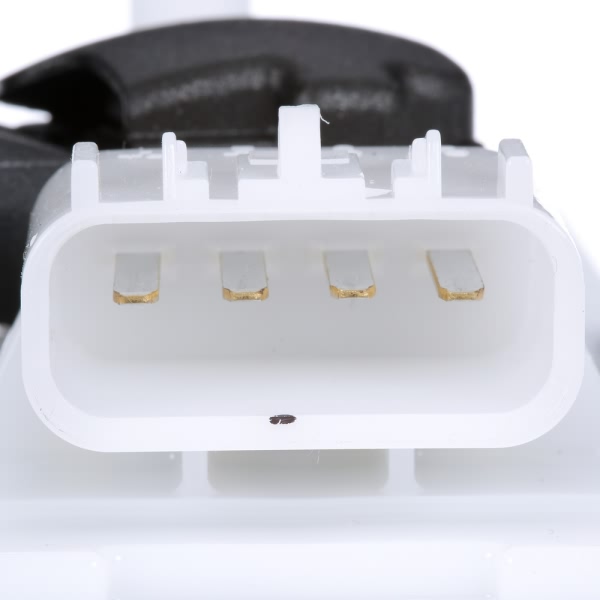

| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| UPC | 689604269749 |
| Vapor Pressure Sensor | Yes |
| Voltage | 12.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2016-2018 Buick Cascada | All Trims | 4 Cyl 1.6L |
| 2013-2016 Buick Verano | All Trims | 4 Cyl 2.0L |
| 2014-2017 Buick Verano | All Trims | 4 Cyl 2.4L |
| 2011-2013 Chevrolet Cruze | Eco | 4 Cyl 1.4L |
| 2011-2013 Chevrolet Cruze | LT | 4 Cyl 1.4L |
| 2011-2013 Chevrolet Cruze | LTZ | 4 Cyl 1.4L |
| 2013-2015 Chevrolet Cruze | All Trims | 4 Cyl 1.8L |
| 2014-2015 Chevrolet Cruze | All Trims | 4 Cyl 1.4L |
| 2016 Chevrolet Cruze Limited | All Trims | 4 Cyl 1.4L |
| 2016 Chevrolet Cruze Limited | All Trims | 4 Cyl 1.8L |
