Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FG1981 |

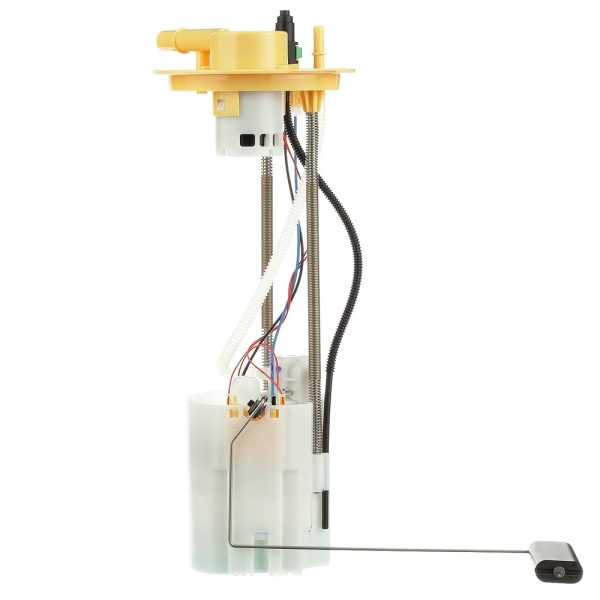

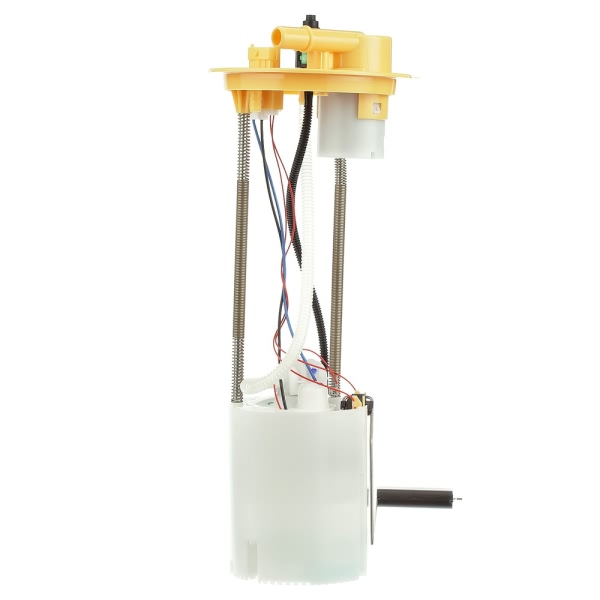

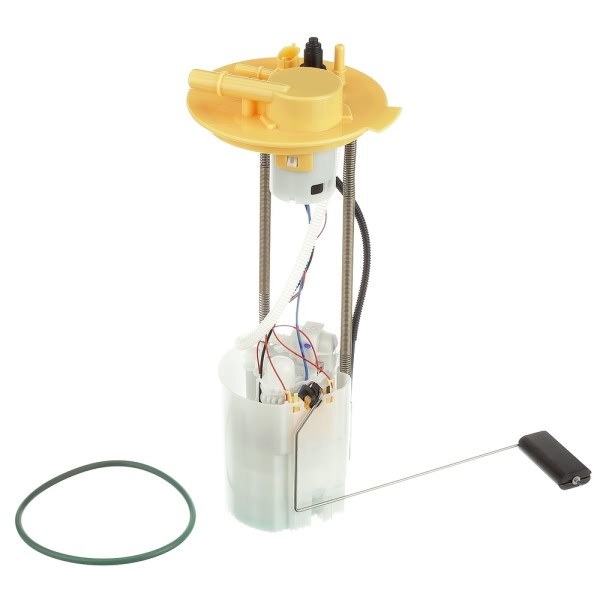

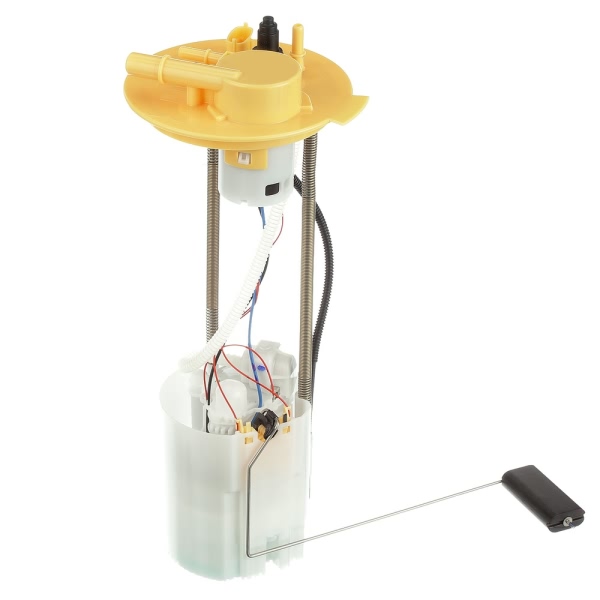

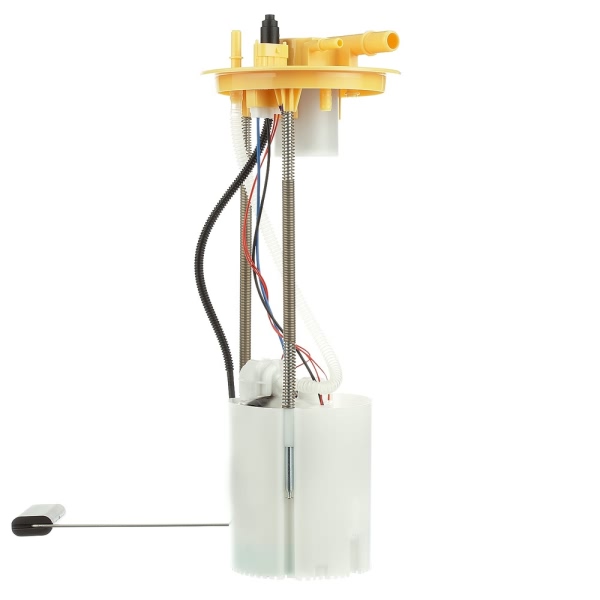

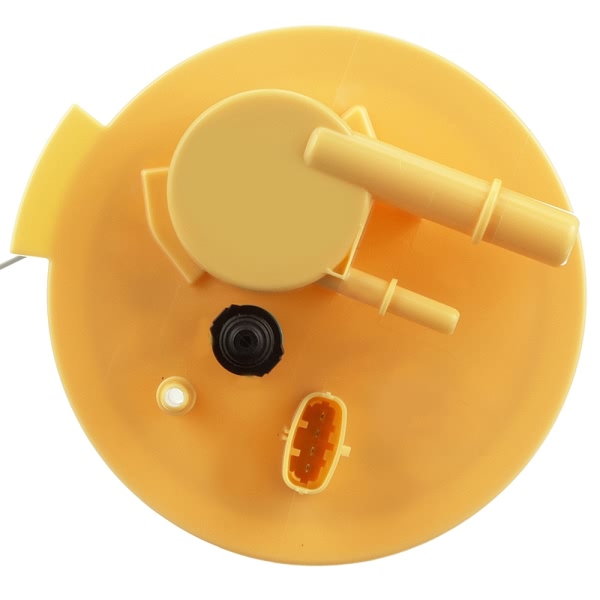

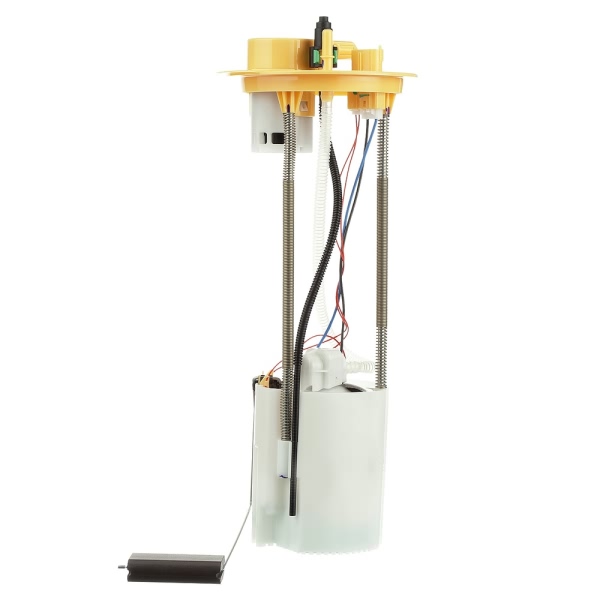

| Part Description | Fuel Pump Module Assembly |
| Average Current Draw | 10 |
| Average Flow Rating | 48 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Diesel |
| Gasket or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 102.0 |
| Outlet Outside Diameter | 0.313 |
| Outlet Quantity | 4 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 300.0 |
| Resistance Ohms Full | 20.0 |
| Strainer Included | Yes |
| System Pressure | 65 psi |

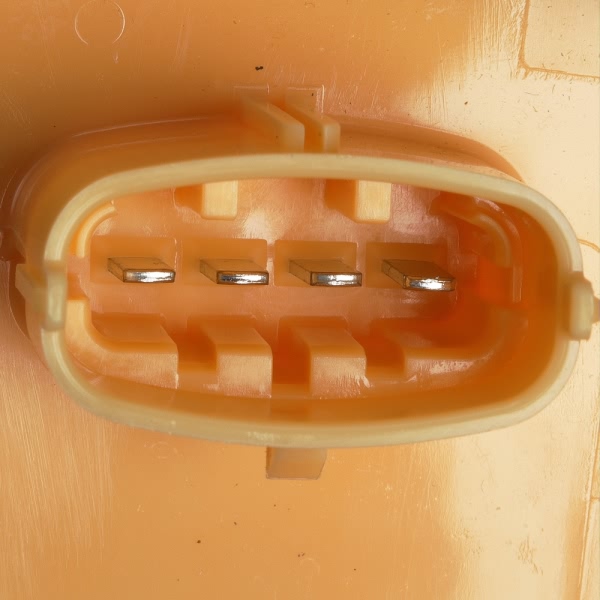

| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| UPC | 689604272046 |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2014-2019 Ram ProMaster 1500 | All Trims | 6 Cyl 3.6L |
| 2014-2019 Ram ProMaster 2500 | All Trims | 6 Cyl 3.6L |
| 2014-2019 Ram ProMaster 3500 | All Trims | 6 Cyl 3.6L |
