Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FG1996 |

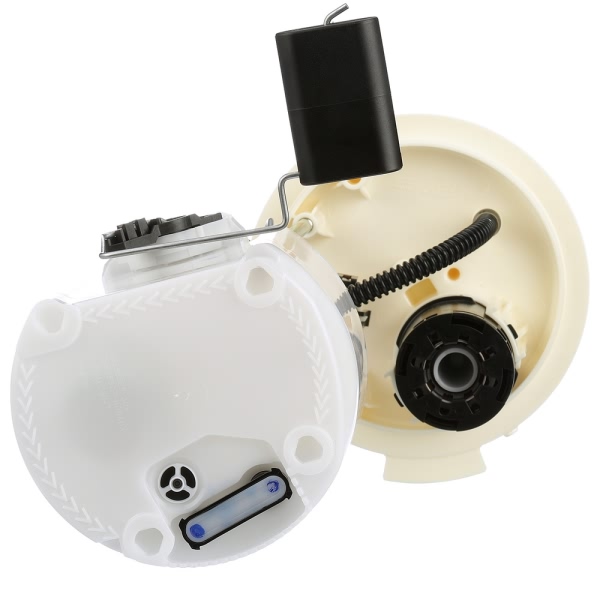

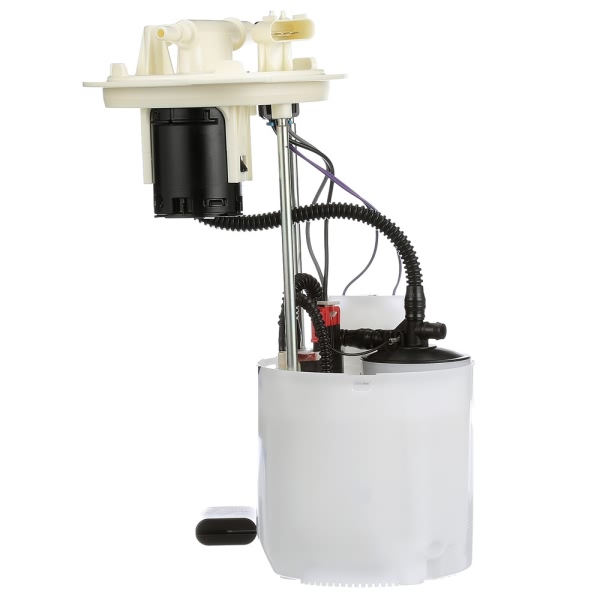

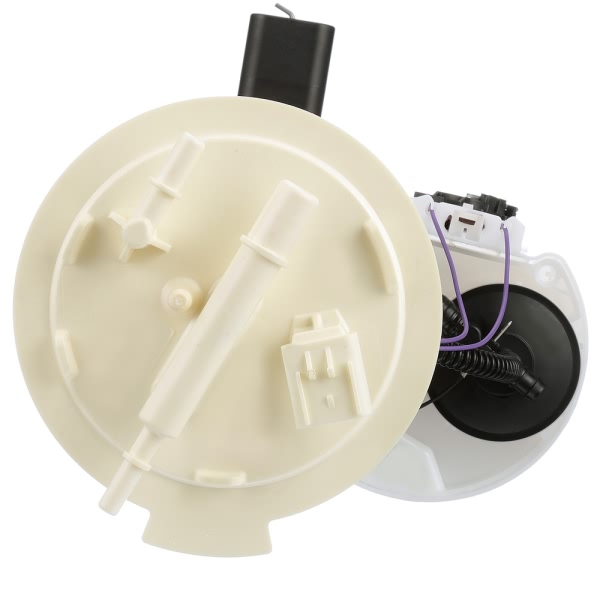

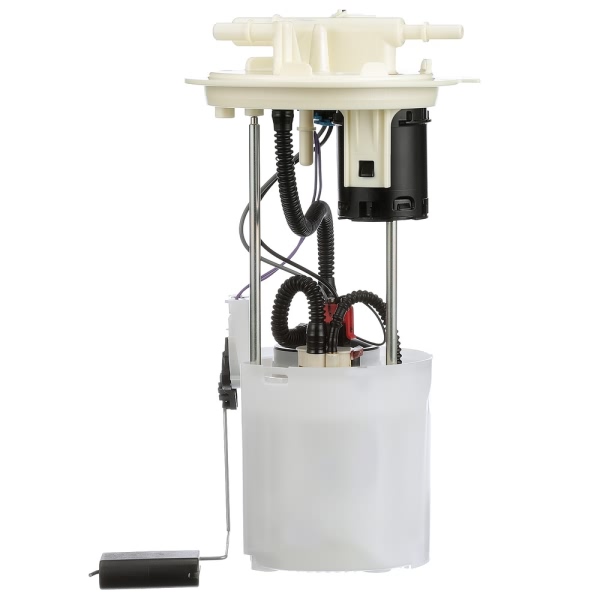

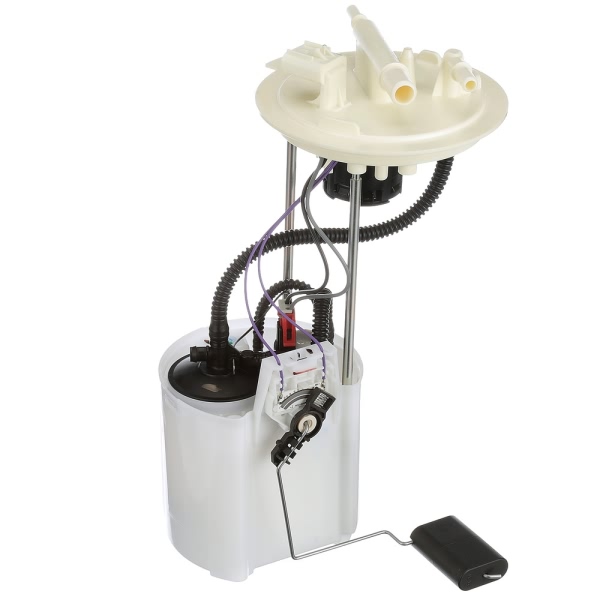

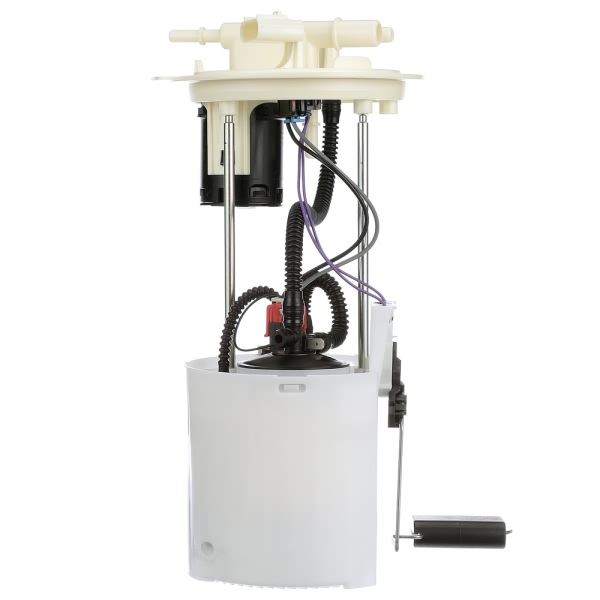

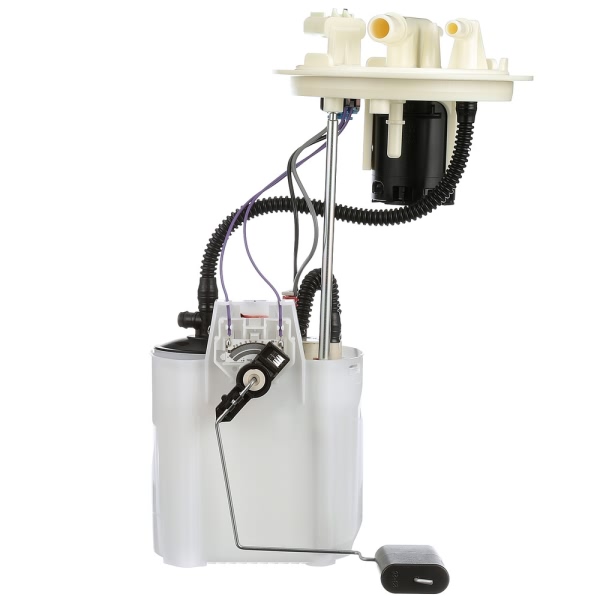

| Part Description | Fuel Pump Module Assembly |
| Current Draw | 10 |
| Flow Rating | 37 gph |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Flex |
| Gasket or Seal Included | No |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Maximum Pressure | 80.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Quantity | 3 |
| Outlet Type | Quick Connect |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 180.0 |
| Resistance Ohms Full | 10.0 |
| Strainer Included | Yes |
| System Pressure | 58 psi |

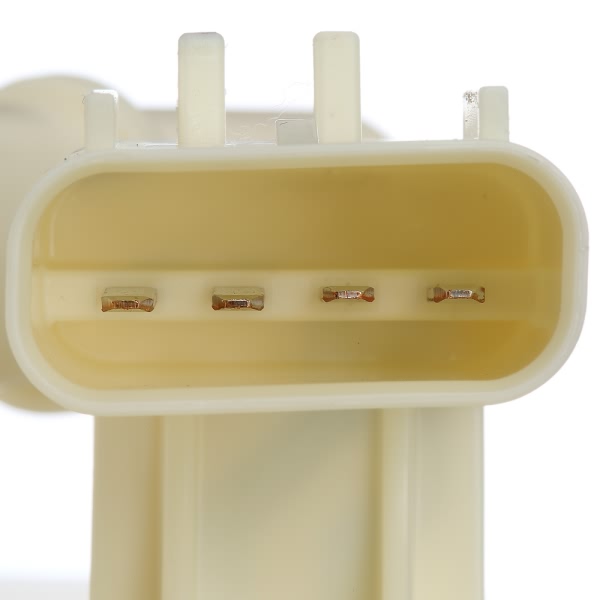

| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| UPC | 689604279625 |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 VDC |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2015-2016 Ford F-150 | All Trims | 6 Cyl 3.5L |
| 2015-2017 Ford F-150 | King Ranch | 8 Cyl 5.0L |
| 2015-2017 Ford F-150 | Lariat | 8 Cyl 5.0L |
| 2015-2017 Ford F-150 | Platinum | 8 Cyl 5.0L |
| 2015-2017 Ford F-150 | XL | 8 Cyl 5.0L |
| 2015-2017 Ford F-150 | XLT | 8 Cyl 5.0L |
| 2016-2017 Ford F-150 | SSV | 8 Cyl 5.0L |
| 2017 Ford F-150 | XL | 6 Cyl 3.5L |
| 2017 Ford F-150 | XLT | 6 Cyl 3.5L |
