Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FE0516 |

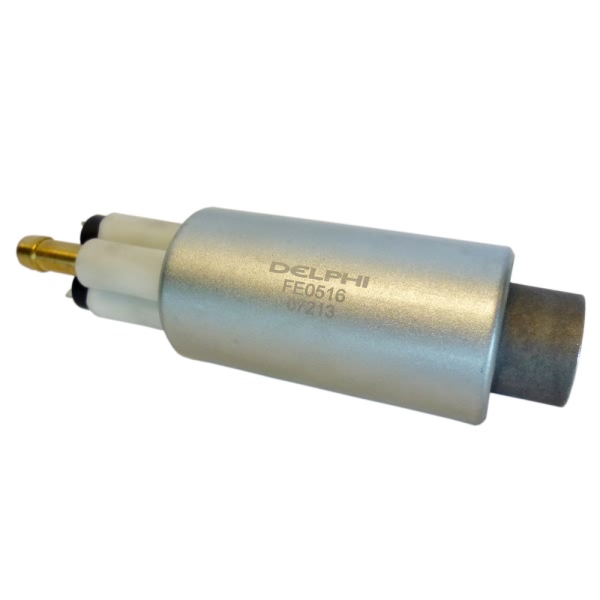

| Part Description | In Tank Electric Fuel Pump |
| Current Draw | 2 |
| Flow Rating | 32 gph |
| Fuel Type | Gas |
| Gasket or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Item Grade | Standard Replacement |
| Maximum Pressure | 36.0 PSI |
| Outlet Outside Diameter | 0.313'' |
| Outlet Type | Hose |
| Pump Type | Electric |
| Strainer Included | No |
| System Pressure | 15 psi |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| UPC | 689604218969 |
| Voltage | 12 VDC |
| Wiring Harness Included | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1987-1988 Chrysler Daytona | Base | 4 Cyl 2.5L |
| 1989-1990 Chrysler Daytona | All Trims | 4 Cyl 2.5L |
| 1988 Chrysler Dynasty | All Trims | 6 Cyl 3.0L |
| 1988-1990 Chrysler Dynasty | All Trims | 4 Cyl 2.5L |
| 1986 Chrysler Laser | All Trims | 4 Cyl 2.2L |
| 1986 Chrysler Laser | All Trims | 4 Cyl 2.5L |
| 1986-1989 Chrysler LeBaron | All Trims | 4 Cyl 2.2L |
| 1986-1990 Chrysler LeBaron | All Trims | 4 Cyl 2.5L |
| 1986-1987 Chrysler New Yorker | All Trims | 4 Cyl 2.5L |
| 1986-1988 Chrysler Town & Country | All Trims | 4 Cyl 2.5L |
