Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | FE0683 |

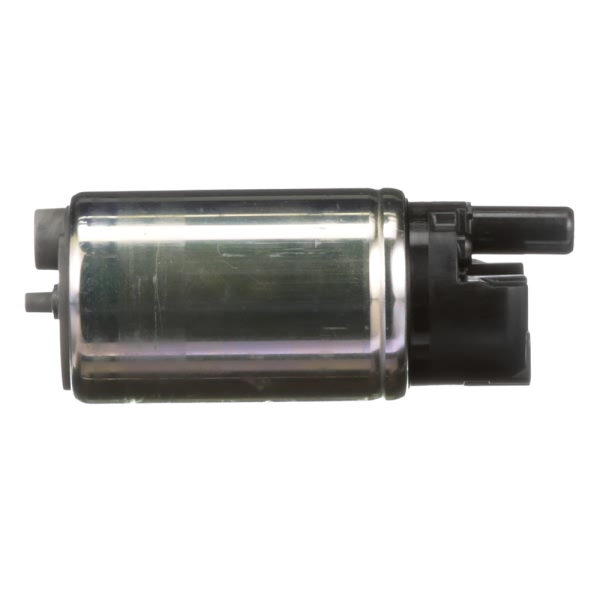

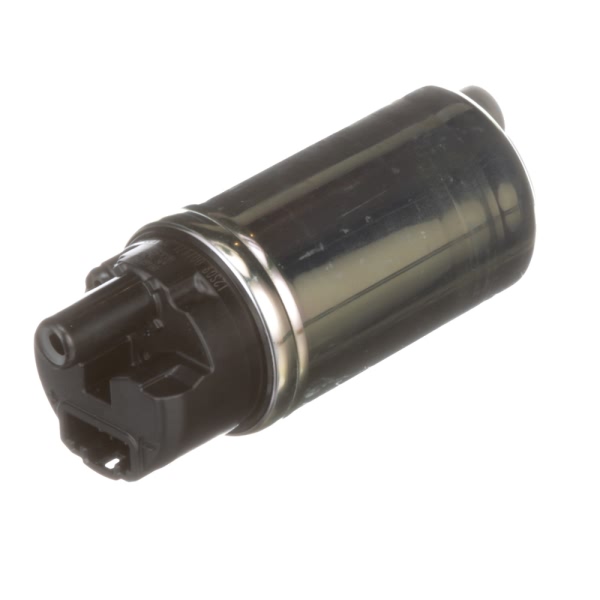

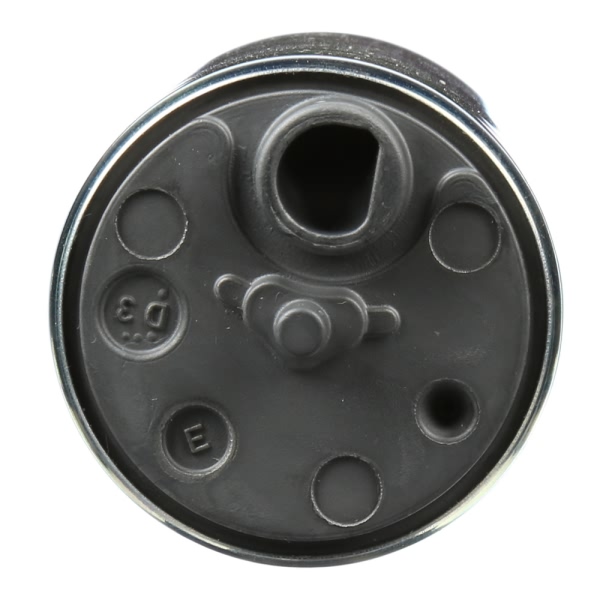

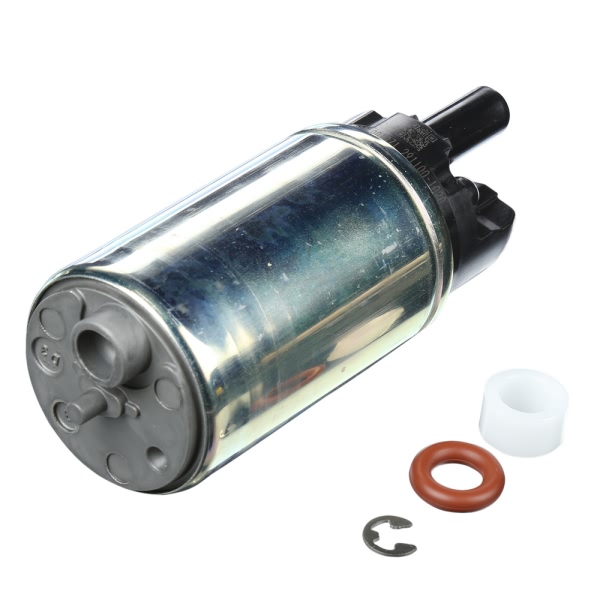

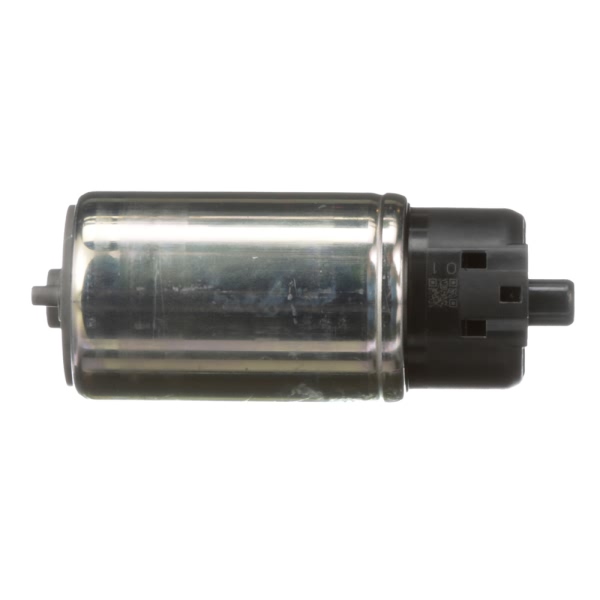

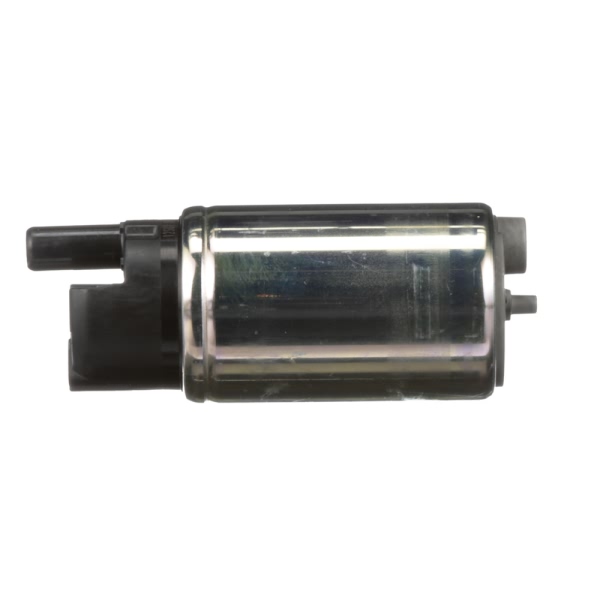

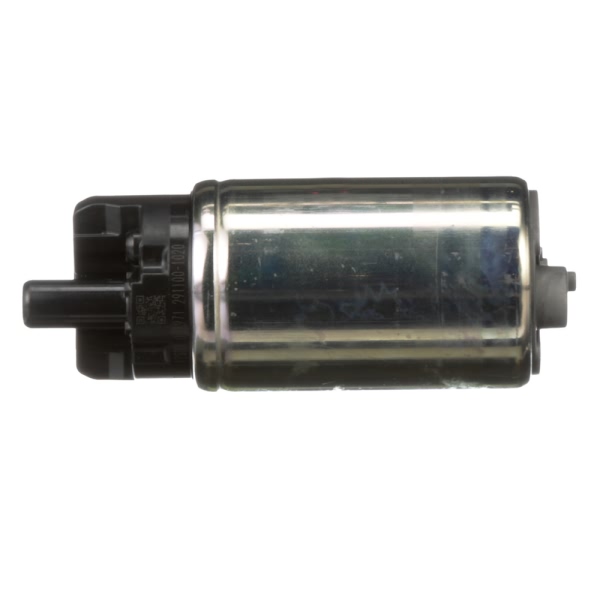

| Part Description | In Tank Electric Fuel Pump |
| Current Draw | 10 |
| Flow Rating | 25 gph |
| Fuel Type | Gas |
| Gasket or Seal Included | No |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Item Grade | Standard Replacement |
| Maximum Pressure | 123.0 PSI |
| Outlet Outside Diameter | 0.375'' |
| Outlet Type | Hose Bead |
| Pump Type | Electric |
| Strainer Included | No |
| System Pressure | 58 psi |

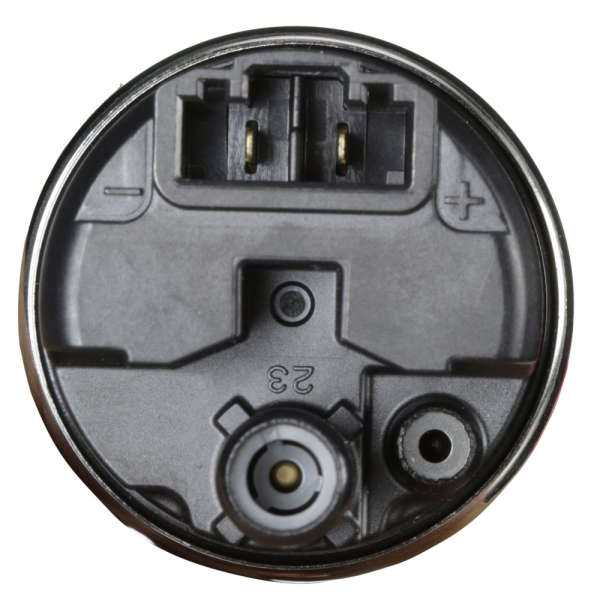

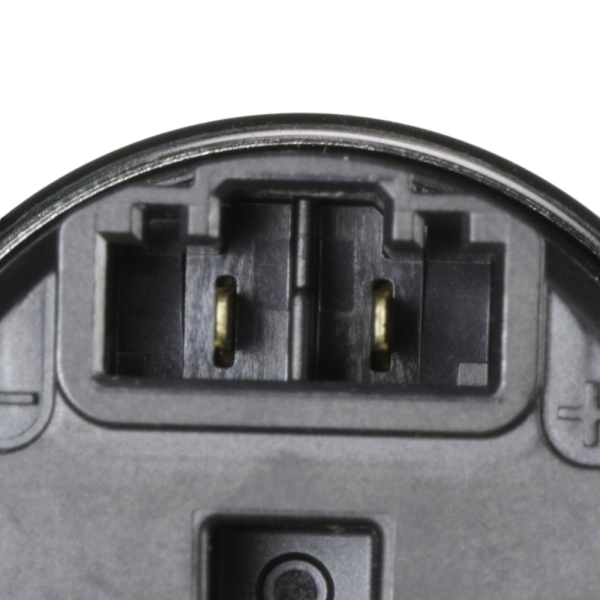

| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Pin |
| UPC | 689604264904 |
| Voltage | 12 VDC |
| Wiring Harness Included | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2013-2018 Mazda 3 | All Trims | 4 Cyl 2.0L |
| 2014-2018 Mazda 3 | All Trims | 4 Cyl 2.5L |
| 2014-2018 Mazda 6 | All Trims | 4 Cyl 2.5L |
| 2013-2016 Mazda CX-5 | All Trims | 4 Cyl 2.0L |
| 2014-2016 Mazda CX-5 | All Trims | 4 Cyl 2.5L |
| 2016 Mazda MX-5 Miata | All Trims | 4 Cyl 2.0L |
