Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | TC5814 |

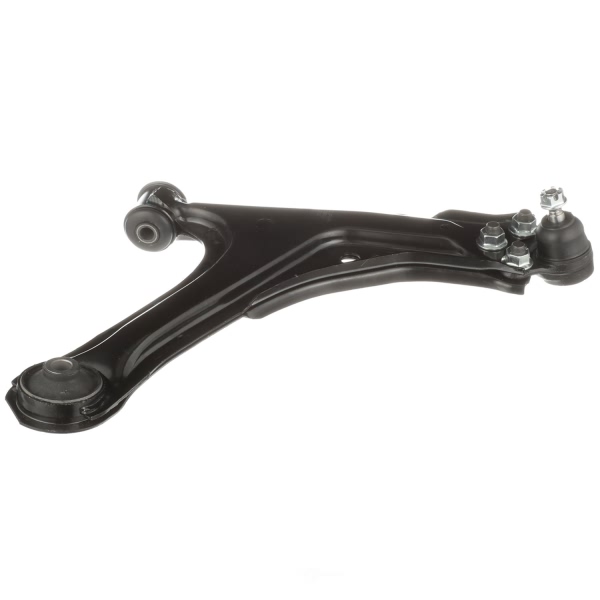

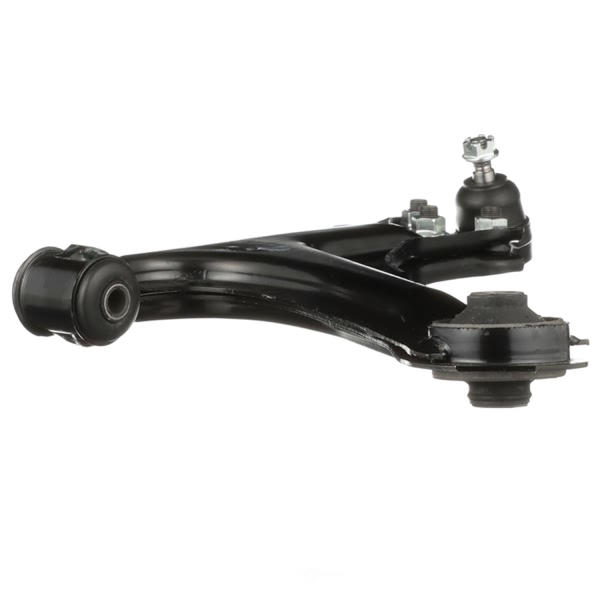

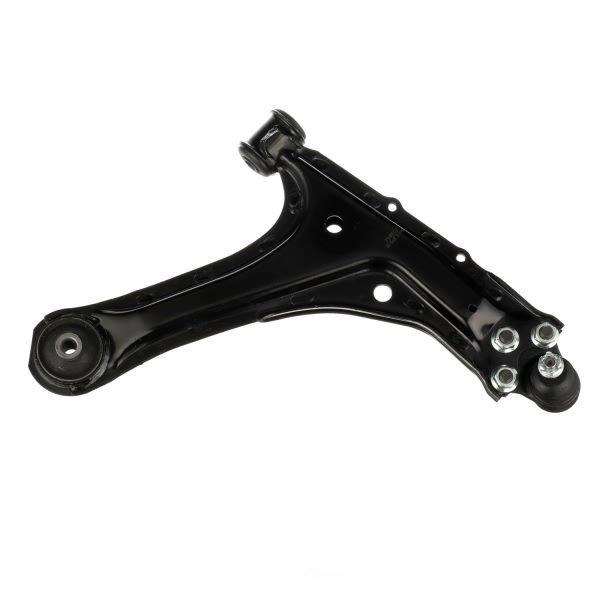

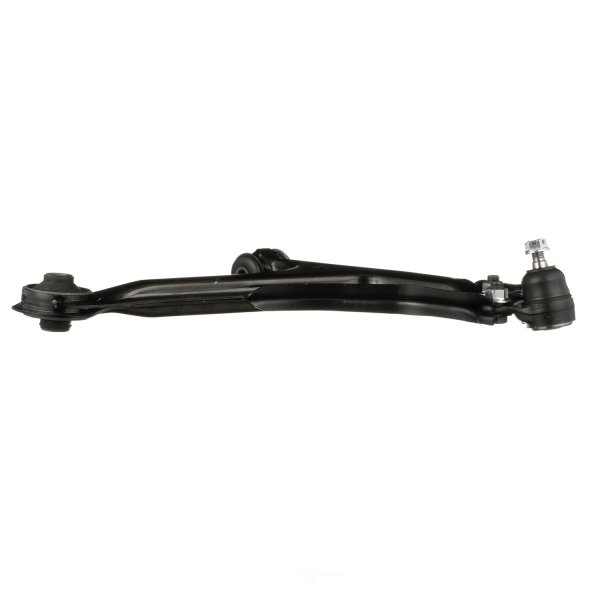

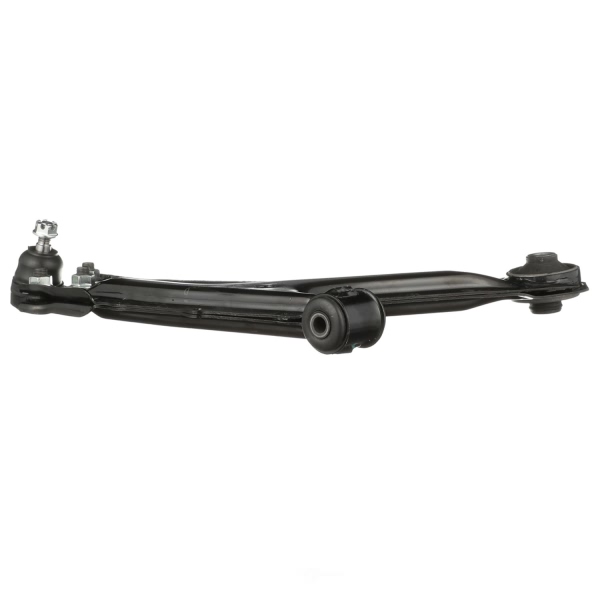

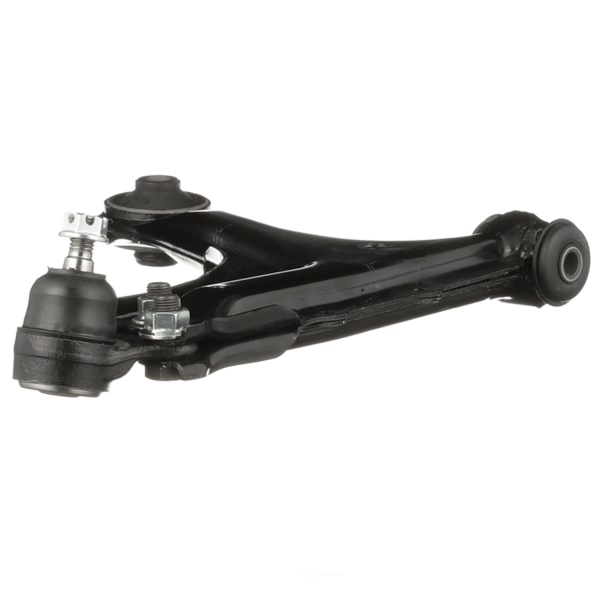

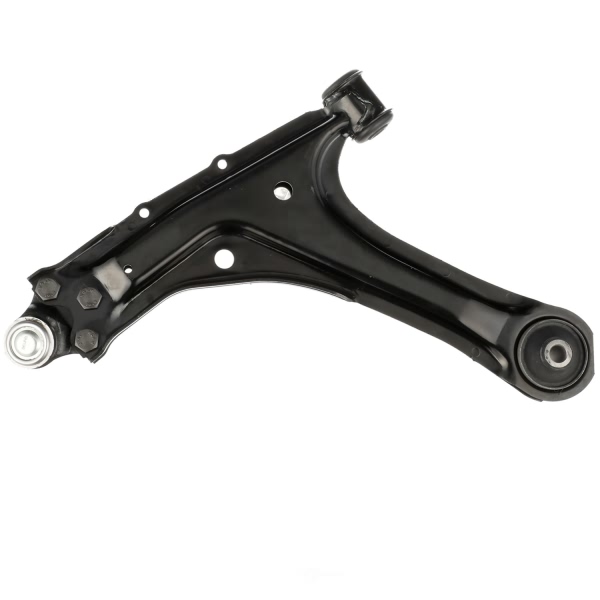

| Part Description | Front Passenger Side Lower Control Arm And Ball Joint Assembly |
| Adjustable | No |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Length | 2.95 or 75.0 |
| Ball Joint Stud Type | Threaded |
| Ball Joint Thread Diameter | 12.0 |
| Bushing Material | Rubber |
| Bushings Included | Yes |
| Control Arm Color | Black |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Control Arm Maximum Length | 16.14 or 410.0 |
| Control Arm Maximum Width | 3.35 or 85.0 |
| Greasable | No |
| Grease Fitting Included | No |
| Item Grade | Standard Replacement |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Pre-Greased | Yes |
| Suspension Grade Type | Light |
| UPC | 689604315644 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1995-2005 Chevrolet Cavalier | All Trims | All Engines |
| 1995-2005 Pontiac Sunfire | All Trims | All Engines |
