Check if it fits by entering your vehicle info| Brand | Delphi |
| Part Number | TC5817 |

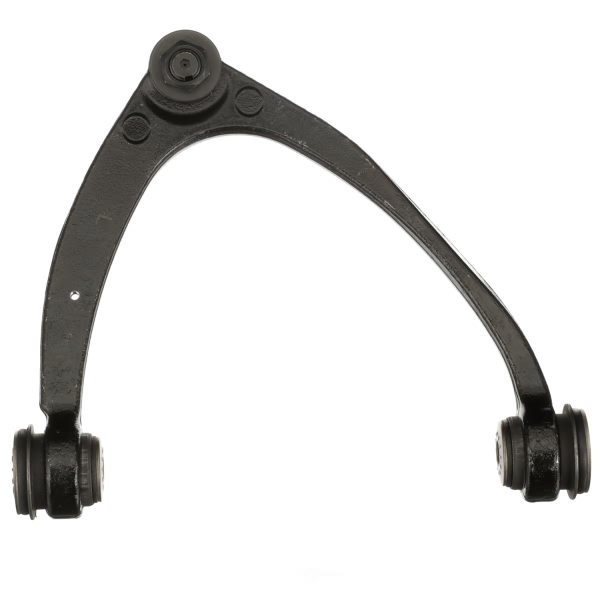

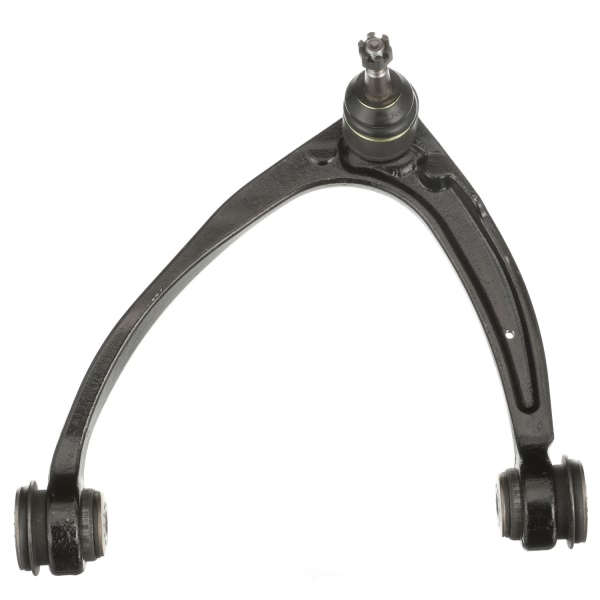

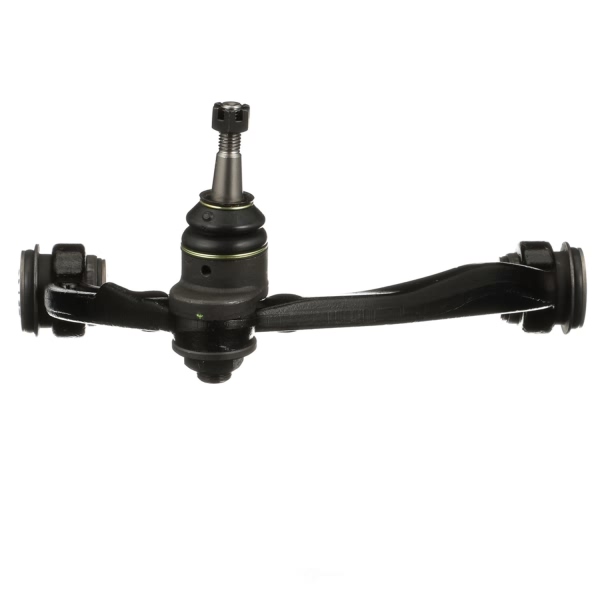

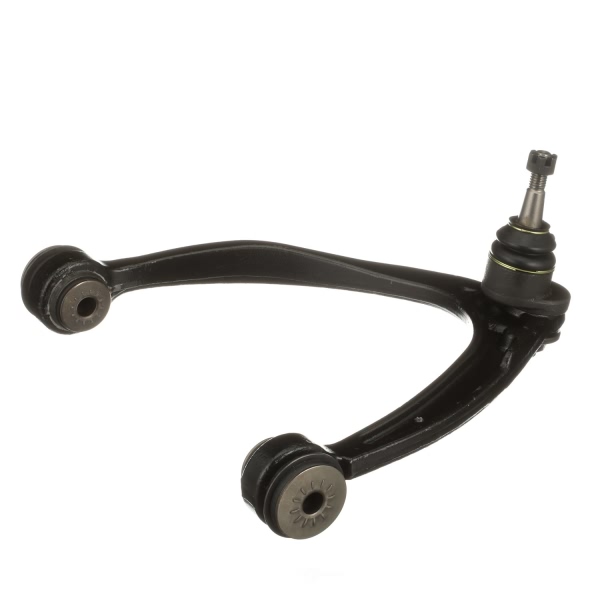

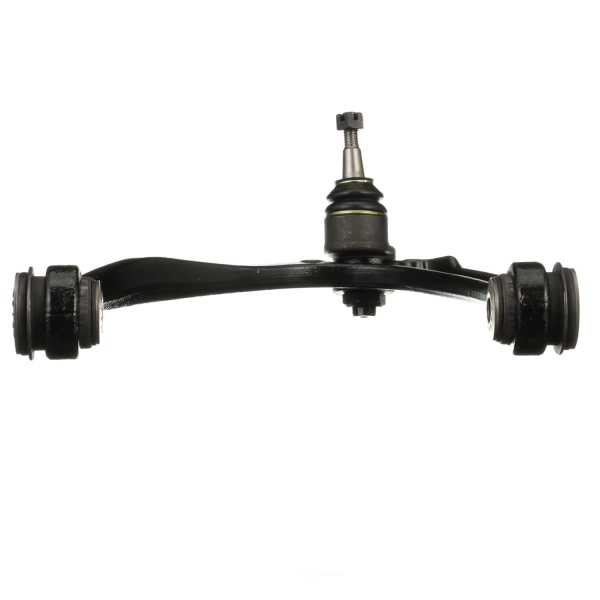

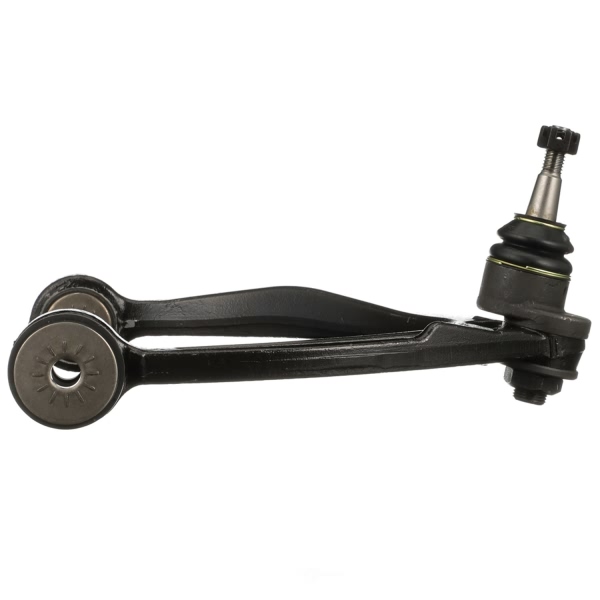

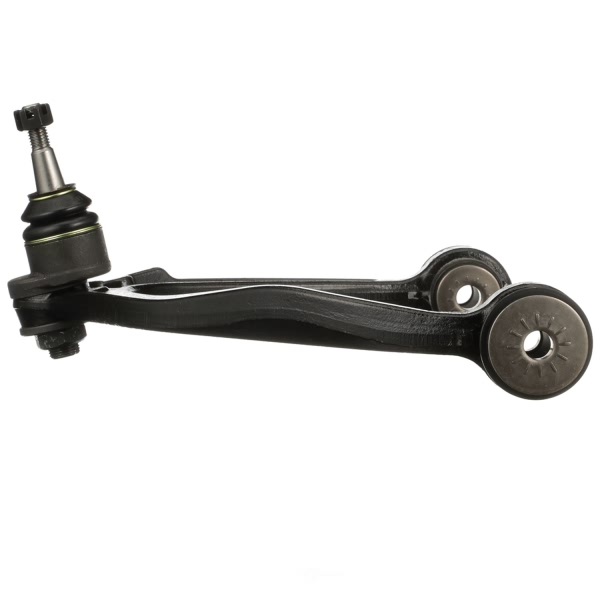

| Part Description | Front Passenger Side Lower Control Arm And Ball Joint Assembly |
| Adjustable | No |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Length | 3.43 or 87.0 |
| Ball Joint Stud Type | Threaded |
| Ball Joint Thread Diameter | 12.0 |
| Bushing Material | Rubber |
| Bushings Included | Yes |
| Control Arm Color | Black |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Control Arm Maximum Length | 18.19 or 462.0 |
| Control Arm Maximum Width | 100.0 or 3.94 |
| Greasable | No |
| Grease Fitting Included | No |
| Item Grade | Standard Replacement |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Pre-Greased | Yes |
| Suspension Grade Type | Light |
| UPC | 689604315675 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2000-2005 Buick LeSabre | All Trims | 6 Cyl 3.8L |
| 1998-2005 Buick Park Avenue | All Trims | 6 Cyl 3.8L |
| 1998-1999 Buick Riviera | All Trims | 6 Cyl 3.8L |
| 2000-2005 Cadillac DeVille | All Trims | 8 Cyl 4.6L |
| 1998-2004 Cadillac Seville | All Trims | 8 Cyl 4.6L |
| 1998-1999 Oldsmobile Aurora | All Trims | 8 Cyl 4.0L |
| 2001-2002 Oldsmobile Aurora | All Trims | 6 Cyl 3.5L |
| 2001-2003 Oldsmobile Aurora | All Trims | 8 Cyl 4.0L |
| 2000-2005 Pontiac Bonneville | All Trims | 6 Cyl 3.8L |
| 2004-2005 Pontiac Bonneville | All Trims | 8 Cyl 4.6L |
