Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Denso |
| Part Number | 3297 |

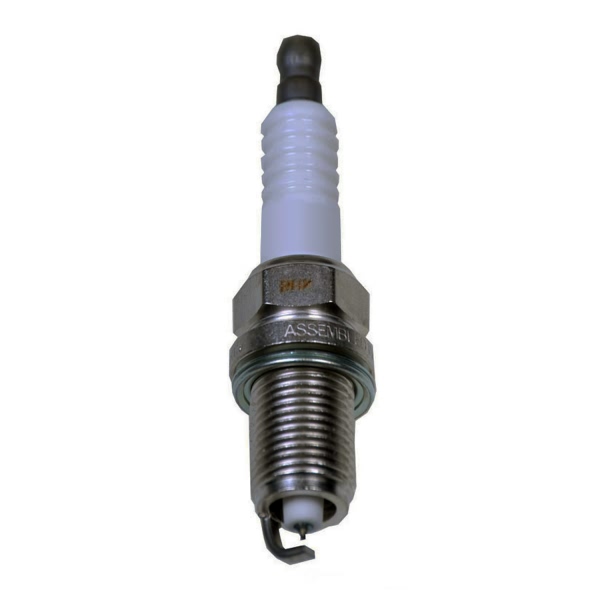

| Part Description | Iridium Long-Life Spark Plug |
| Center Electrode Core Material | Copper |
| Center Electrode Design | Fine Wire |
| Center Electrode Tip Material | 0.7mm Iridium or Iridium-Rhodium Alloy |
| Drive Size | 5/8 in |
| Gap - Factory Preset | 1.1 mm = 0.044 in |
| Ground Configuration | Standard |
| Ground Electrode Configuration | Single |
| Ground Electrode Core Material | Nickel |
| Ground Electrode Quantity | 1 |
| Ground Electrode Tip Design | Platinum Chip |
| Ground Electrode Tip Material | Platinum |
| Hex Size | 16.0 |
| Insulator Material | Ceramic |
| Insulator Type | Non-Projected |
| Internet Product Code (IPC) | 3D760693B6E |
| Item has MSDS (SDS) | N |
| Manufacturer Heat Range | 20 |
| Manufacturer Heat Range Number | 20 |
| MFG Brand Name | DENSO Auto Parts |
| MFG Model # (Series) | 3297 |
| MFG Name | DENSO |
| Pre-Gap Size | 0.044 |
| Reach | 19.00 |
| Resistance | 5000 |
| Resistor | Yes |
| Seat Style | Gasket |
| Seat Type | Flat |
| Short Style | No |
| Supplier Company Name | DENSO |
| Thread Diameter | 0.551 |
| Thread Size | 14mm |
| UPC | 042511032972 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006 Chrysler Crossfire | All Trims | 6 Cyl 3.2L |
| 1994-1995 Lexus ES300 | All Trims | 6 Cyl 3.0L |
| 2002-2003 Lexus ES300 | All Trims | 6 Cyl 3.0L |
| 2004-2006 Lexus ES330 | All Trims | 6 Cyl 3.3L |
| 1998-2000 Lexus GS400 | All Trims | 8 Cyl 4.0L |
| 2001-2007 Lexus GS430 | All Trims | 8 Cyl 4.3L |
| 2003-2009 Lexus GX470 | All Trims | 8 Cyl 4.7L |
| 2010-2012 Lexus HS250h | All Trims | 4 Cyl 2.4L |
| 1990-1994 Lexus LS400 | All Trims | 8 Cyl 4.0L |
| 1997-2000 Lexus LS400 | All Trims | 8 Cyl 4.0L |
