Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Denso |
| Part Number | 3426 |

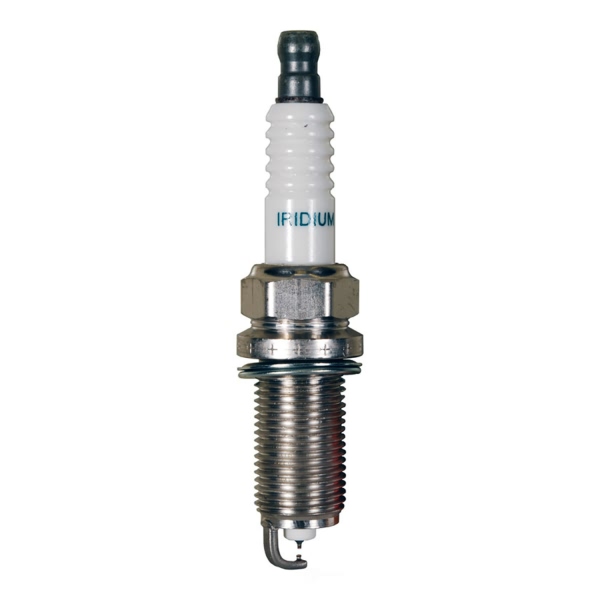

| Part Description | Iridium Long-Life Spark Plug |
| Center Electrode Design | Fine Wire |
| Center Electrode Tip Material | 0.55mm Iridium or Iridium-Rhodium Alloy |
| Drive Size | 13/16 in |
| Gap - Factory Preset | 1.1 mm = 0.044 in |
| Ground Configuration | Needle-to-Needle |
| Ground Electrode Configuration | Single |
| Ground Electrode Core Material | Nickel |
| Ground Electrode Design | Needle to Needle |
| Ground Electrode Quantity | 1 |
| Ground Electrode Tip Design | Platinum Needle |
| Ground Electrode Tip Material | 0.7mm Platinum |
| Hex Size | 16.0 |
| Insulator Material | Ceramic |
| Insulator Type | Non-Projected |
| Internet Product Code (IPC) | AF6B0F27F34 |
| Item has MSDS (SDS) | N |
| Manufacturer Heat Range | 20 |
| Manufacturer Heat Range Number | 20 |
| MFG Brand Name | DENSO Auto Parts |
| MFG Model # (Series) | 3426 |
| MFG Name | DENSO |
| Pre-Gap Size | 0.044 |
| Reach | 26.50 |
| Resistance | 5000 |
| Resistor | Yes |
| Seat Style | Gasket |
| Seat Type | Flat |
| Short Style | No |
| Supplier Company Name | DENSO |
| Thread Diameter | 0.551 |
| Thread Size | 14mm |
| UPC | 042511034266 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2013-2015 Acura ILX | Hybrid | 4 Cyl 1.5L |
| 2012-2015 Honda Civic | Hybrid | 4 Cyl 1.5L |
| 2010-2014 Honda Insight | All Trims | 4 Cyl 1.3L |
| 2007-2016 Lexus ES350 | All Trims | 6 Cyl 3.5L |
| 2007-2015 Lexus RX350 | All Trims | 6 Cyl 3.5L |
| 2010-2015 Lexus RX450h | All Trims | 6 Cyl 3.5L |
| 2013-2014 Subaru Legacy | All Trims | 6 Cyl 3.6L |
| 2013-2014 Subaru Outback | All Trims | 6 Cyl 3.6L |
| 2013-2014 Subaru Tribeca | All Trims | 6 Cyl 3.6L |
| 2005-2016 Toyota Avalon | All Trims | 6 Cyl 3.5L |
