Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Denso |
| Part Number | 3478 |

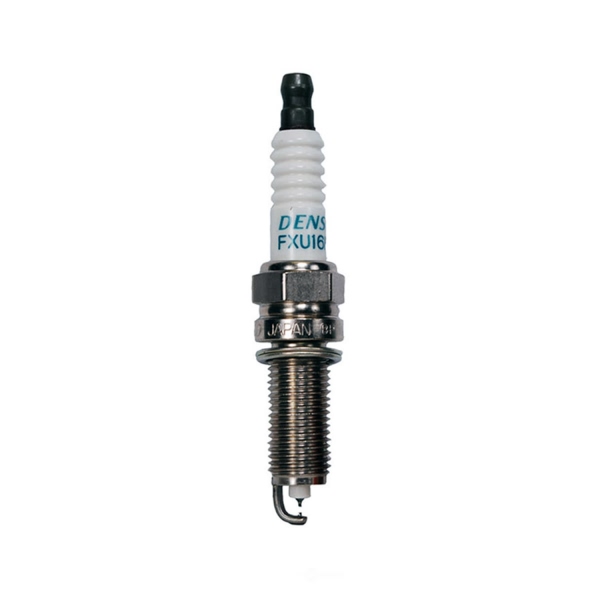

| Part Description | Iridium Long-Life Spark Plug |
| Center Electrode Design | Fine Wire |
| Center Electrode Tip Material | 0.55mm Iridium or Iridium-Rhodium Alloy |
| Drive Size | 13/16 in |
| Gap - Factory Preset | 1.1 mm = 0.044 in |
| Ground Configuration | Needle-to-Needle |
| Ground Electrode Configuration | Single |
| Ground Electrode Core Material | Nickel |
| Ground Electrode Design | Needle to Needle |
| Ground Electrode Quantity | 1 |
| Ground Electrode Tip Design | Platinum Needle |
| Ground Electrode Tip Material | 0.7mm Platinum |
| Hex Size | 16.0 |
| Insulator Material | Ceramic |
| Insulator Type | Non-Projected |
| Internet Product Code (IPC) | FC045D8BADA |
| Item has MSDS (SDS) | N |
| Manufacturer Heat Range | 16 |
| Manufacturer Heat Range Number | 16 |
| MFG Brand Name | DENSO Auto Parts |
| MFG Model # (Series) | 3478 |
| MFG Name | DENSO |
| Pre-Gap Size | 0.044 |
| Reach | 26.50 |
| Resistance | 5000 |
| Resistor | Yes |
| Seat Style | Gasket |
| Seat Type | Flat |
| Short Style | No |
| Supplier Company Name | DENSO |
| Thread Diameter | 0.472 |
| Thread Size | 12mm |
| UPC | 042511034785 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2013-2017 Hyundai Santa Fe Sport | All Trims | 4 Cyl 2.4L |
| 2011-2014 Hyundai Sonata | All Trims | 4 Cyl 2.4L |
| 2011-2016 Kia Optima | All Trims | 4 Cyl 2.4L |
| 2012-2017 Kia Sorento | All Trims | 4 Cyl 2.4L |
