Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Denso |
| Part Number | 3112 |

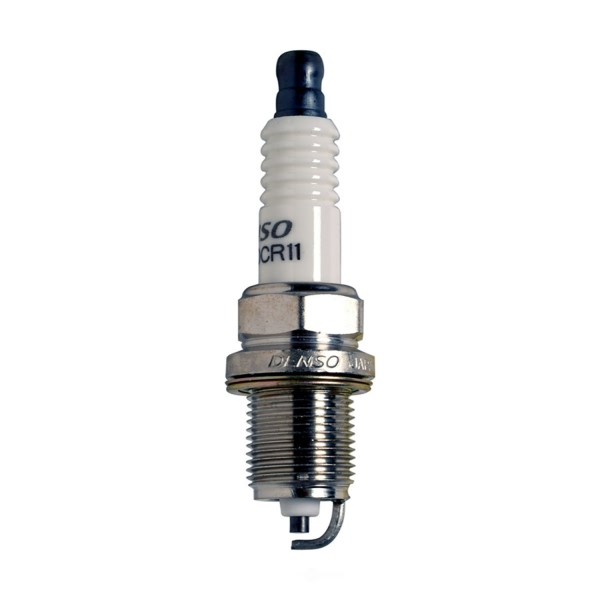

| Part Description | Spark Plug Standard |
| Center Electrode Core Material | Copper |
| Center Electrode Design | Standard / Regular |
| Gap - Factory Preset | 1.1 mm = 0.044 in |
| Ground Configuration | Standard |
| Ground Electrode Configuration | Single |
| Ground Electrode Core Material | Nickel |
| Ground Electrode Quantity | 1 |
| Ground Electrode Tip Design | Standard |
| Ground Electrode Tip Material | Nickel Alloy |
| Hex Size | 16.0 |
| Insulator Material | Ceramic |
| Insulator Type | Non-Projected |
| Internet Product Code (IPC) | 45358AEB315 |
| Item has MSDS (SDS) | N |
| Manufacturer Heat Range | 20 |
| Manufacturer Heat Range Number | 20 |
| MFG Brand Name | DENSO Auto Parts |
| MFG Model # (Series) | 3112 |
| MFG Name | DENSO |
| Pre-Gap Size | 0.044 |
| Reach | 19.00 |
| Resistance | 5000 |
| Resistor | Yes |
| Seat Style | Gasket |
| Seat Type | Flat |
| Short Style | No |
| Supplier Company Name | DENSO |
| Thread Diameter | 0.551 |
| Thread Size | 14mm |
| UPC | 042511031128 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1988-1989 Mazda 626 | All Trims | 4 Cyl 2.2L |
| 1988-1989 Mazda 929 | All Trims | 6 Cyl 3.0L |
| 1989 Mazda B2600 | All Trims | 4 Cyl 2.6L |
| 1989-1990 Mazda MPV | All Trims | 4 Cyl 2.6L |
| 1989-1990 Mazda MPV | All Trims | 6 Cyl 3.0L |
| 1988-1989 Mazda MX-6 | All Trims | 4 Cyl 2.2L |
