Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 902-5863 |

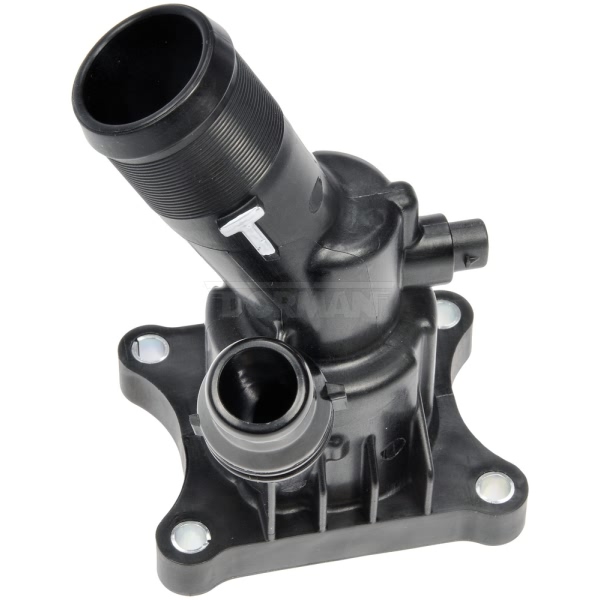

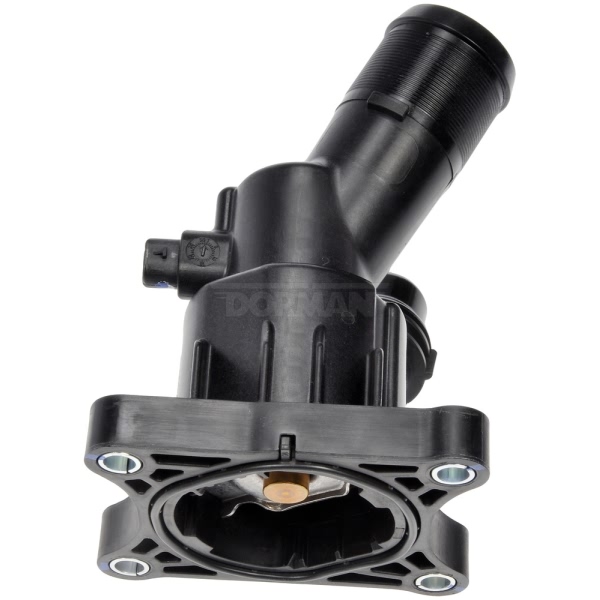

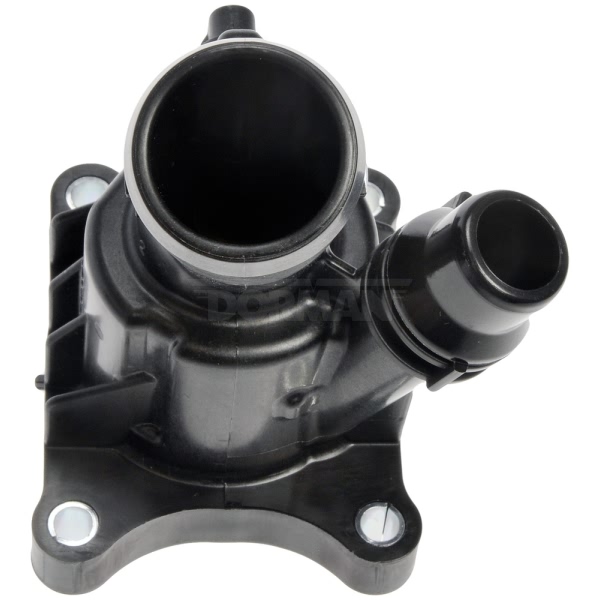

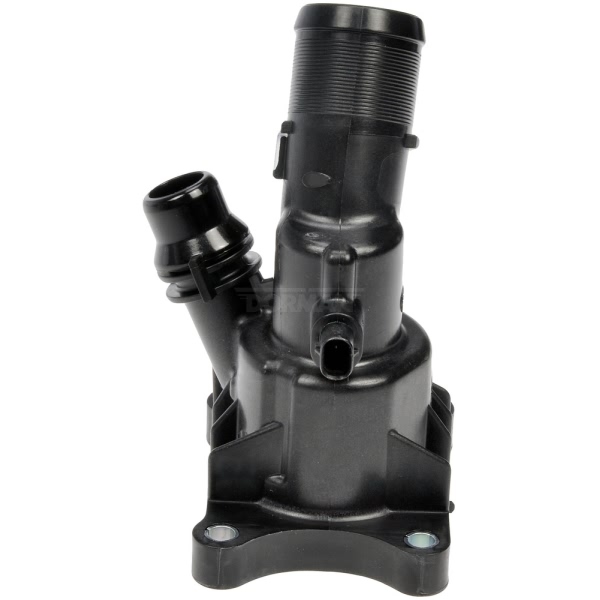

| Part Description | Engine Coolant Thermostat Housing Assembly |
| Bleeder Hole | No |
| Bolt Hole Center To Bolt Hole Center | 1.934"; 2.567"; 1.815"; 2.571 " |
| Bolt Hole Quantity | 4 |
| Color/Finish | Black |
| Flange Length | 3.423" |
| Flange Thickness | 0.517" |
| Flange Width | 2.708" |
| Gasket Type | Standard |
| Grade Type | Regular |
| Inside Diameter | 0.616" |
| Material | Plastic |
| Mounting Hardware Included | No |
| UPC | 889245254023 |
| OE Part Number | 31439968, 31474989, 31293912, 31686560 |
| Outlet Port Quantity | 1 |
| Thermostat Opening Temperature (F) | 221 Degrees |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2015-2017 Volvo S60 | All Trims | 4 Cyl 2.0L |
| 2017 Volvo S60 Cross Country | All Trims | 4 Cyl 2.0L |
| 2015-2016 Volvo S80 | All Trims | 4 Cyl 2.0L |
| 2015-2017 Volvo V60 | All Trims | 4 Cyl 2.0L |
| 2017 Volvo V60 Cross Country | All Trims | 4 Cyl 2.0L |
| 2017 Volvo V90 Cross Country | All Trims | 4 Cyl 2.0L |
| 2015-2017 Volvo XC60 | All Trims | 4 Cyl 2.0L |
| 2016 Volvo XC70 | All Trims | 4 Cyl 2.0L |
| 2016-2018 Volvo XC90 | All Trims | 4 Cyl 2.0L |
