Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 902-5864 |

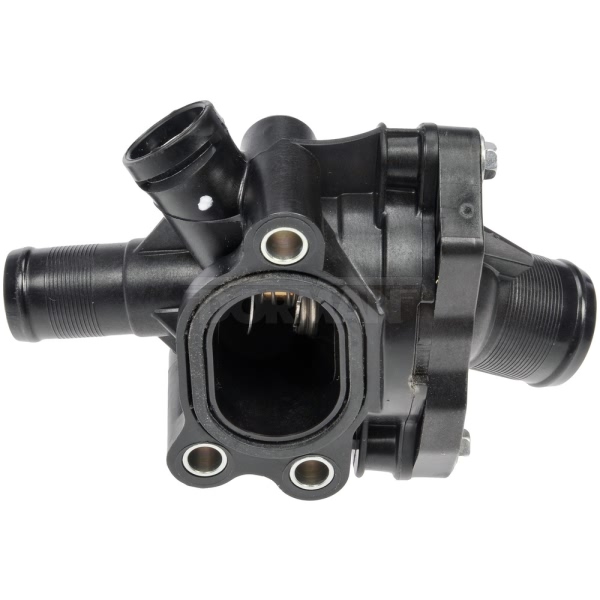

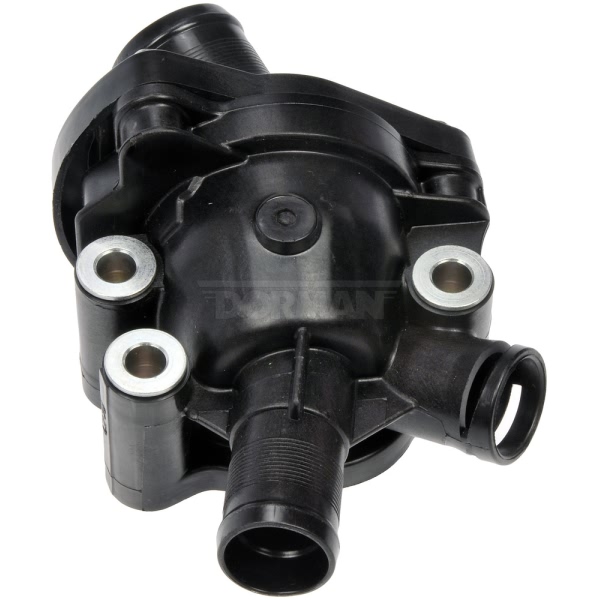

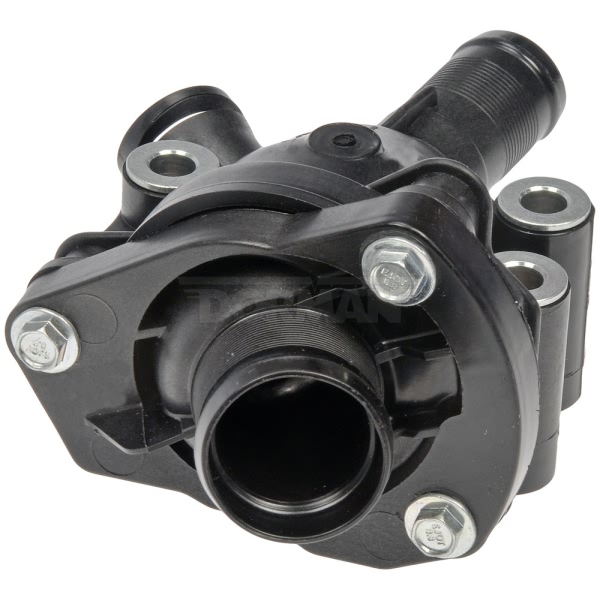

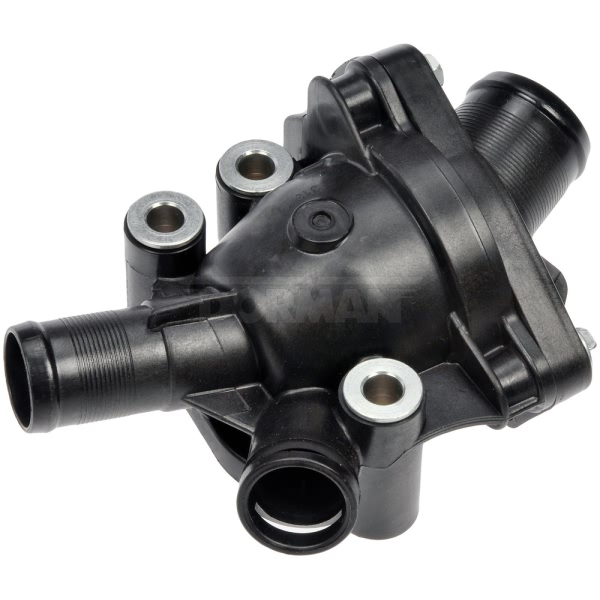

| Part Description | Engine Coolant Thermostat Housing Assembly |
| Bleeder Hole | No |
| Bolt Hole Center To Bolt Hole Center | 1.025"; 1"; 2.7" |
| Bolt Hole Quantity | 3 |
| Color/Finish | Black |
| Flange Length | 0.71" |
| Flange Thickness | 1.6" |
| Flange Width | 0.71" |
| Gasket Type | Standard |
| Grade Type | Regular |
| Inside Diameter | 0.72"; 0.77" |
| Material | Plastic |
| Mounting Hardware Included | No |
| UPC | 889245254047 |
| OE Part Number | 31319606, 31411151, 30650753 |
| Outlet Port Quantity | 1 |
| Thermostat Opening Temperature (F) | 194 Degrees |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2008-2013 Volvo C30 | All Trims | 5 Cyl 2.5L |
| 2008-2013 Volvo C70 | All Trims | 5 Cyl 2.5L |
| 2004-2010 Volvo S40 | All Trims | 5 Cyl 2.4L |
| 2004-2011 Volvo S40 | All Trims | 5 Cyl 2.5L |
| 2012-2015 Volvo S60 | All Trims | 5 Cyl 2.5L |
| 2016 Volvo S60 Cross Country | All Trims | 5 Cyl 2.5L |
| 2005-2011 Volvo V50 | All Trims | 5 Cyl 2.5L |
| 2015-2016 Volvo V60 | All Trims | 5 Cyl 2.5L |
| 2015-2016 Volvo V60 Cross Country | All Trims | 5 Cyl 2.5L |
| 2015-2016 Volvo XC60 | All Trims | 5 Cyl 2.5L |
