Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 902-817 |

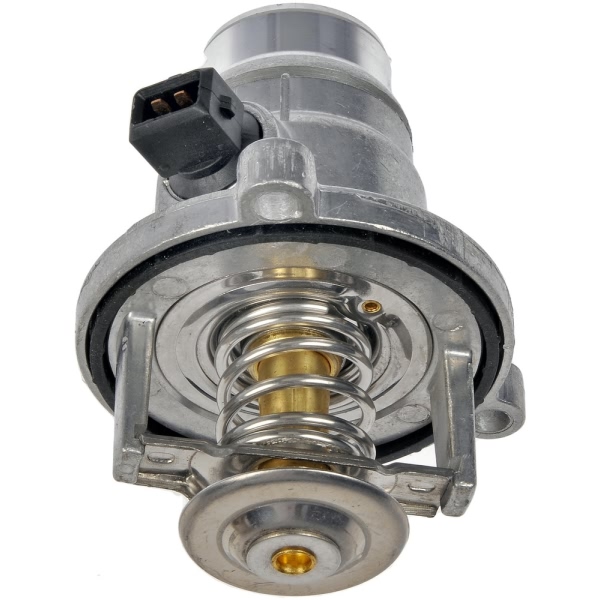

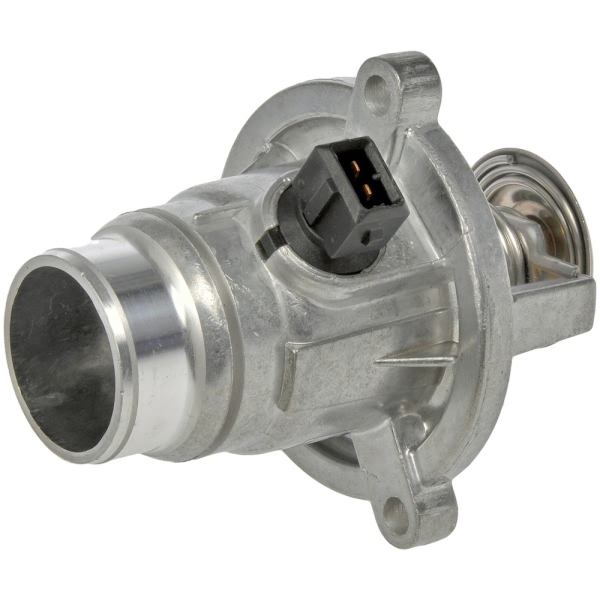

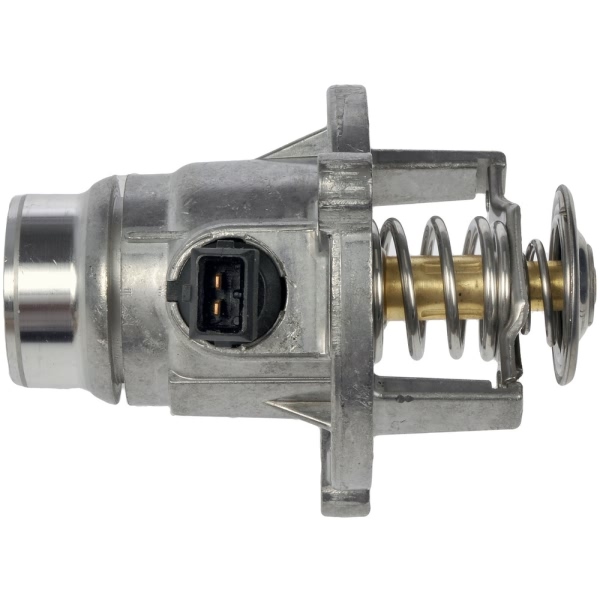

| Part Description | Engine Coolant Thermostat Housing Assembly |
| Bleeder Hole | No |
| Bolt Hole Center To Bolt Hole Center | 3.13"; 3.127"; 3.1" |
| Bolt Hole Quantity | 3 |
| Color/Finish | Natural |
| Flange Length | 3.54" |
| Flange Thickness | 0.438" |
| Flange Width | 3.55" |
| Gasket Type | Gasket |
| Grade Type | Regular |
| Inside Diameter | 1.27" |
| Material | Aluminum |
| Mounting Hardware Included | No |
| UPC | 037495548038 |
| OE Part Number | 11537586885 |
| Outlet Port Quantity | 1 |
| Thermostat Opening Temperature (F) | 221 Degrees |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2010 BMW 525i | All Trims | 8 Cyl 4.8L |
| 2011 BMW 528i | All Trims | 8 Cyl 4.4L |
| 2012-2013 BMW 530i | All Trims | 8 Cyl 4.4L |
| 2010-2013 BMW 535i | All Trims | 8 Cyl 4.4L |
| 2013 BMW 535i GT | All Trims | 8 Cyl 4.4L |
| 2004-2006 BMW 545i | All Trims | 8 Cyl 4.4L |
| 2006-2010 BMW 550i | All Trims | 8 Cyl 4.8L |
| 2011-2016 BMW 550i | All Trims | 8 Cyl 4.4L |
| 2010-2015 BMW 550i GT | All Trims | 8 Cyl 4.4L |
| 2010-2017 BMW 550i GT xDrive | All Trims | 8 Cyl 4.4L |
