Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 902-1120 |

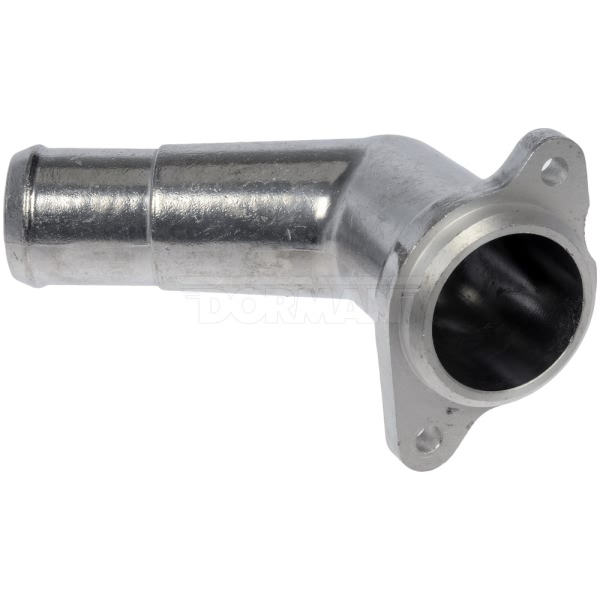

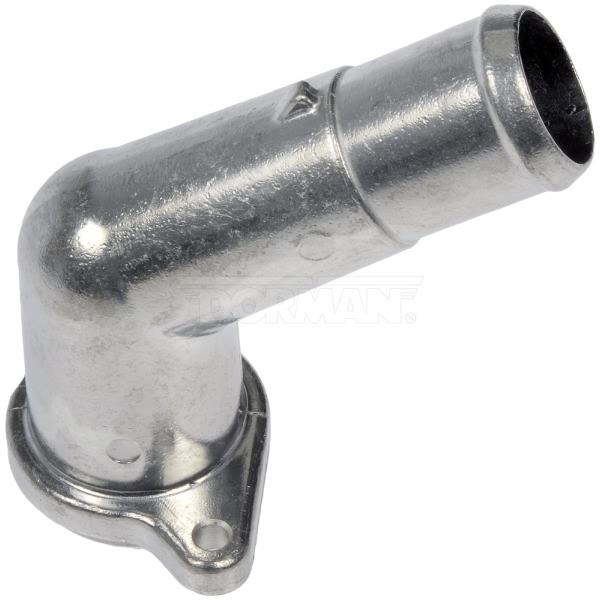

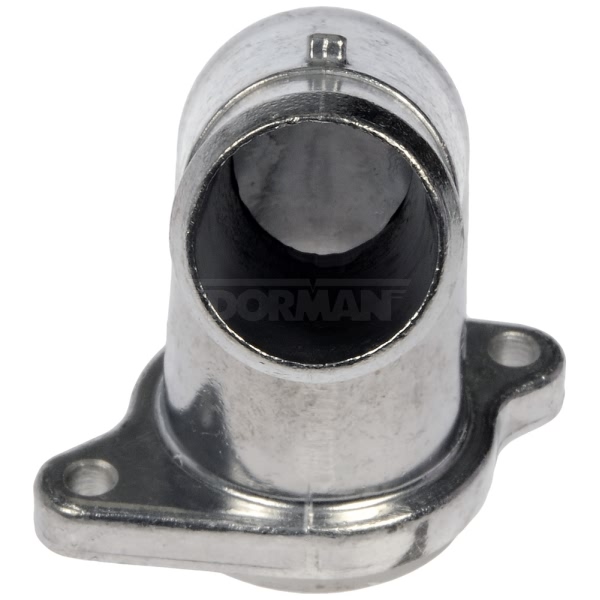

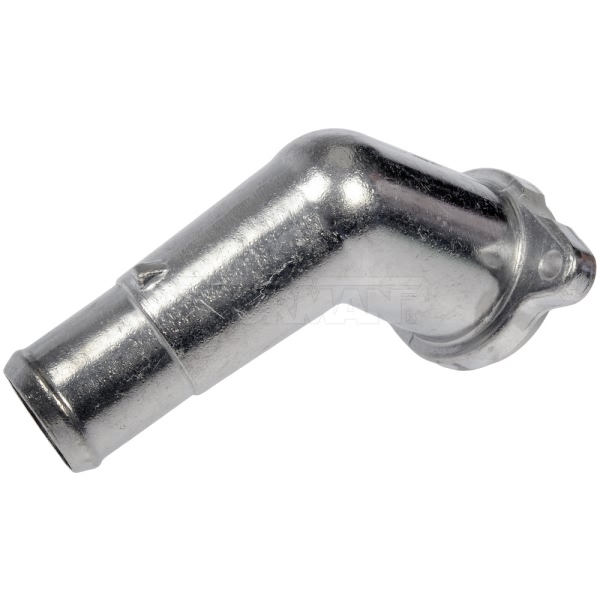

| Part Description | Engine Coolant Thermostat Housing |
| Air Vent (Bleeder Valve) | No |
| Bolt Hole Center To Bolt Hole Center | 1.616" |
| Bolt Hole Diameter | 0.355" |
| Bolt Hole Quantity | 2 |
| Bolts Included | No |
| Color/Finish | Black |
| Flange Thickness | 0.325" |
| Height | 5" |
| Housing Neck Angle (°) | 20 Degree |
| Inlet Port Diameter | 1.27" |
| Material | Metal |
| Mount Hole Diameter | 0.285" |
| Mount Hole Quantity | 2 |
| O-Rings Included | No |
| UPC | 889245253002 |
| OE Part Number | AL3Z8592A |
| Outlet Diameter | 1.68" |
| Thermostat Included | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2017-2019 Ford E-350 Super Duty | All Trims | 8 Cyl 6.2L |
| 2010-2014 Ford F-150 | All Trims | 8 Cyl 6.2L |
| 2011-2019 Ford F-250 Super Duty | All Trims | 8 Cyl 6.2L |
| 2011-2016 Ford F-350 | All Trims | 8 Cyl 6.2L |
| 2011-2019 Ford F-350 Super Duty | All Trims | 8 Cyl 6.2L |
| 2011-2014 Ford Lobo | All Trims | 8 Cyl 6.2L |
