Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 902-5136 |

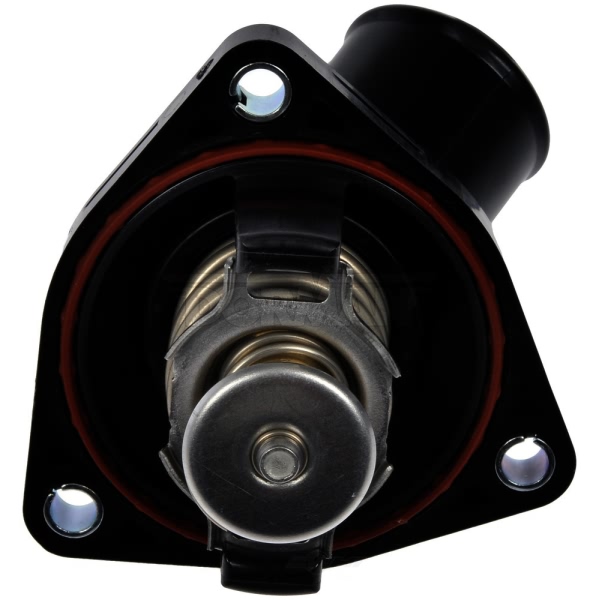

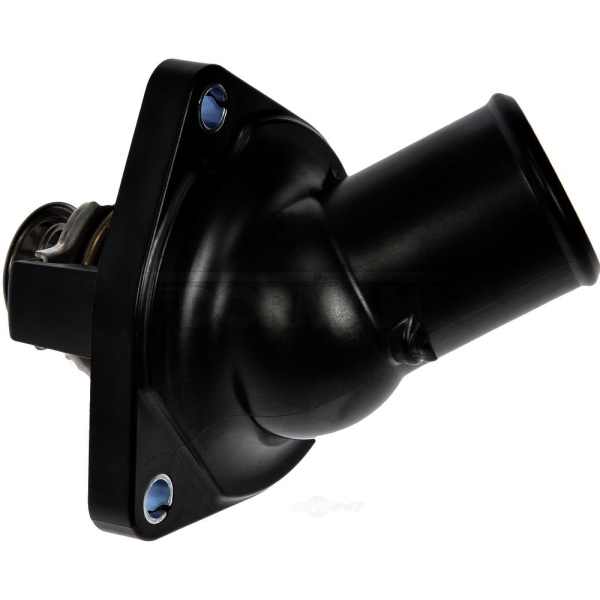

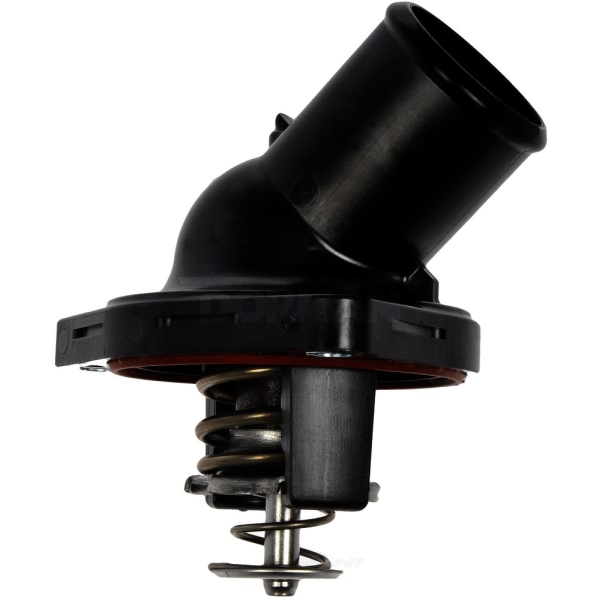

| Part Description | Engine Coolant Thermostat Housing |
| Bleeder Hole | No |
| Bolt Hole Center To Bolt Hole Center | 3 |
| Bolt Hole Quantity | 3 |
| Color/Finish | Black |
| Flange Length | 3.5" |
| Flange Thickness | 0.3" |
| Flange Width | 3" |
| Gasket Type | Gasket |
| Grade Type | Regular |
| Inside Diameter | 1.125" |
| Material | Plastic |
| Mounting Hardware Included | No |
| UPC | 885484679610 |
| OE Part Number | 160310S010, 1603138010 |
| Outlet Port Quantity | 1 |
| Thermostat Opening Temperature (F) | 180 Degrees |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2016-2019 Lexus GS F | All Trims | 8 Cyl 5.0L |
| 2008-2011 Lexus GS460 | All Trims | 8 Cyl 4.6L |
| 2010-2019 Lexus GX460 | All Trims | 8 Cyl 4.6L |
| 2008-2014 Lexus IS F | All Trims | 8 Cyl 5.0L |
| 2018-2019 Lexus LC500 | All Trims | 8 Cyl 5.0L |
| 2018-2019 Lexus LC500h | All Trims | 6 Cyl 3.5L |
| 2007-2017 Lexus LS460 | All Trims | 8 Cyl 4.6L |
| 2008-2016 Lexus LS600h | All Trims | 8 Cyl 5.0L |
| 2008-2011 Lexus LX570 | All Trims | 8 Cyl 5.7L |
| 2013-2019 Lexus LX570 | All Trims | 8 Cyl 5.7L |
