Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 902-5820 |

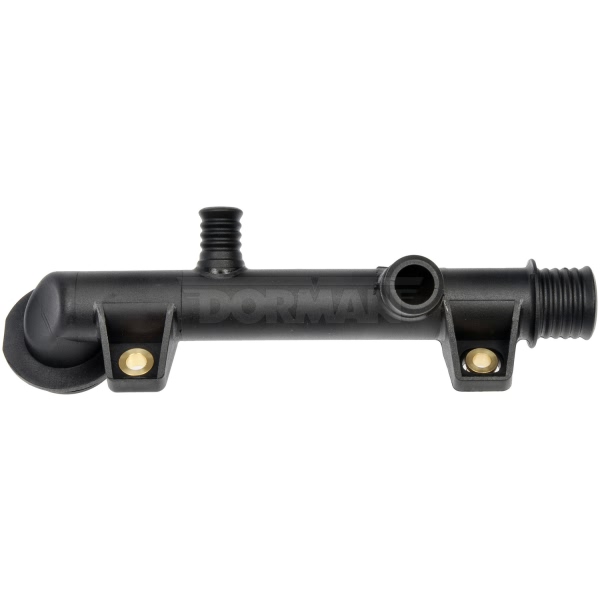

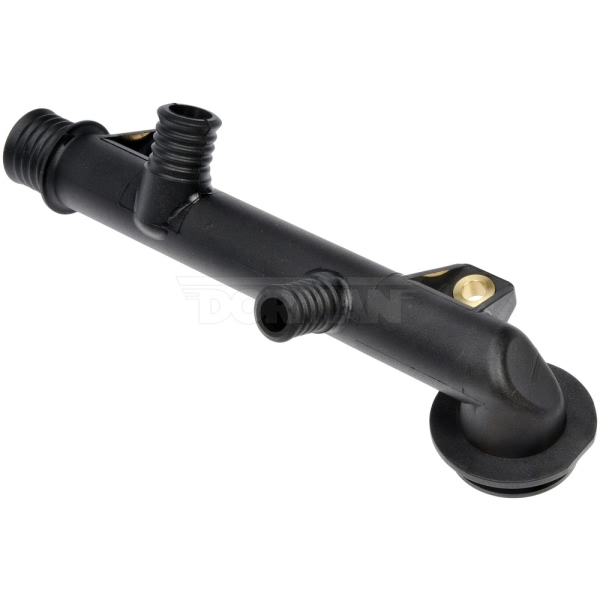

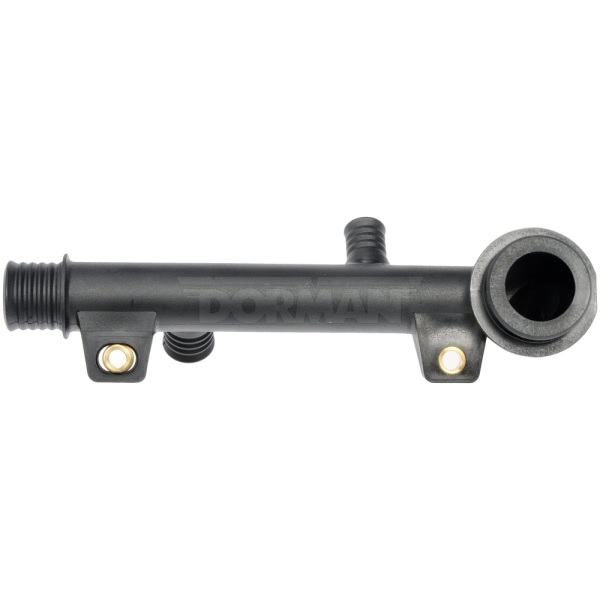

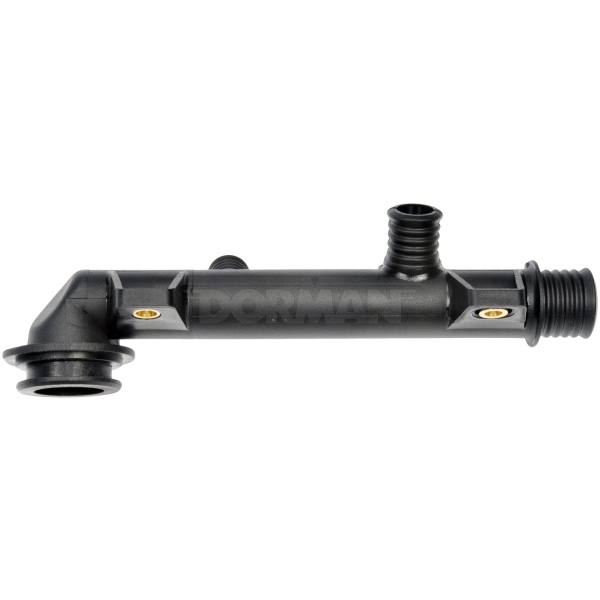

| Part Description | Engine Coolant Water Pipe |
| Coolant Hose Heat Shield Included | No Heat Shield Required |
| Coolant Hose Protective Sleeve Included | No Protective Sleeve Required |
| Coolant Hose Type | Single I.D. (Inside Diameter) |
| End 1 Inside Diameter | 1.6 in |
| End 1 Type | Press Fit |
| End 2 Inside Diameter | 0.8 in |
| End 2 Type | Hose |
| Finish | Black |
| Gasket Or Seal Required | No |
| Hose End (1) Outside Diameter (In) | 2 In. |
| Hose End (2) Outside Diameter (In) | 1.4 In. |
| Material | Plastic |
| Maximum Working Pressure (psi) | 50 PSI |
| Mount Bracket Hole Diameter | 0.25 in |
| Mount Bracket Quantity | 2 |
| Mounting Bracket Included | Yes |
| UPC | 889245252784 |
| OE Part Number | 11531714738 |
| Shape | Single Pipe |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1991-1995 BMW 318i | All Trims | 4 Cyl 1.8L |
| 1996-1998 BMW 318i | All Trims | 4 Cyl 1.9L |
| 1997 BMW 318i | All Trims | All Engines |
| 1991-1995 BMW 318is | All Trims | 4 Cyl 1.8L |
| 1996-1997 BMW 318is | All Trims | 4 Cyl 1.9L |
| 1995 BMW 318ti | All Trims | 4 Cyl 1.8L |
| 1996-1999 BMW 318ti | All Trims | 4 Cyl 1.9L |
| 1996-1998 BMW Z3 | All Trims | 4 Cyl 1.9L |
